S4359249

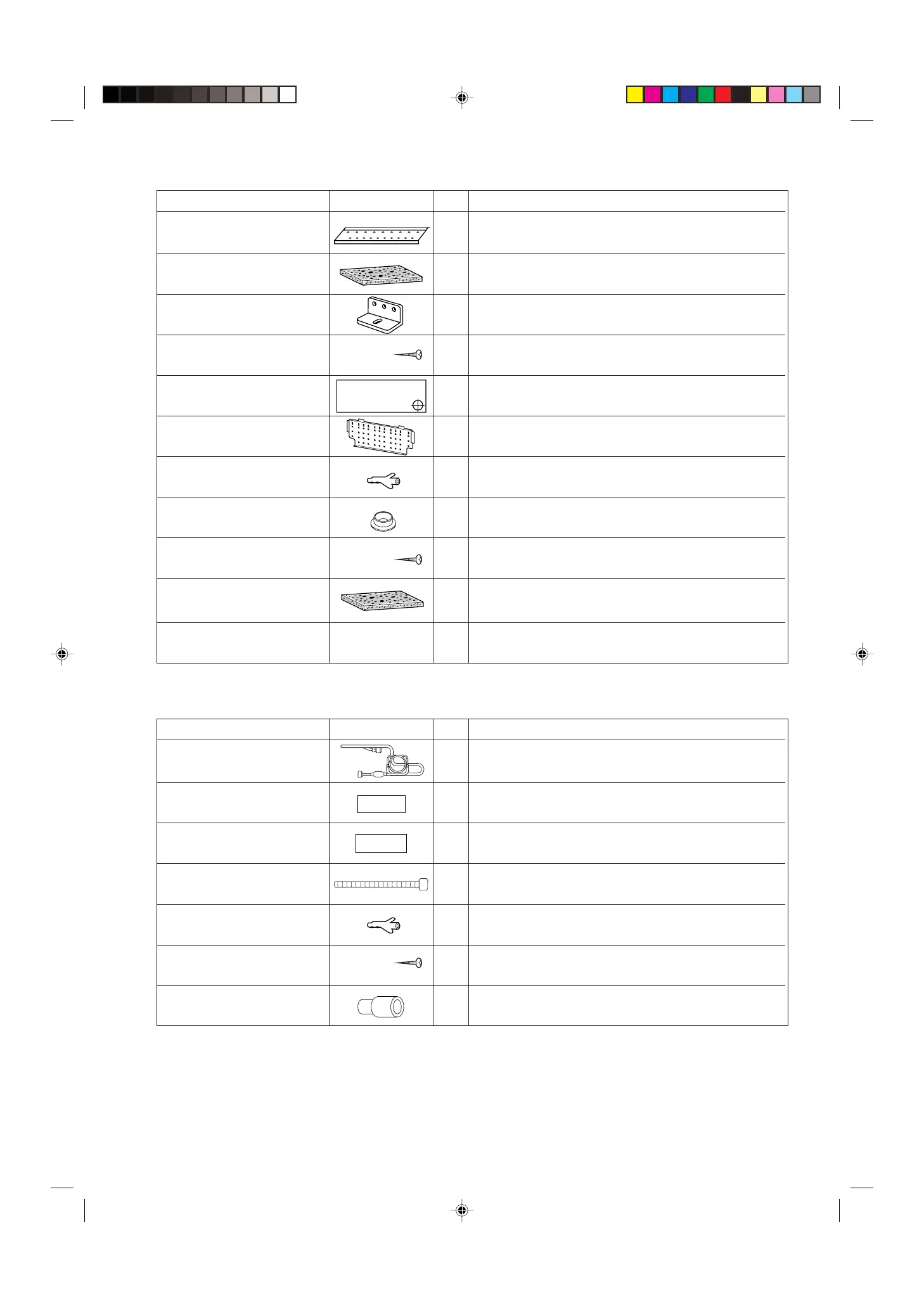

Table 1-3-1 KS (Wall-Mounted except KS2432A)

For supporting the indoor unit

For insulation of the tubing of the indoor unit

For securing the indoor unit

For fixing the wall fixture

For determining the place where the indoor unit is

installed

For supporting the indoor unit

For fixing the wall fixture

For improved tubing appearance

For fixing the wall fixture

For insulation of the tubing of the indoor unit

Truss-head

Phillips

4 × 16 mm (5/8")

Truss-head

Phillips

4 × 25 mm (1")

Part Name Figure Q’ty Remarks

Wall fixture *1 1

Insulator *1 1

Mounting plate *1 1

Tapping screw *1 20

Full-scale diagram 1

Wall fixture *2 1

Rawl plug *2 10

Cover *2 1

Tapping screw *2 10

Insulator *2 1

Owner's manual 1

* 1 KS3032, KS3632 only

* 2 KS2432 only

Table 1-3-2 KS (Wall-Mounted KS2432A only)

Truss-head

Phillips

5/32 × 5/8" (4 × 16 mm)

Part Name Figure Q’ty Remarks

Tube Assy 1

Packing A 1

Packing B 1

Clamp 2

Rawl plug 12

Tapping screw 12

Joint drain 1

For the rear-right tubing

For fixing the tube assy when rear-right tubing

For fixing the wall fixture
