Service Manual SM CE14A2-C
4
11. CABINET PARTS LIST

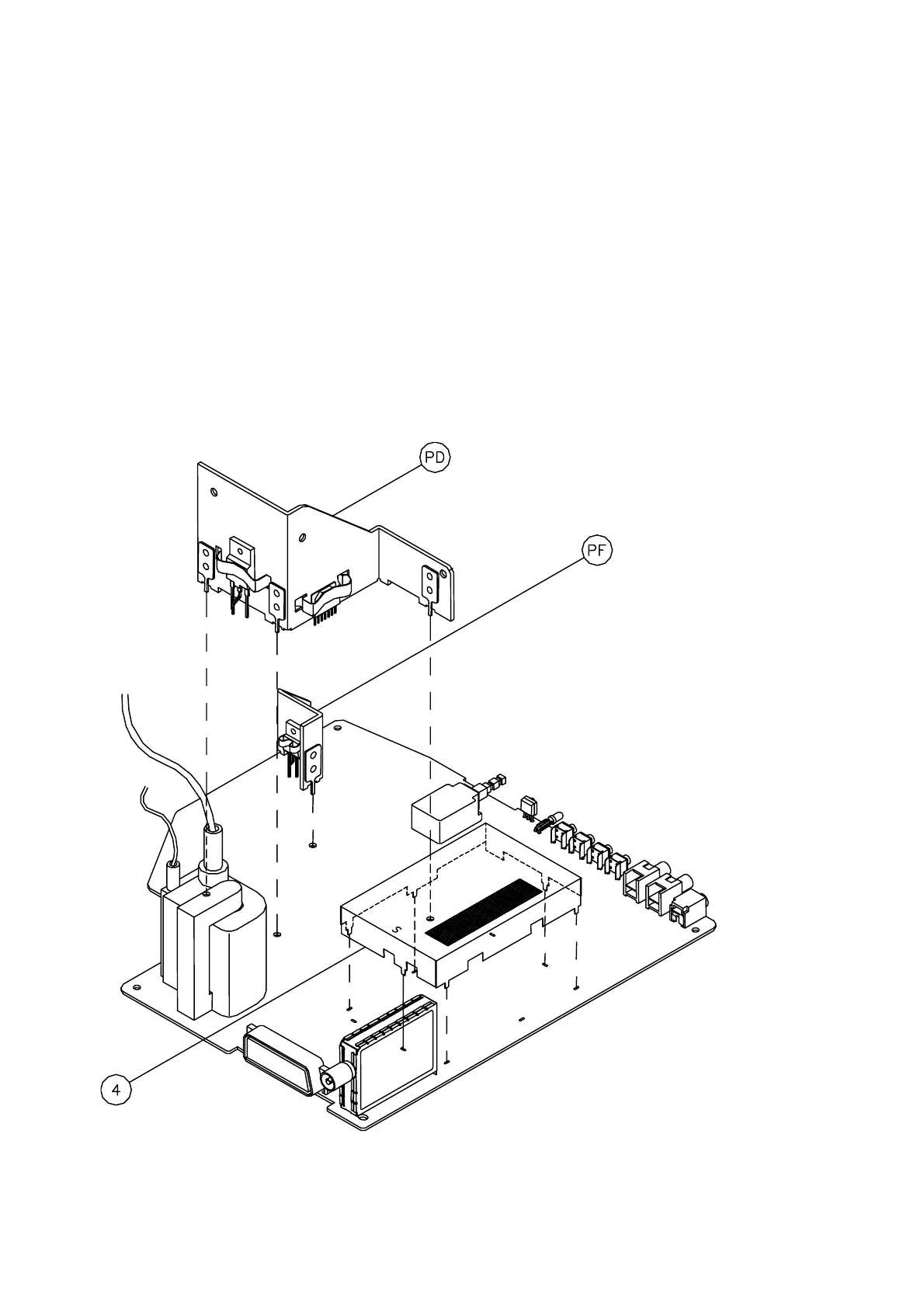

11.1. CABINET PARTS LIST OF CHASSIS CE14A2-C Y CE14A2-E
Ref. No. Part No. Description
YG4
!
0080112907 Comp. side IF shield EC7-A
Assy PD (Deflection)
IC701 0360516207 LA7840L
Q650 0360308902 2SD2599
YR701 0200225407 Heatsink Deflection EC7-A
YR702 0010106300 Spring CLIP 56379
YR703 0010106300 Spring CLIP 56379
Assy PF(Power supply)
Q800 0360311005 MOS 2SK3067 600V/2A
YR800 0200225506 Heatsink SOURCE EC7-A
YR801 0010110401 Spring CLIP 56363
To Next Page
