6
4 × 15/32 dia. hole
Air intake
Air discharge
23-15/16 2-3/8
29-17/32
Air
intake
Check port
2-1/4
11-1/32
20-7/8
21/32
2-23/32 2-3/8
1/4" narrow tubing
service valve
1/2" wide tubing
service valve
10-23/32
11-7/8
Dimension: in.

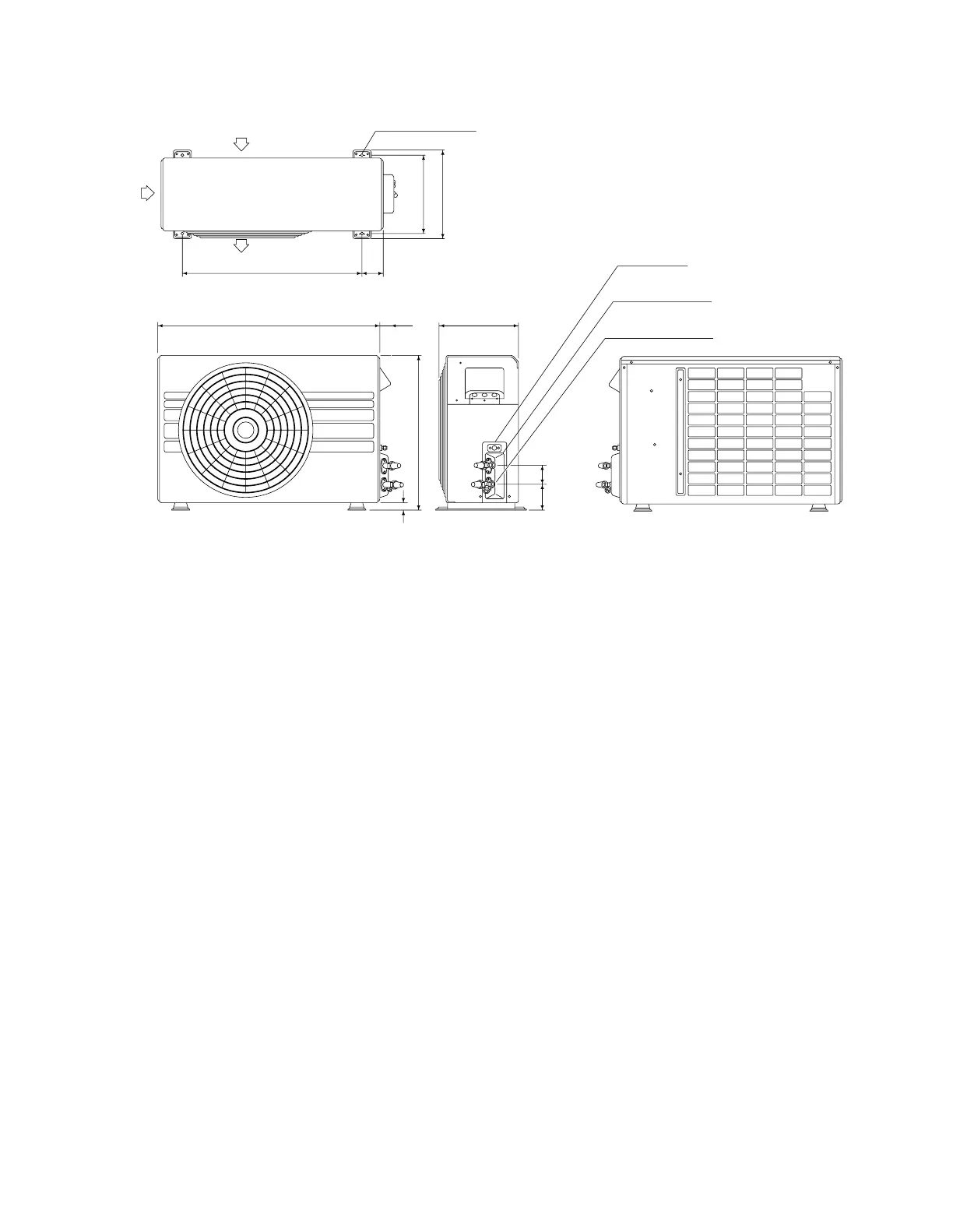

Outdoor unit CH1232
