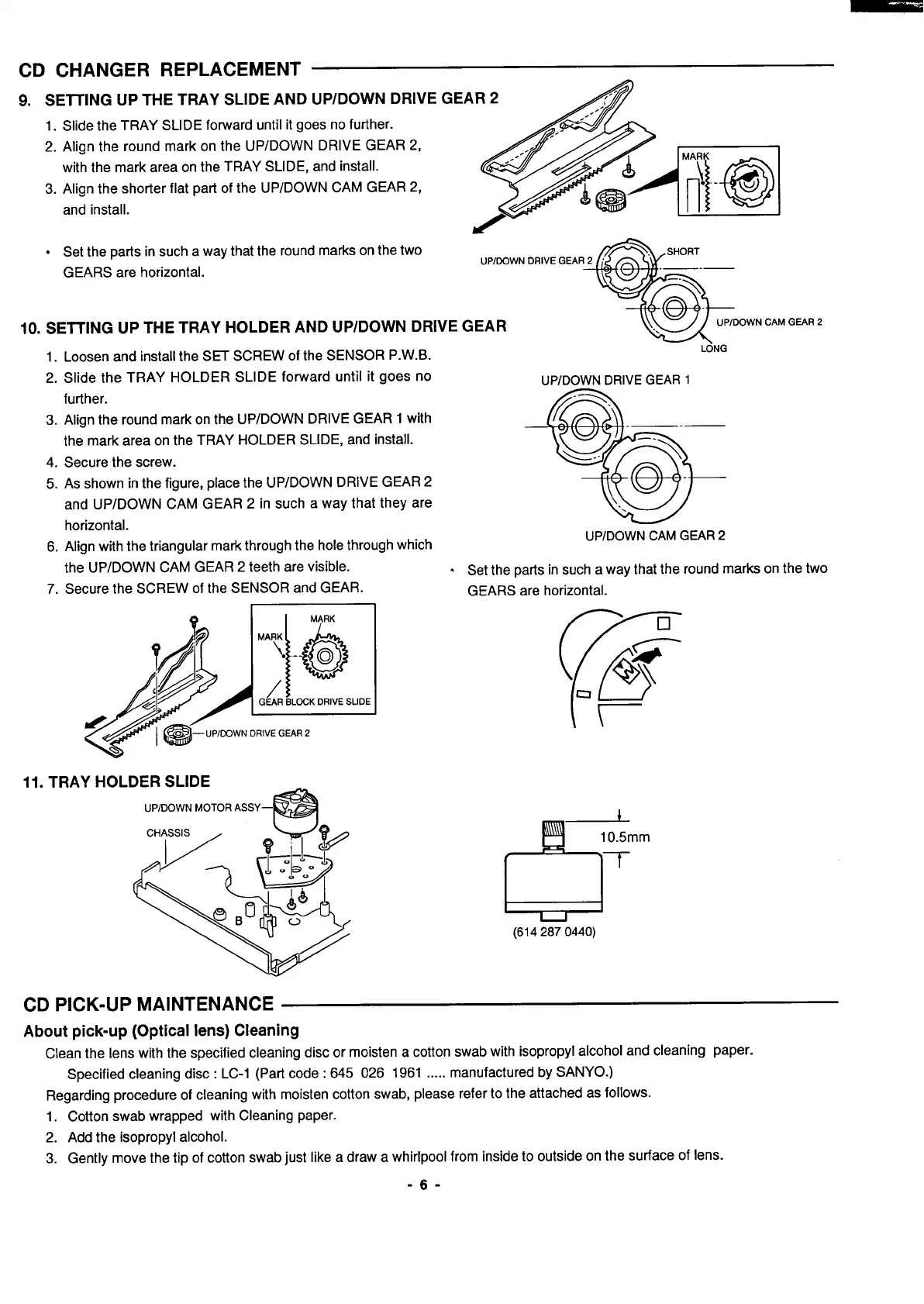

CD CHANGER REPLACEMENT
9. sET-rlNG uPTHETRAY sLIDEAND uP/DowNDRlvEGEAR2
A
,..
,.’
1.
2.
3.
.
Slide the TRAY SLIDE forward until it goes no further.
Align the round mark on the UP/DOWN DRIVE GEAR 2,
with the mark area on the TRAY SLIDE, and install.
Align the shorter flat part of the UP/DOWN CAM GEAR 2,
and install.
/*~M
Set the parts in such a way that the round marks on the two
GEARS are horizontal.
.— .—
10. SETTING UP THE TRAY HOLDER AND UP/DOWN DRIVE GEAR
w
UP/OOWN CAM GEAR 2
1.
Loosen and install the SET SCREW of the SENSOR P.W.B.
LONG
2. Slide the TRAY HOLDER SLIDE forward until it goes no
further.
3. Align the round mark on the UP/DOWN DRIVE GEAR 1 with
the mark area on the TRAY HOLDER SLIDE, and install.
4. Secure the screw.
5. As shown in the figure, place the UP/DOWN DRIVE GEAR 2
and UP/DOWN CAM GEAR 2 in such a way that they are
horizontal.
6. Align with the triangular mark through the hole through which
the UP/DOWN CAM GEAR 2 teeth are visible.
.
7. Secure the SCREW of the SENSOR and GEAR.
?
MARK
d
~K
?~
,?
MARK
\ -- ~
<
&
/
)
GEAR BLOCK DRIVE SLIDE
/’
~
‘1G%”
uP/COWN DRIVE GEAR 2
11. TRAY HOLDER SLIDE
UP/DOWN MOTOR ASSY—
CHASSIS
CD PICK-UP MAINTENANCE
UP/DOWN DRIVE GEAR 1
UP/DOWN CAM GEAR 2
Set the parts in such away that the round marks on the two
GEARS are horizontal.
d’
10.5mm
--f
(614 287 0440)
About pick-up (Optical lens) Cleaning
Clean the lens with the specified cleaning disc or moisten a cotton swab with isopropyl alcohol and cleaning paper.
Specified cleaning disc: LC-I (Part code: 645 026 1961 ..... manufactured by SANYO.)
Regarding procedure of cleaning with moisten cotton swab, please refer to the attached as follows.
1. Cotton swab wrapped with Cleaning paper.
2. Add the isopropyl alcohol.
3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.
