Sanyo DC-DA70 - Wiring Diagrams; CD & Front Wiring

- 38 -

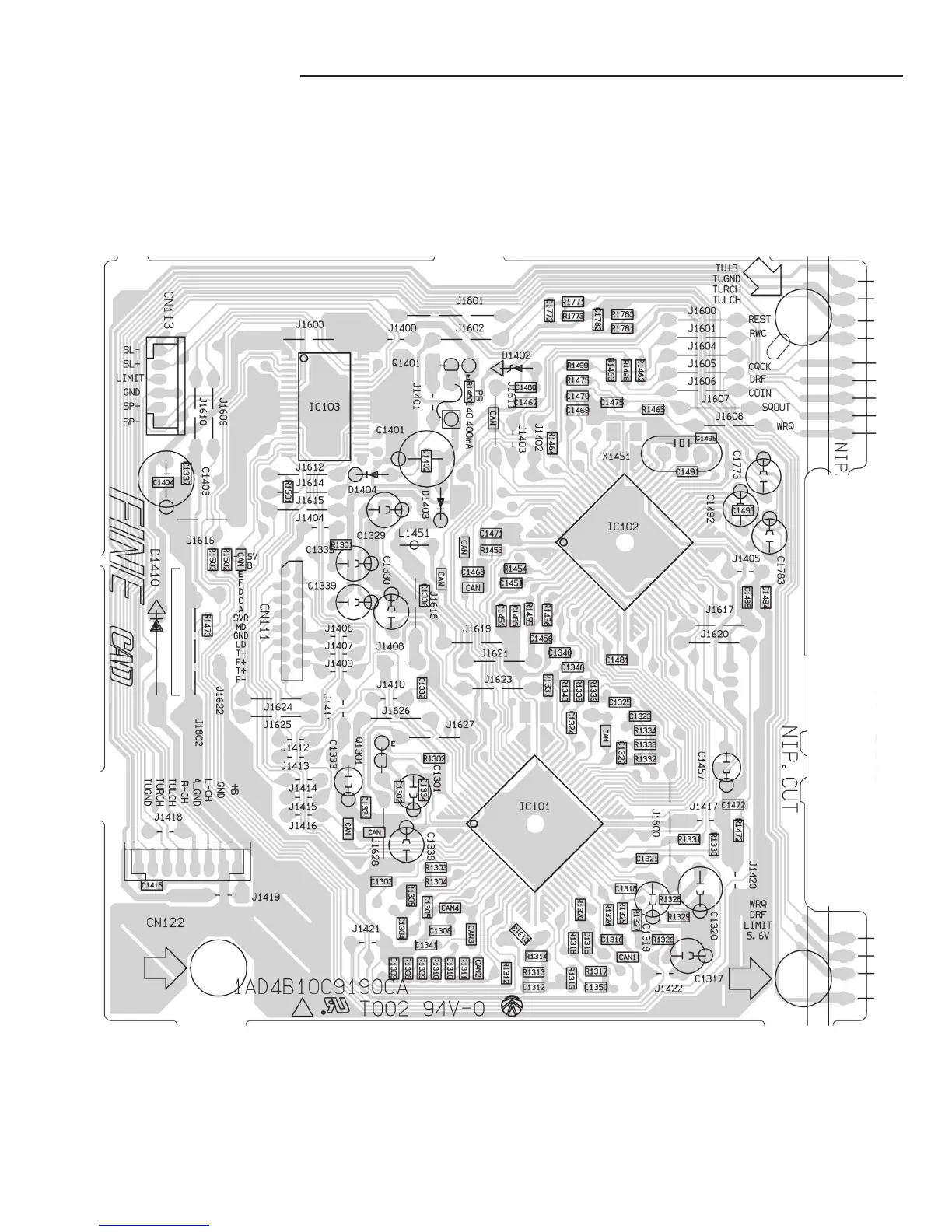

WIRING DIAGRAM (CD)
IC103 is changed from the units with serial number M0403001(AU) , M0402001(PA).
This wiring diagram is for units with smaller serial number than M0403001(AU) , M0402001(PA) .
Please refer to the wiring diagram on the page 36-37 for the units with the serial number M0403001(AU) , M0402001(PA) onward.
