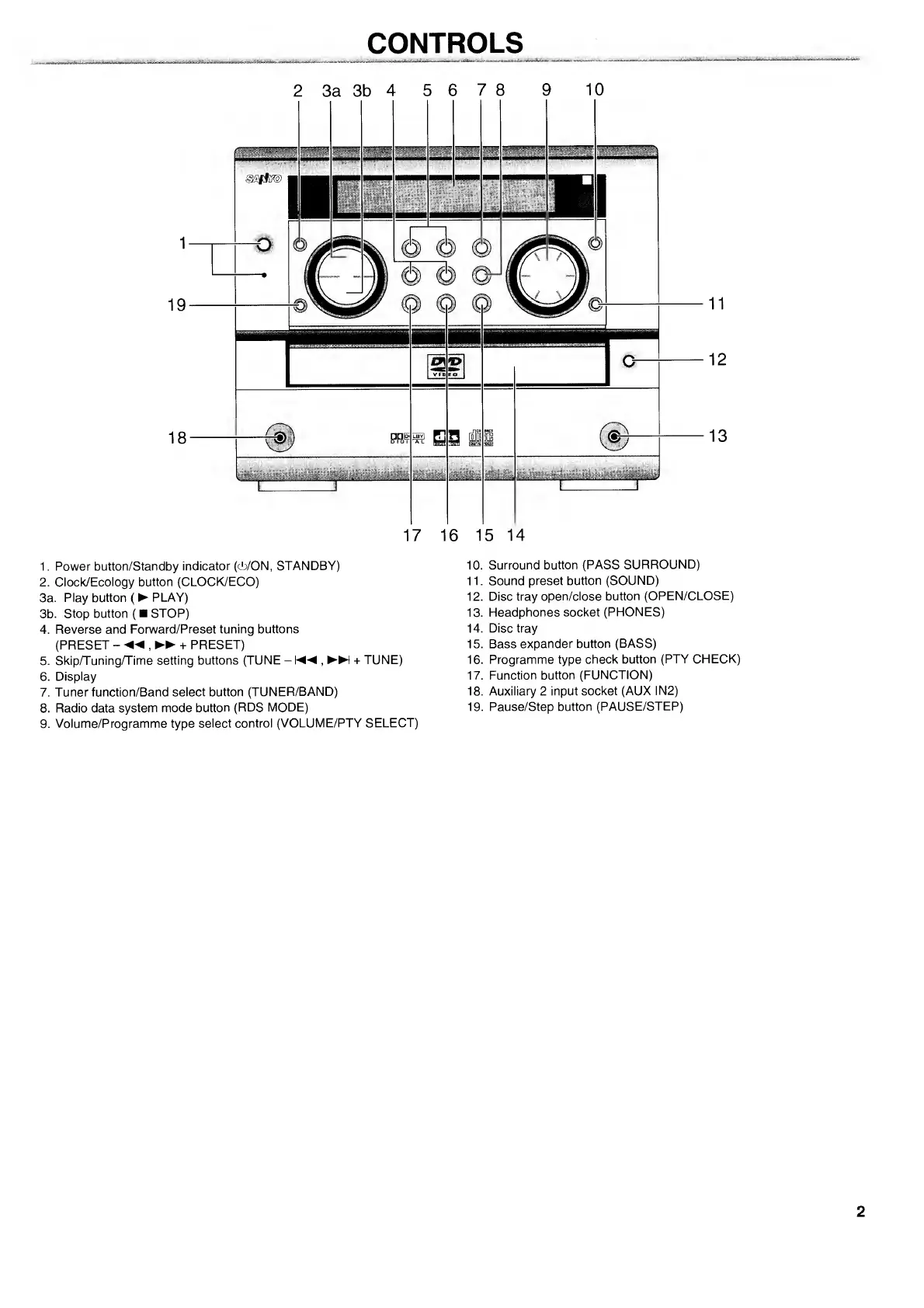

Sanyo DC-DAV821 - UNIT CONTROLS OVERVIEW; Front Panel Controls

CONTROLS
2 3a 3b 4 5678 9 10
17 16 15 14
1. Power button/standby indicator (cb/ON, STANDBY)
2. Clock/Ecology button (CLOCK/ECO)
3a. Play button ( ► PLAY)
3b. Stop button ( ■ STOP)
4. Reverse and Forward/Preset tuning buttons
(PRESET + PRESET)
5. Skip/TuningTTime setting buttons (TUNE + TUNE)
6. Display
7. Tuner function/Band select button (TUNER/BAND)
8. Radio data system mode button (RDS MODE)
9. Volume/Programme type select control (VOLUME/PTY SELECT)
10. Surround button (PASS SURROUND)
11. Sound preset button (SOUND)
12. Disc tray open/close button (OPEN/CLOSE)
13. Headphones socket (PHONES)
14. Disc tray
15. Bass expander button (BASS)
16. Programme type check button (PTY CHECK)
17. Function button (FUNCTION)
18. Auxiliary 2 input socket (AUX IN2)
19. Pause/Step button (PAUSE/STEP)
