SERVICE MODE
D. IMPORTANT NOTE
1. Once the "Market/Region" settings are written into EEPROM (IC801) on the DVD substrate, they cannot be reset.
(However, updating the system using CD-R enables you to make new settings.)
2. While the Internal Setup screen is displayed, pushing the Power button enables you to terminate the operations without
making any settings.
HOW TO LOAD SOFTWARE FOR MPEG P.W.BOARD
1. Power on, then open disk lid.
2. The function key of remote control is pushed and it is made DVD/CD mode.
3. It take on CD-ROM for UPDATE software to the tray, and disk lid close.
4. It is displayed on a screen as "Reading" and is displayed on LCD as "READING."
5. A screen will become noise-like if UPDATE is started.
Cautions) update is not ended even if rotation of a disk stops.
3. For the time being, tray open and FL display remain "UP DATING".
4. Loading of software will be completed, if update is started and about 60 seconds pass,
then the display of "update" of LCD will be "GOOD-BY" and disappears soon.
5.The disk for update is taken out.
6. Next, set up market code and region code by "SERVICE MODE"
CD-ROM part code is "0PRADC9695--A".
CAUTIONS FOR PWB OR IC ASSY EXCHANGE
After an MAIN board(614 329 5587) or IC ASSY(410 507 6601) exchange should carry out loading of the software by the
newest CD-R, and should check operation.
CAUTIONS FM ANTENNA WIRE
The knot is made so that FM antenna line may not enter during a set of a line. If it enters in a set of FM antenna line, There is a
danger that a line will melt into the high-fever part in a set.
Be careful of below at things at the time of disassembly of a set, and an assembly.
At the time of disassembly of a set
Remove thermal shrinkage tube, and disassemble a set after loosening the knot of a line.
At the time of the assembly of a set
Make a knot to the place distant from the end of a line 885mm or more, fix a knot to it by thermal shrinkage tube(parts code :
614 330 9918 ULSUMITUBE-F2,D4.0), and a line should not enter it from a knot.

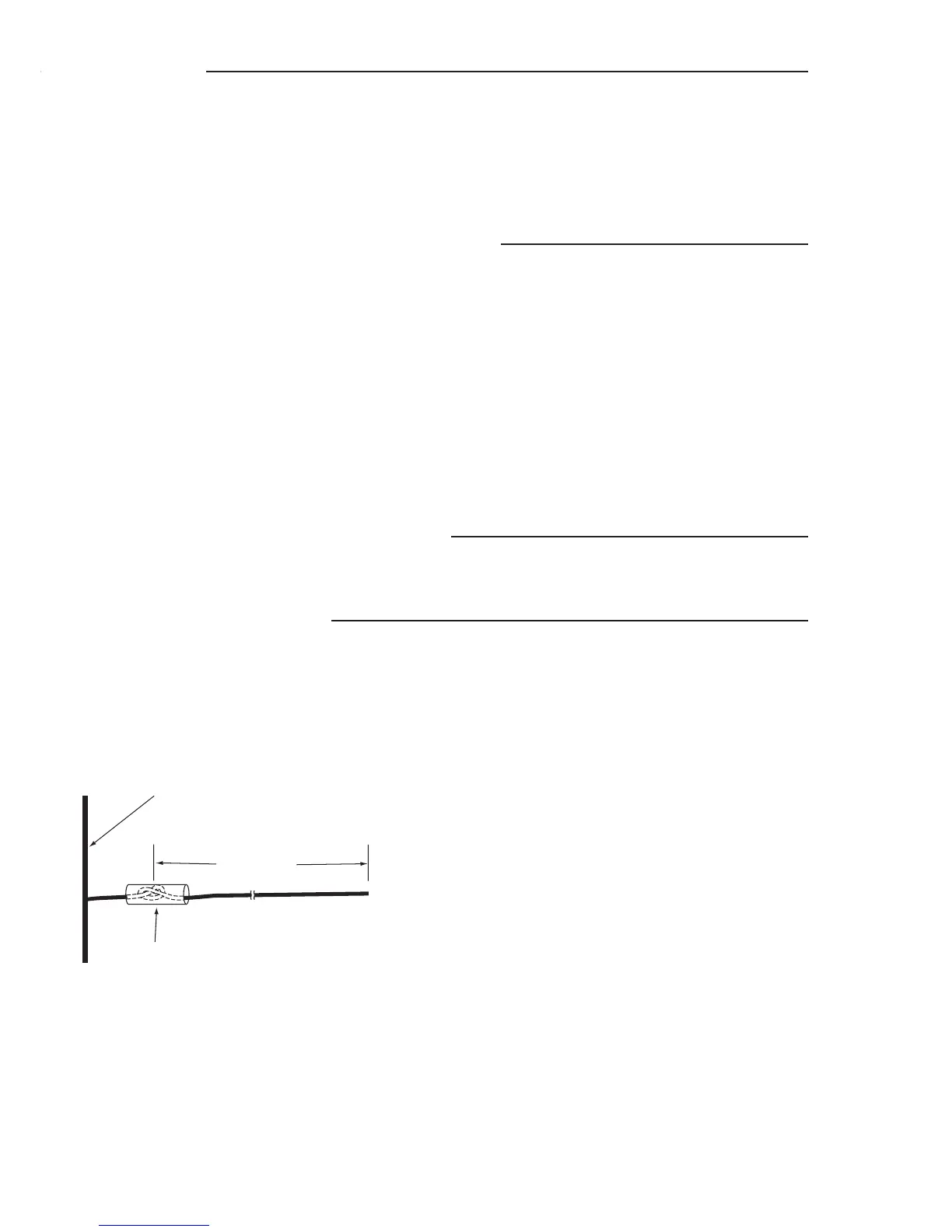

REAR CABINET
885 mm or more
FM ANT.
Thermal shrinkage tube
(parts code : 614 330 9918 ULSUMITUBE-F2,D4.0)
