Sanyo DS20425 - Front and Rear Panel Overview; Front Panel Connections; Rear Panel Connections; TV Positioning Guidelines

AUDIO VIDEO
INPUT 2
R
L
UHF/VHF/CATV
75Ω
P R
P B
Y
VIDEO
(MONO)
S-VIDEO
COMPONENT
2

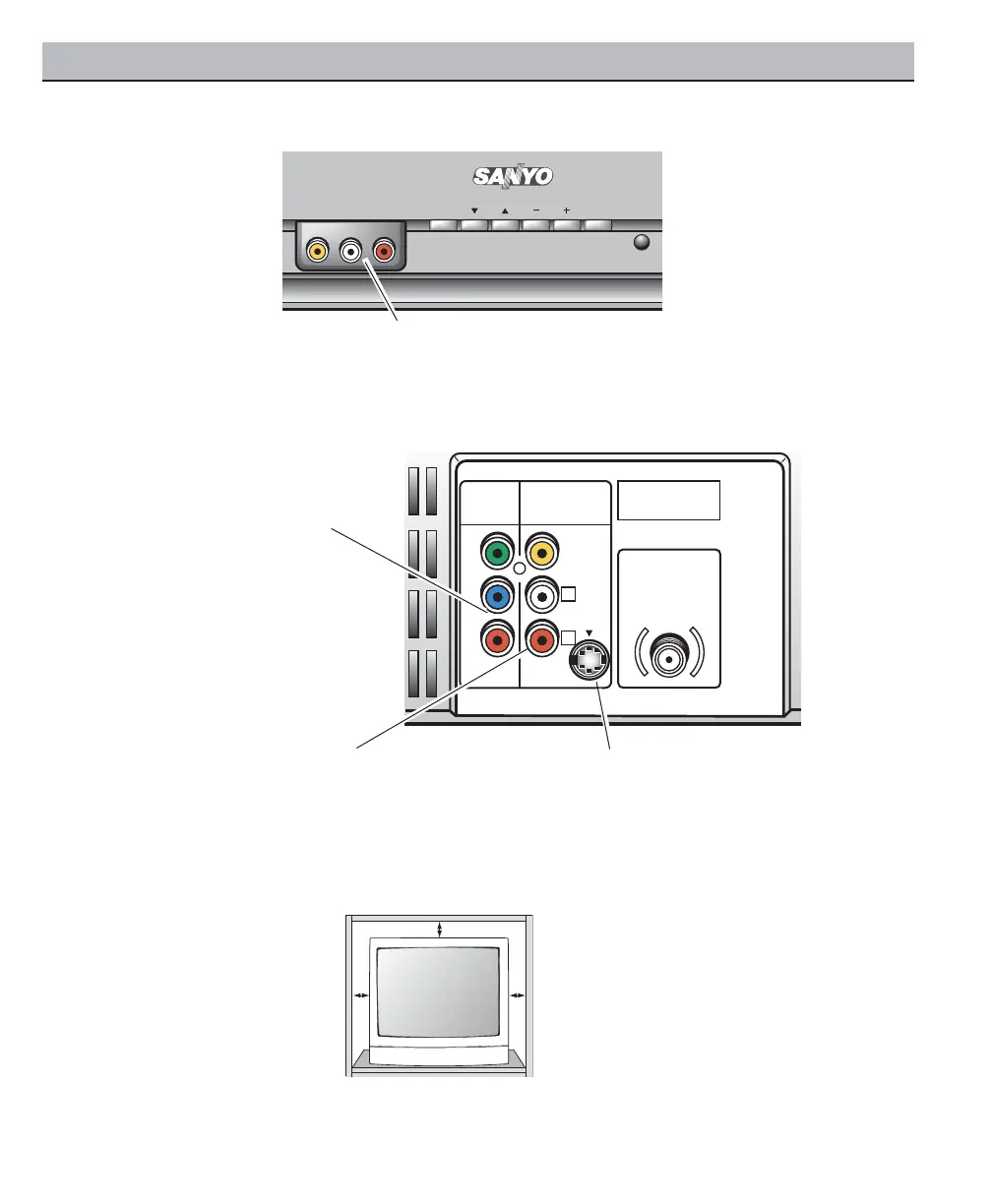

POSITIONING THE TV
Do not position the TV in a confined
area. Allow space for normal air
circulation around electronic parts.
Audio Video Input 2 Jacks (AV2)
Connect video equipment here (see pages 6 and 8).
Note: S-Video connection will override an AV2
video connection.
S-Video In Terminal
To enhance video detail use the AV2
S-Video jack instead of the AV2 Video jack,
if available on your external equipment. (An
S-Video connection will override connection to
the AV2 video input jack. See page 8.)
480i Component Video In Jacks
(Component 2: Y, Pb, Pr)
Connect video equipment here
(see page 6).
Note: Audio Video Input (AV2) and
Component inputs share the
same audio (R/L) input jacks.
MENU CH VOL POWER
VIDEO IN L- AUDIO -R
Audio Video In Jacks (AV1)
Connect video equipment here (see page 7).
FRONT
BACK
FRONT AND REAR PANELS
5
Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032
