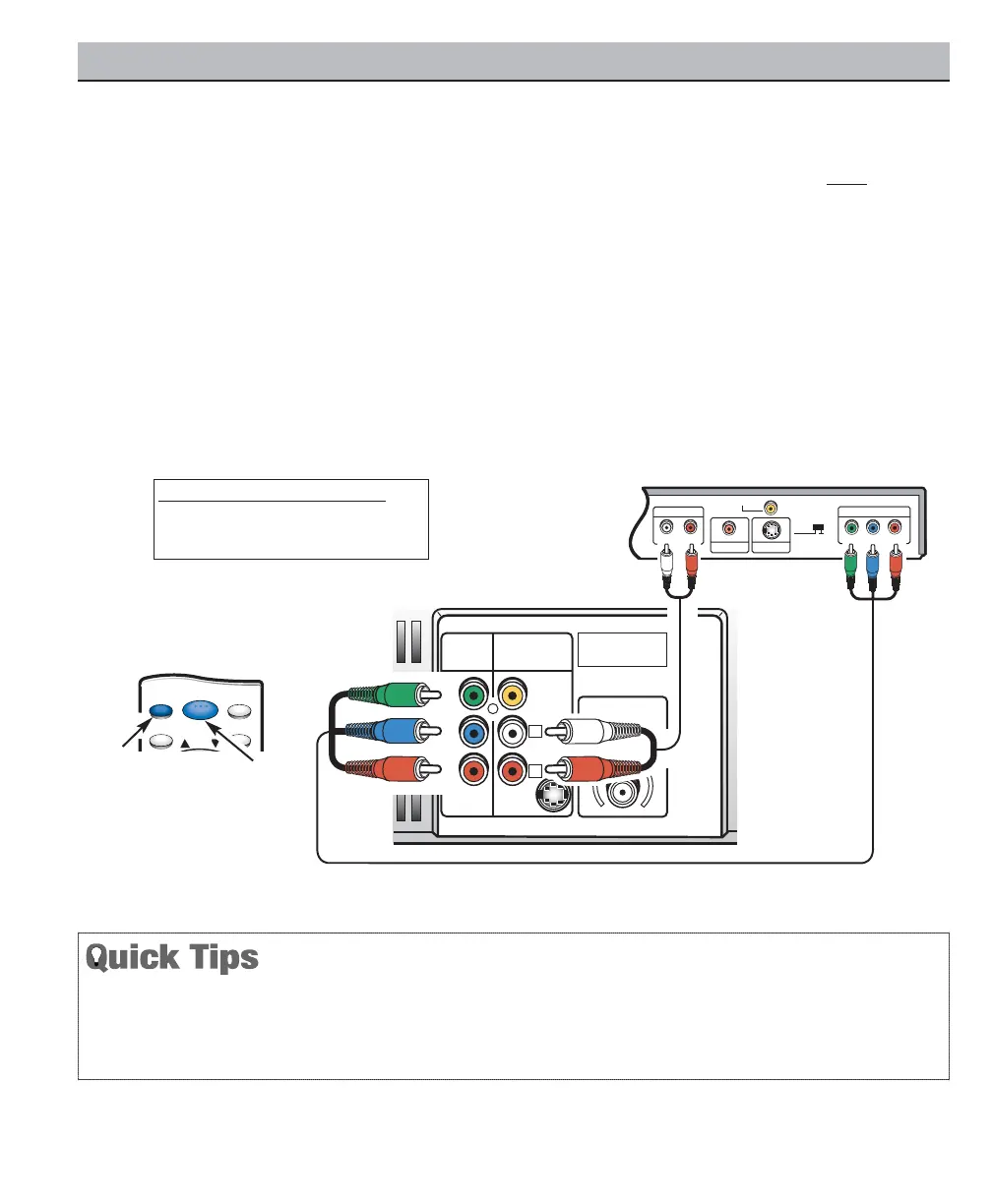

CONNECTING A DVD PLAYER
Switch off TV and external equipment before connecting
cables. (Cables are not supplied.)

Connect a DVD Player or other equipment’s interlaced
Component Video Out to the TV Component Video In
(Y-Pb-Pr) Jacks.
 Connect the DVD Player’s Audio Out to the TV AV2
Audio In (L/R) Jacks.

Press POWER to turn on the TV. Turn on external
equipment also.
 To access Audio Video inputs, press the INPUT key to
select COMPONENT2.
Notes: DVD Player component output must be set to
Interlaced (480i).
Audio/ Video Input 2 (AV2) and Component inputs
share the same audio (R/L) input jacks.
Connect equipment to the Component2 video
input or the AV2 video input, but not both types at
the same time.
Y
P
B
/C B /C R
P R
COMPONENT VIDEO OUT
AUDIO OUT
RL
DIGITAL OUT
COAXIAL
S-VIDEO OUT
VIDEO OUT
VIDEO OUT
SELECT
S-VIDEO COMPONENT
AUDIO VIDEO
INPUT 2
R
L
UHF/VHF/CATV
75Ω
P R
P B
Y
VIDEO
COMPONENT
2
S-VIDEO
DVD Player

TV Back

What you will need for connections:

Component video cable – 1
 Audio Cable – 1

MENU RECALL
RESETINPUT
CH
POWER


Remote Control

USING THE COMPONENT VIDEO AND AUDIO INPUT JACKS
6
Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

A solid Blue screen with COMPONENT2 displayed
means that the Video mode is selected, but no signal
is being detected at the Component jacks. Check con-
nection, and turn on external equipment.

Press INPUT key after connecting cables to access
the A/V inputs. There is NO need to tune to a blank
channel.
