SERVICE ADJUSTMENTS (Continued)
ANTENNA CONNECTIONS
This receiver is designed for UHF/VHF reception. A 75 ohm
terminal is provided for UHF and VHF receptions. When
connecting a CATV antenna system, connect the 75 ohm
coaxial cable directly to the 75 ohm terminal. For 300 ohm
VHF antenna, use an adapter (not included with the TV set).
CIRCUIT PROTECTION
Fuse F601 (4A) is included in the AC line. This fuse must be
replaced with the proper fuse (see Parts List).
+B VOLTAGE CHECK
Connect Voltmeter + lead to TJ1 130V and – lead to ground
(TE7). Connect receiver to AC 120V line. Tune receiver to an
active channel. Reset the picture controls to the FACTORY
PRESET levels (press remote control RESET key twice).
Voltage must measure between +128.0V and +132.0V. If the
voltage is out of this range, the power circuit must be
checked. No +B adjustment is provided on this chassis.
HORIZONTAL WIDTH ADJUSTMENT
1. Tune receiver to an active channel.
2. Check the picture for proper width. If width is not correct,
perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord
(120V AC line).
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 60 EWD (Horizontal Width) with ▲ or ▼ key.
6. Adjust the data with + or – key for proper width. To turn
off the Service Menu display, press the MENU key.
HORIZONTAL CENTERING ADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the horizontal center of TV screen.
If picture is not centered horizontally, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 41 VTR7HP (Horiz. Phase) with ▲ or ▼ key.
6. Adjust the data with + or – key for horizontal center. To
turn off the Service Menu display, press the MENU key.
VERTICAL SIZE ADJUSTMENT
1. Tune receiver to an active channel.
2. Check the vertical size of the picture. If the vertical size is
too large or small, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 42 VS (Vertical Size) with ▲ or ▼ key.
6. Adjust the data with + or – key for full scan. To turn off
the Service Menu display, press the MENU key.
VERTICAL CENTERING ADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the center of TV screen. If picture
center is too low, add resistor R513 (1K ohm 1W). If picture
center is too high, change resistor R512 from 1K ohm 1/2W
to a 470 ohm 1W.
VCO ADJUSTMENT
Note: VCO must be adjusted after IC101 (Signal
Processor), IC802 (EEPROM) or T151 (VCO Coil) is
replaced.
1. Tune receiver to an active channel.
2. Set the picture controls to the Sports level.
3. Connect digital voltmeter + lead to pin 58 (TP 10) of IC101
and – lead to ground (TE 7).
4. Confirm a reading of 3.6 ± 0.2 VDC.
5. If voltage is out of specifications adjust T151 for
3.6 ± 0.2 VDC.
RF AGC ADJUSTMENT
1. Tune receiver to strongest VHF station in your area.
2. Set contrast and brightness controls for maximum.
3. Turn off the receiver and disconnect the AC power cord
(120V AC line).
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 5D STS7RAD (RF AGC Delay) with ▲ or ▼ key.
6. Adjust the data with + or – key in the direction which
causes snow to appear; then in the opposite direction
until the snow just disappears.
7. To turn off the Service Menu display, press the MENU key.
VIDEO LEVEL
1. Connect color-bar generator to antenna terminals.
2. Switch the generator to a white field (100 IRE).
3. Set the picture controls to the Sports levels.
4. Connect oscilloscope + lead to terminal TP16 (Q202
Emitter) and – lead to ground.
5. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
6. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
7. Select NO. 5F VL5BPF (Video Level) with the ▲ or ▼ key.
8. Adjust the data with the 5 ~ 7 numeric keys for an oscil-
loscope reading of 1.0 ± 0.1 VP-P at TP16B.
9 Press the MENU key to turn off the Service Menu display
and disconnect oscilloscope from chassis.
CAUTION
FOR CONTINUED PROTECTION AGAINST
A RISK OF FIRE, REPLACE ONLY WITH THE
SAME TYPE 4A, 125V FUSE.
ATTENTION : POUR MAINTENIR LA PRO-
TECTION CONTRE LES RISQUES
D’ INCENDIE UTILISER UN FUSIBLE DE
RECHANGE DE MEME TYPE 4A, 125V.
4A 125V

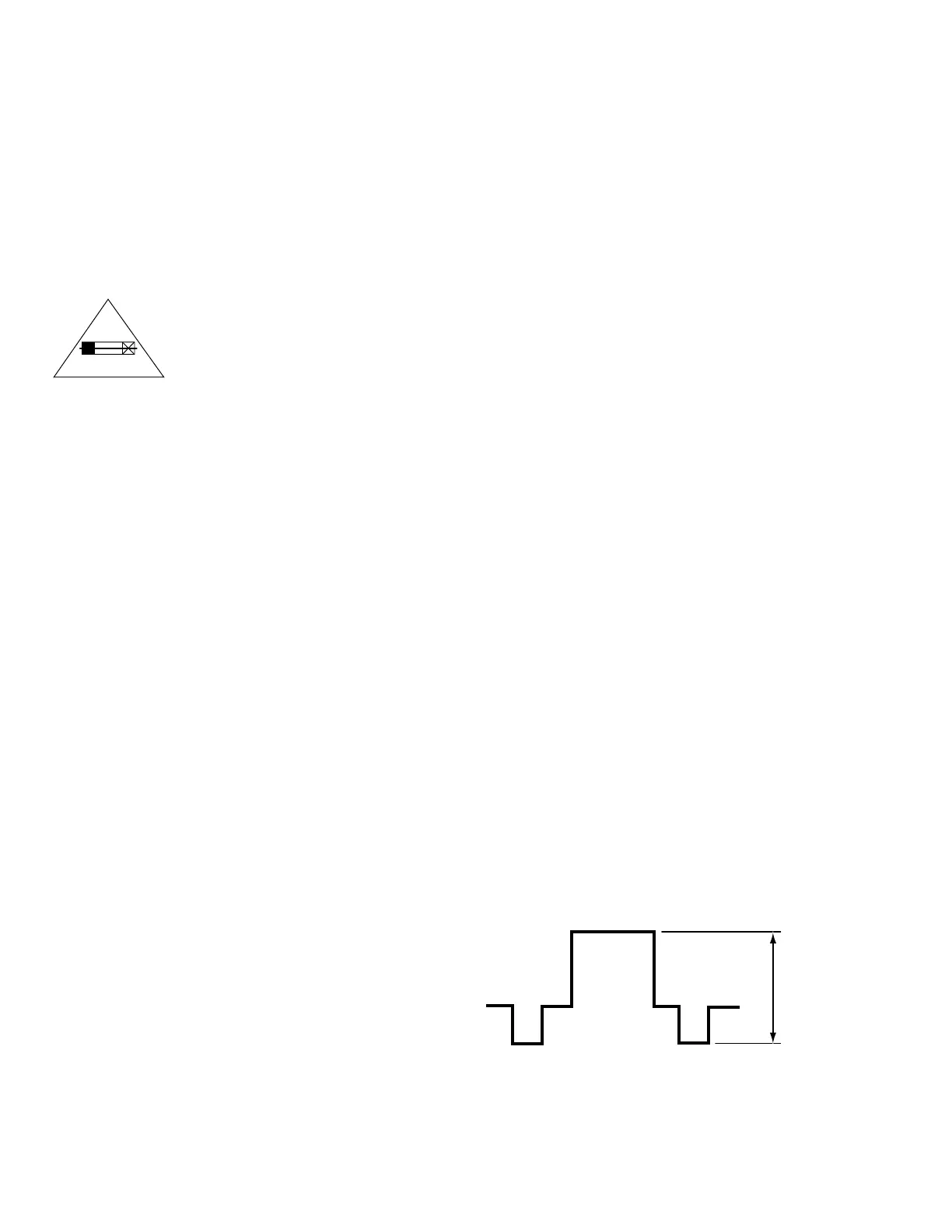

Figure 6.
