7

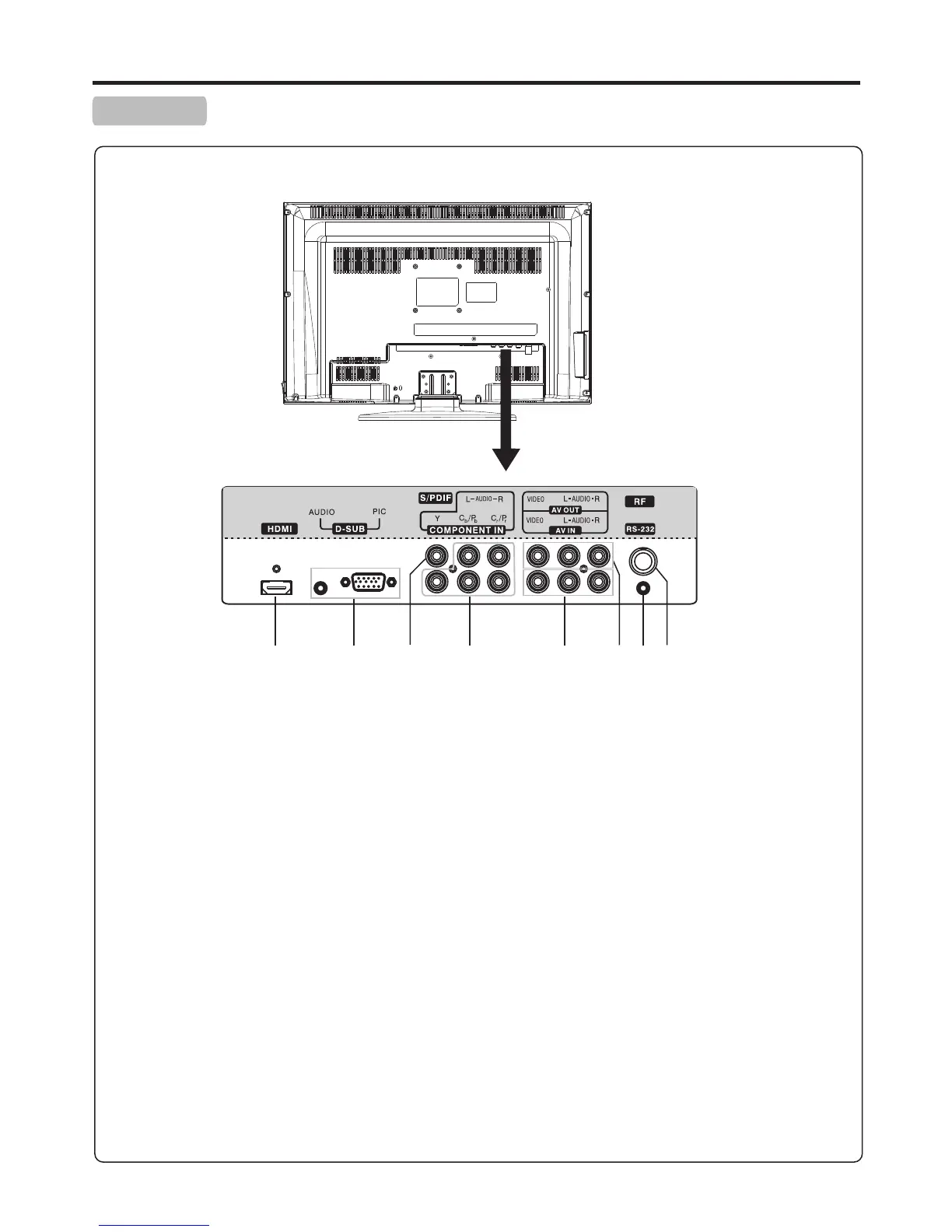

Main Unit
Identification of Controls (Continued)
1. HDMI interface
2. D-SUB input
Connect to the D-SUB/AUDIO output jack on your computer.
3. S/PDIF digital audio out terminal (coaxial)
Connect to the digital audio input of a digital audio component.
4. COMPONENT inputs
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
5. AV inputs (Video, Audio L, R)
Receive video/audio signal from external sources such as VCR or DVD player.
6. AV outputs (Video, Audio L, R)
Connect to your VCR to record programs.
7. RS232 interface
For service use . The user cannot operate the unit through this terminal.
8. Antenna input
Connect to your cable system or outdoor antenna.
1
2
4
5
7
8
6
3
To Next Page
