7
4. Adjustment instruction
At any input source then press the “LEFT” key, “BACK” key and “OK” key orderly by the remote control to enter
factory mode.
During Factory menu, if “MENU” (First layer) or “BACK” key is pushed, system will exit factory mode.

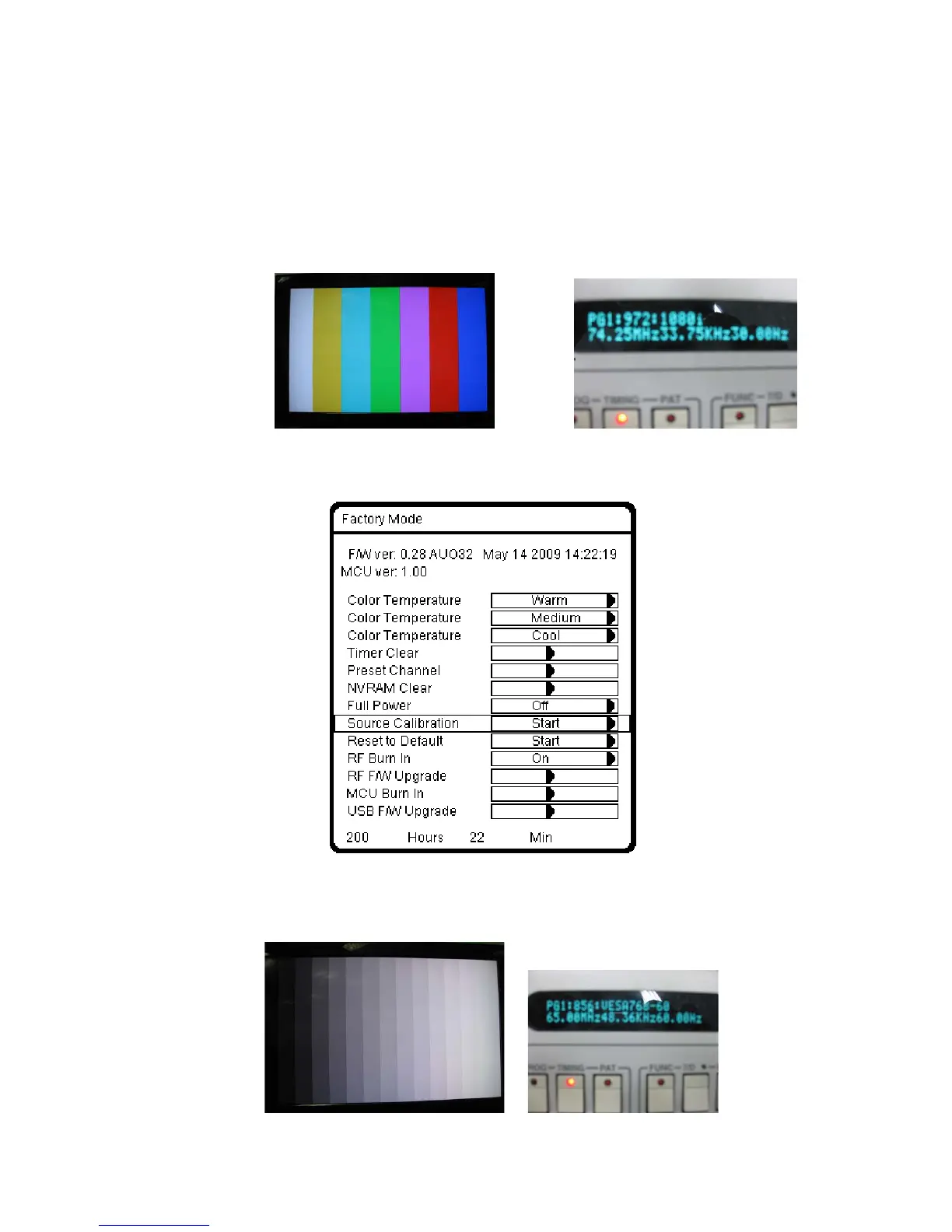

4-1. Source Calibration
4-1.1. Set the signal generator to input sources Video3 on LCD-TV; ASTRO-859 signal setting to1080i
(PG1 mode Timing 972 and Pattern 969 Color Bar.)
4-1.2. Entering into factory Mode: Press up or down key of remote control to select “Source Calibration”, Press
䇸RIGHT䇹 key to enter the item.
-> Source calibration performed automatically when finished that will show OK.
Repeat step 2 to do VGA input sources,
ASTRO-859 signal setting to1024X768 60Hz. (PG1 mode: Timing 856 and Pattern 921 Gray.)
