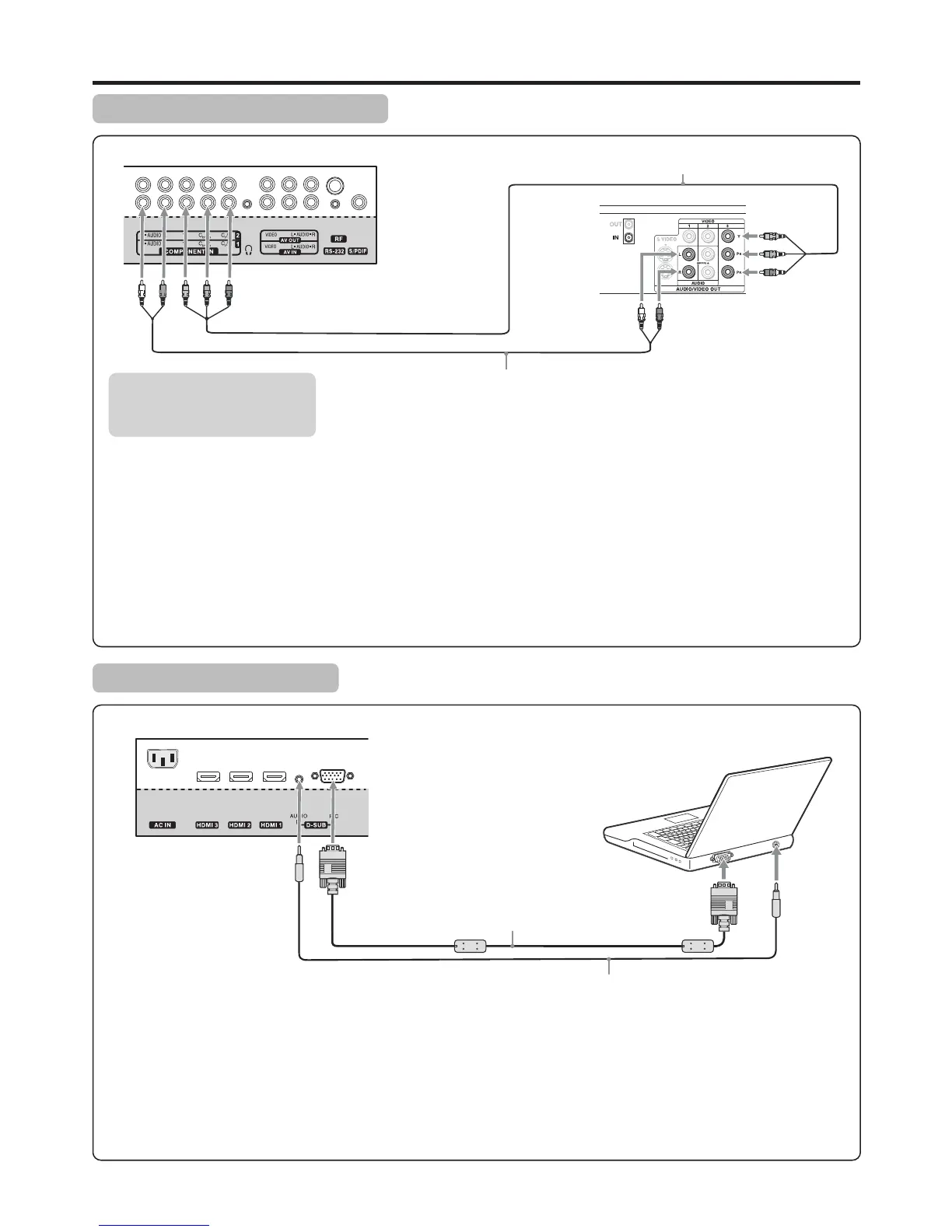

Connecting Component Video
Connections (Continued)
To connect a device using component video:
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press 5or6 to select Component1/Component2 correspondingly, then press OK to confirm.
3. Turn on your external device and set it to the correct mode. See the device’s user guide for more information.
To play component video from an external device:
Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Cb/Pb, Cr/Pr output jacks on
the device .
Connect the Audio cable between the AUDIO input jacks on the unit and AUDIO output jacks on the device.
Audio cable
Connecting a Computer
How to connect:
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press5or6to select D-SUB, then press OK to confirm.
3. Turn on your computer, and adjust the display properties as required.
To play video from a computer
Connect a D-Sub cable between the D-SUB jack on the computer and the D-SUB input jack on the unit.
Connect an Audio cable between the AUDIO output on the computer and AUDIO input jack on the unit.
D-Sub cable
(analog RGB)
To monitor port
(15-pin D-Sub)
To audio output jack
Audio cable
(stereo mini plugs)
TV REAR
11
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Component video cable
Device with
component video
TV REAR
