- 5 -- 4 -
1
2
3
4
5
6
7
8
2

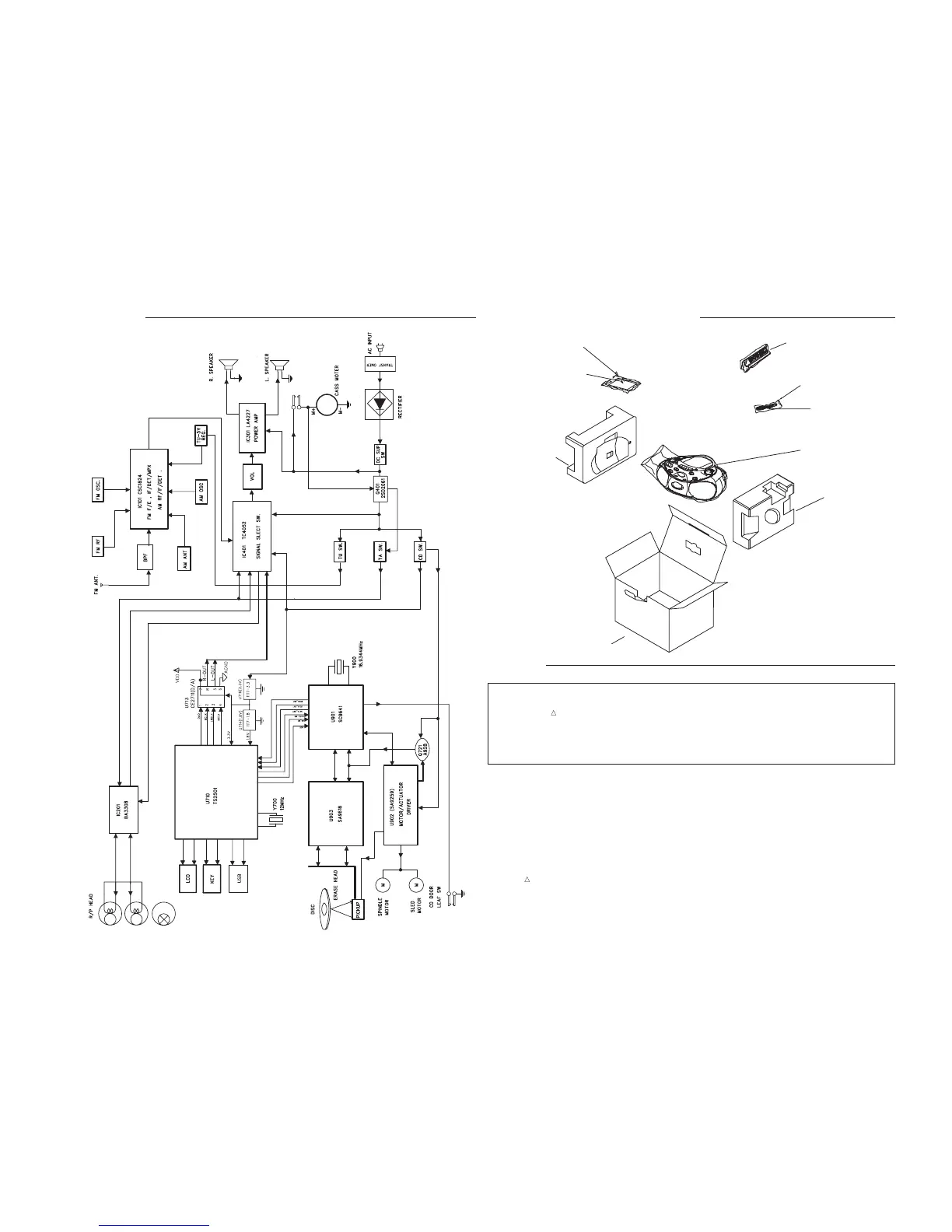

EXPLODED VIEW(ACCESSORIES & PACKING)BLOCK DIAGRAM
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL
!
!!
IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
1 645 091 6991 GIFT BOX
2 645 066 2324 POLY FOAM
3 645 090 2871 INSTRUCTION MANUAL
4 645 066 6063 POLY BAG,I/B
5 645 091 7059 REMOTE CONTROL,
RC08-1000S3-160
6 645 070 9296 POLY BAG,POWER CORD
7
!
!!
645 071 9820 POWER CORD,SAA
8 645 076 3731 POLY BAG,UNIT

Other manuals for Sanyo MCD-UB575M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sanyo MCD-UB575M and is the answer not in the manual?

Sanyo MCD-UB575M Specifications

CD Player IconCD Player
channels2-Channel stereo
sampling frequency44.1 kHz
laser output0.6 mW
wave length790 nm
Radio IconRadio
FM reception frequency87.5 - 108 MHz
AM reception frequency526.5 - 1606.5 kHz
Cassette Deck IconCassette Deck
track system4-track, 2-channel stereo
tape speed4.75 cm/sec.
frequency response80 - 12, 000 Hz
General Specifications IconGeneral Specifications
output power (DC)2 W/ch
output power (AC)1.5 W/ch
speakers10 cm x 2, 8 ohms
dimensions410 (W) x 167 (H) x 286 (D) mm
weightApprox. 2.8 kg
power source (AC)110 V, 60 Hz
power source (DC)12V, 8 “D/HP2/R20” batteries
