Sanyo MCD-UB575M Service Manual

- 11 -- 10 -

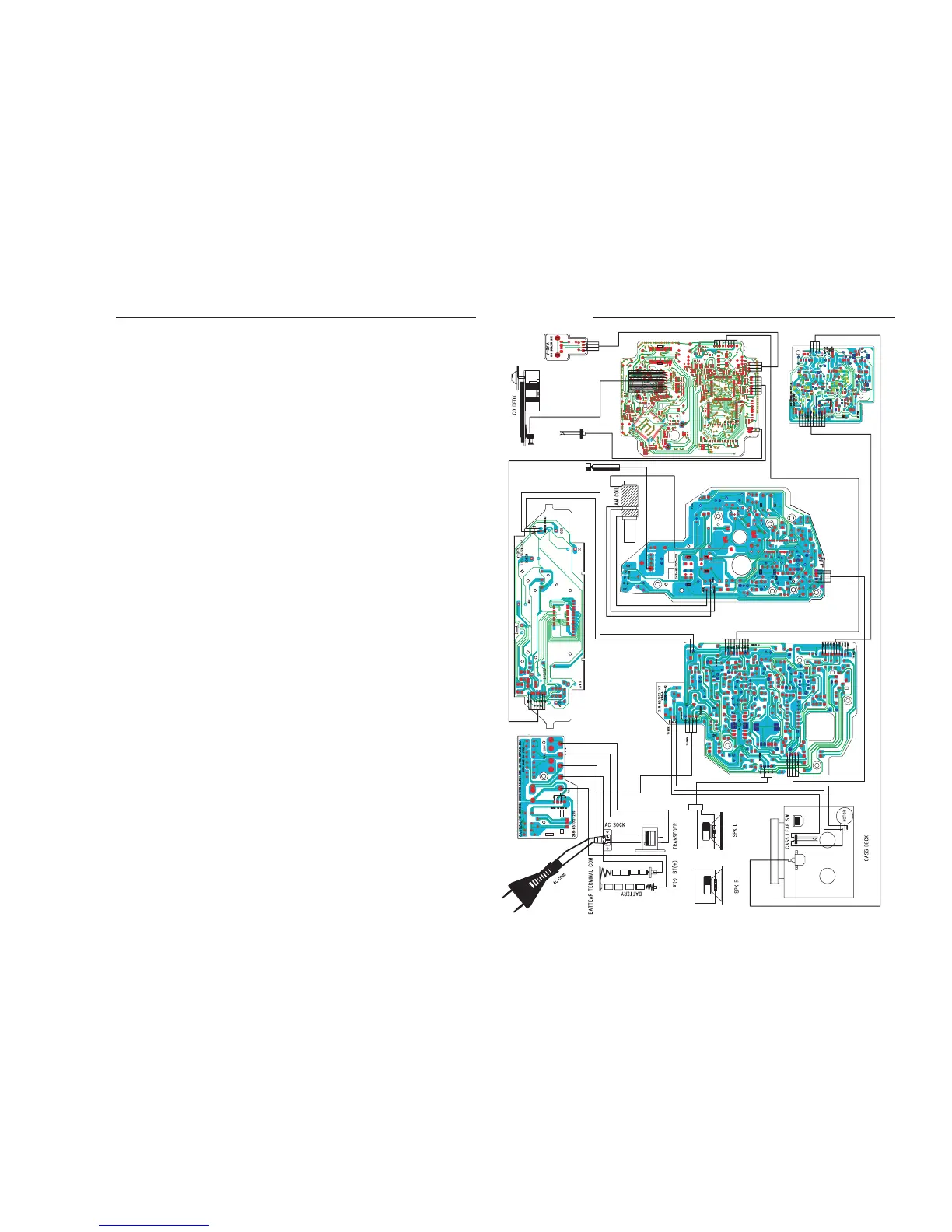

WIRING CONNECTION
This is a basic wiring connection.
PARTS LIST
Q0201 645 072 3162 TRANSISTOR 9014C
Q0202 645 072 3162 TRANSISTOR 9014C
Q0203 645 072 3162 TRANSISTOR 9014C
Q0801 645 072 3162 TRANSISTOR 9014C
Q0802 645 027 0420 TR 8050C
SW201 645 023 6327 SW RECORDING PS62D01-S(SH
T0801 645 027 0307 BIAS COIL,AC BIAS 3630
REF.NO. PART NO. DESCRIPTION
CD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
85 645 091 6779 ASSY PWB CD
CN901 645 054 0684 9P HEADER
CN902 645 054 0677 7P HEADER
CN904 645 069 6688 HEADER FFC 16P
CN905 645 051 6511 2P HEADER
CN906 645 054 0653 4P HEADER
L0720 645 079 6920 INDUCTOR 10UH
L0910 645 034 7160 INDUCTOR 10UH
Q0720 645 072 3162 TRANSISTOR 9014C
Q0721 645 055 6883 TR KSA928A
Q0722 645 080 5301 TRANSISTOR 8050C.D
Q0723 645 055 6883 TR KSA928A
Q0911 645 033 3514 TR 2SB764D
Q0912 645 091 6502 TRANSISTOR 8550B.C
Q0913 645 080 5301 TRANSISTOR 8050C.D
SW903 645 069 6657 LEAF SWITCH
U0710 645 091 6557 IC TS2501
U0711 645 091 6601 IC SST39VF800A
U0712 645 076 1447 IC M12L16161A
U0713 645 091 6564 IC CE2711
U0714 645 091 6526 IC AMS1117
U0715 645 091 6519 IC V809R
U0716 645 091 6533 IC CW1117CS
U0901 645 091 6595 IC SC9641
U0902 645 091 6571 IC SA9259
U0903 645 091 6588 IC SA9618
W106 645 091 6342 2P HSG,
CN905 TO CD DOOR LEAF SW
Y0900 645 073 8203 CRYSTAL 16.9344MHZ
645 081 3290 HEAT SINK,FOR U902
RECTIFIER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
86 645 091 6809 ASSY PWB RECTIFIER(Only initial)
C1105 645 034 9782 CE 3300 UF/25V
CN101 645 027 0611 WAFER 4P,CN1101
D1101 645 023 6112 RECTIFIER 1N-4001
D1102 645 023 6112 RECTIFIER 1N-4001
D1103 645 023 6112 RECTIFIER 1N-4001
D1104 645 023 6112 RECTIFIER 1N-4001
DZ401 645 033 3859 ZENER 8.2V
FS1101 645 054 0639 FUSE GLASS TUBE
Q0401 645 033 3507 TR 2SD2061E
R0401 645 034 9096 RESISTOR 330 OHM +-5
645 035 0511 FUSE HOLDER MW1010K,
FOR FS1101
645 027 1298 EYELET,AC1
645 027 1298 EYELET,AC2
645 027 1298 EYELET,ACSW1
645 027 1298 EYELET,BATT+
645 027 1298 EYELET,BATT-
645 042 0320 HEAT SINK,FOR Q401
USB P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
87 645 091 6816 ASSY PWB USB(Only initial)
C0990 645 076 7395 ELECT 47U 10V
JK901 645 091 6380 USB CONNECTOR
W105 645 091 6847 4P HSG,USD CN910 TO CD CN906
DECK MECHANISM ASSY
REF.NO. PART NO. DESCRIPTION
77 645 072 1762 CASS DECK MECHANISM
645 069 6442 MOTOR ASSY
645 069 6473 PINCH ROLLER ASSY
645 058 9553 RF BELT
645 069 6626 MAIN BELT
645 030 6839 E HEAD
645 018 0637 R/P HEAD

Sanyo MCD-UB575M Specifications

CD Player

channels	2-Channel stereo
sampling frequency	44.1 kHz
laser output	0.6 mW
wave length	790 nm

Radio

FM reception frequency	87.5 - 108 MHz
AM reception frequency	526.5 - 1606.5 kHz

Cassette Deck

track system	4-track, 2-channel stereo
tape speed	4.75 cm/sec.
frequency response	80 - 12, 000 Hz

General Specifications

output power (DC)	2 W/ch
output power (AC)	1.5 W/ch
speakers	10 cm x 2, 8 ohms
dimensions	410 (W) x 167 (H) x 286 (D) mm
weight	Approx. 2.8 kg
power source (AC)	110 V, 60 Hz
power source (DC)	12V, 8 “D/HP2/R20” batteries
