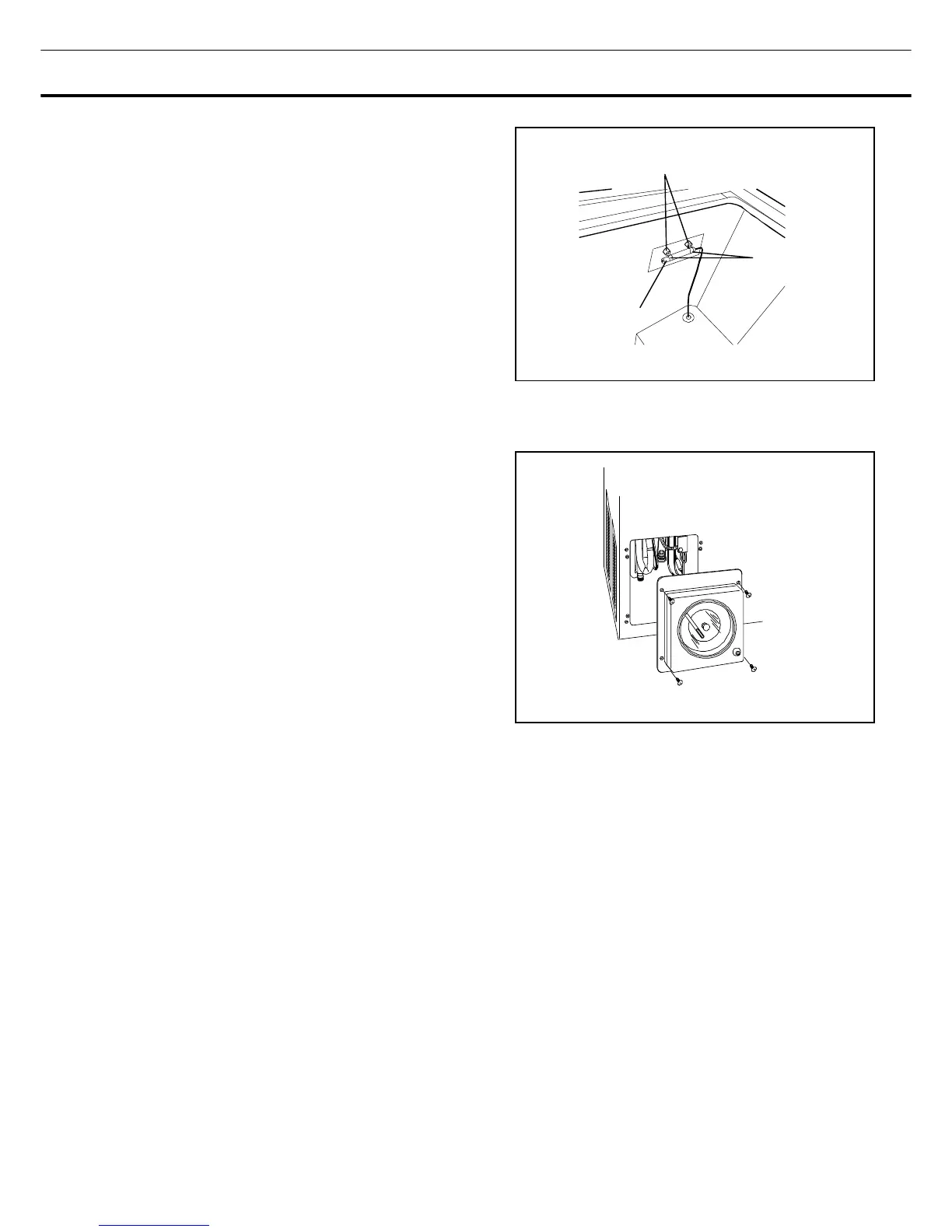

6. As shown in the Fig. 4, fix the recorder sensor on the
chamber wall by using 2 clips with a 10mm spacer
located between the wall and the clip. The clips and
spacers are enclosed with the mounting kit.
7. Cover the gap of the access port on the chamber
side completely by a silicon sealant after pushing the
insulation into the gap.
8. After binding the lead wire on the back of the
recorder and fix the recorder to the freezer with 4
screws removed in procedure 1. (Fig. 5)
Fig. 5
Fig. 4
Sensor
Spacer
Clip
To Next Page
