OPERATING INSTRUCTIONS
Temperature recorder (Option)
If the warning is required for the internal temperature record or the interior temperature deviates from the
target temperature, an optional auto temperature recorder (MTR-86H) is available. Install the recorder
properly as described below.

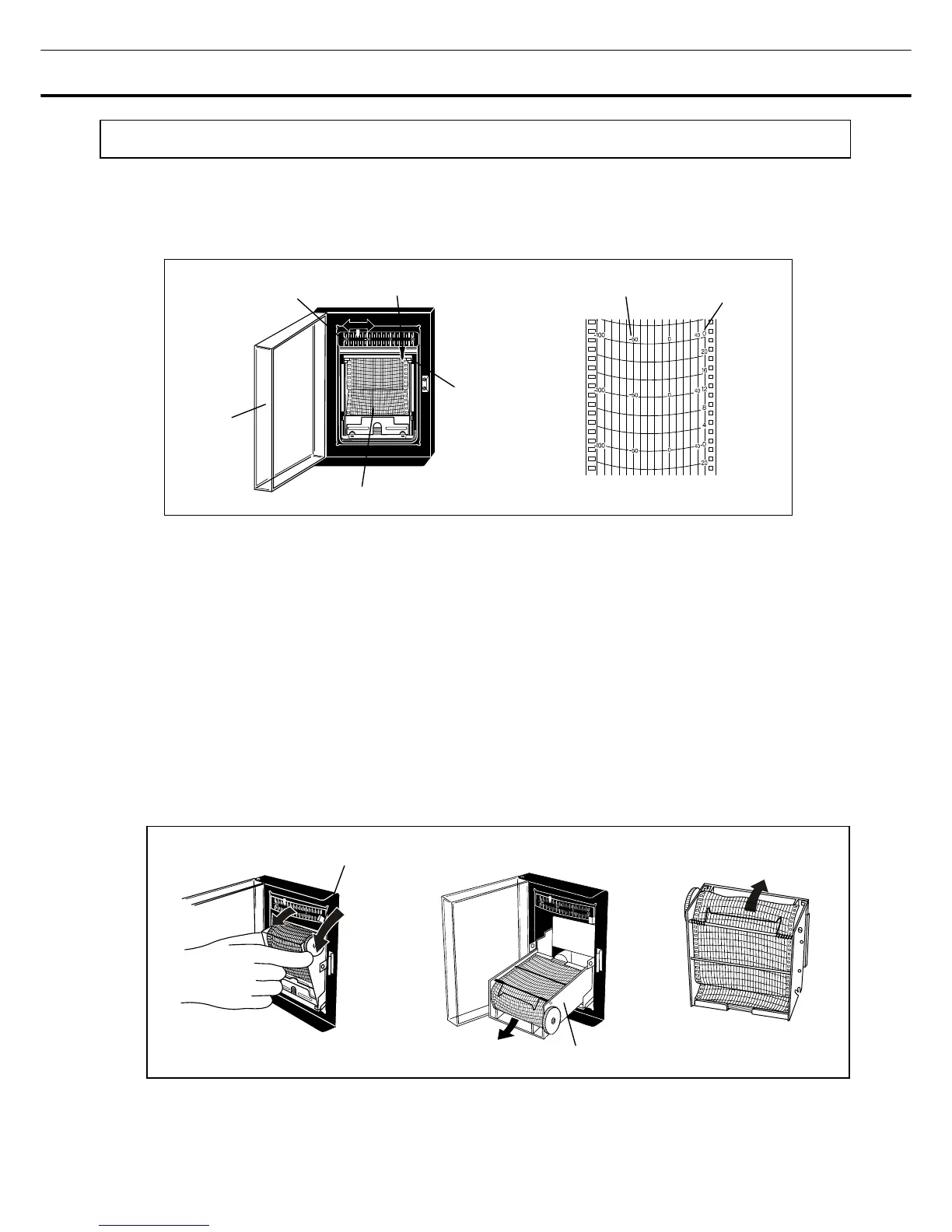

1. Open the cover and let down the lever of the pen holder; the pen point is apart from the chart. (Fig. 1)
2. Pull the cartridge out of the mounted position. (Fig. 2)
3. Set a new chart in place on the rear bottom of the cartridge. Set the hole on the chart in the cog of the
chart driving assembly and feed the chart in the direction of the arrow by driving the cogwheel. (Fig. 3)
4. Set the chart according to the mark of day and time.
5. When mounting, lay down the cartridge first, and push into the mounting position with the groove set at the
projection on the position.
6. Set up the cartridge and settle in position.
