Sanyo MDF-U333 - MDF-U537;D Temperature Uniformity

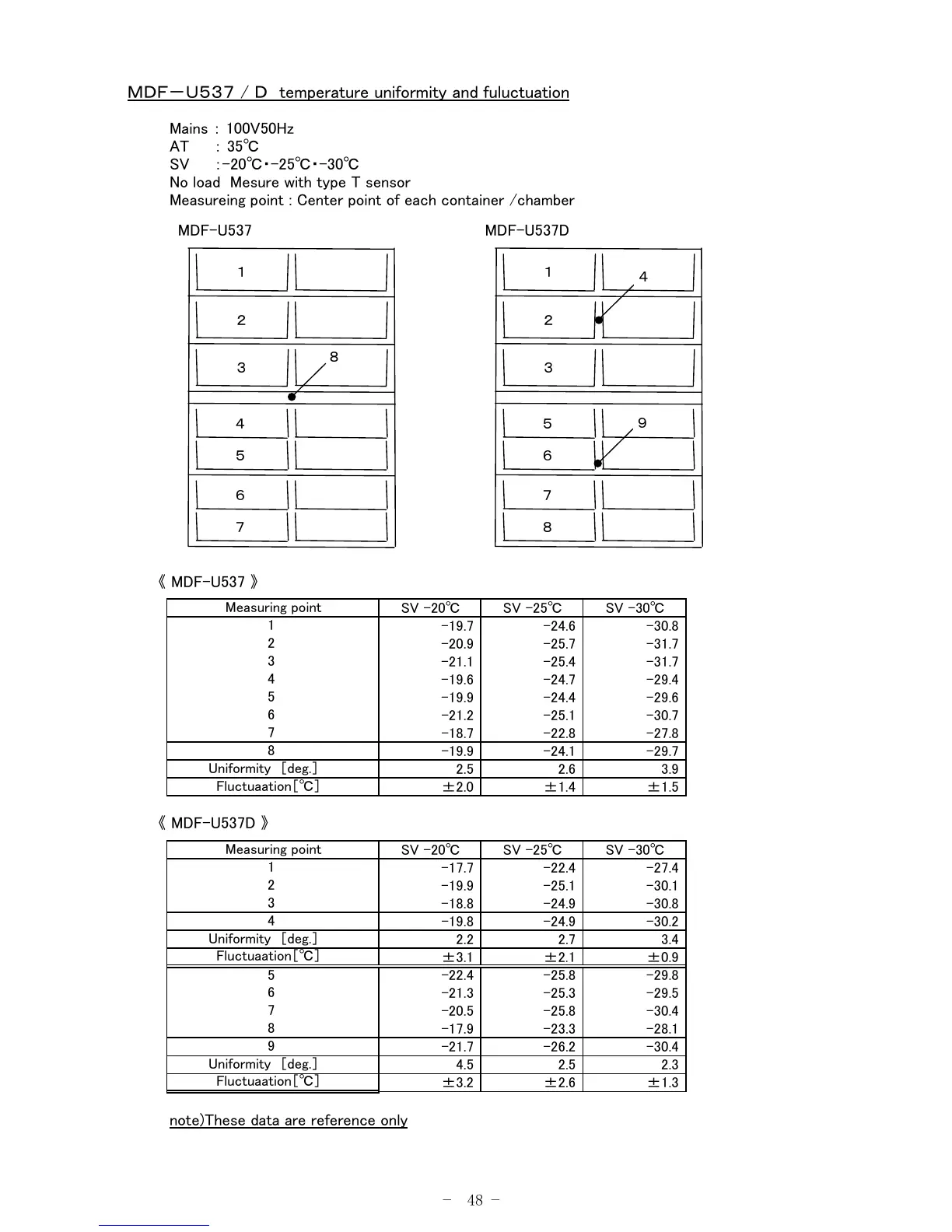

ＭＤＦ－Ｕ５３７ / Ｄ temperature uniformity and fuluctuation
Mains ： 100V50Hz
AT ： 35℃
SV ：-20℃・-25℃・-30℃
No load Mesure with type T sensor
Measureing point : Center point of each container /chamber
《 MDF-U537 》
SV -20℃ SV -25℃ SV -30℃
-19.7 -24.6 -30.8
-20.9 -25.7 -31.7
-21.1 -25.4 -31.7
-19.6 -24.7 -29.4
-19.9 -24.4 -29.6
-21.2 -25.1 -30.7
-18.7 -22.8 -27.8
-19.9 -24.1 -29.7
2.5 2.6 3.9
±2.0 ±1.4 ±1.5
《 MDF-U537D 》
SV -20℃ SV -25℃ SV -30℃
-17.7 -22.4 -27.4
-19.9 -25.1 -30.1
-18.8 -24.9 -30.8
-19.8 -24.9 -30.2
2.2 2.7 3.4
±3.1 ±2.1 ±0.9
-22.4 -25.8 -29.8
-21.3 -25.3 -29.5
-20.5 -25.8 -30.4
-17.9 -23.3 -28.1
-21.7 -26.2 -30.4
4.5 2.5 2.3
±3.2 ±2.6 ±1.3
note)These data are reference only
1
2
Measuring point
3
4
5
6
7
8
Uniformity ［deg.］
Fluctuaation［℃］
Measuring point
Uniformity ［deg.］
Fluctuaation［℃］
1
2
3
4
9
Uniformity ［deg.］
Fluctuaation［℃］
5
6
7
8
１
２
３
４
５
６
７
８
MDF-U537
１
２
３
５
６
７
８
４
９
MDF-U537D
