Electrical parts on top
Top view of product Access port for recorder wires
Inside of control panel
Connecter for buzzer
Connecter for display P.C.B.
Back view of product
Door latch
Remote alarm terminal Breaker switch
Inner parts
of door latch
・Temperature control sensor (MDF-Ｕ５３７)
・Temperature control sensor
for upper chamber (MDF-Ｕ５３７D)
・Solenoid valve control sensor (MDF-Ｕ５３７)
・Temperature control sensor
for lower chamber (MDF-Ｕ５３７D)
Connecter for tenperature recorder power sourece
ＭＤＦ－Ｕ５３７
ＭＤＦ－Ｕ５３７ＭＤＦ－Ｕ５３７
ＭＤＦ－Ｕ５３７

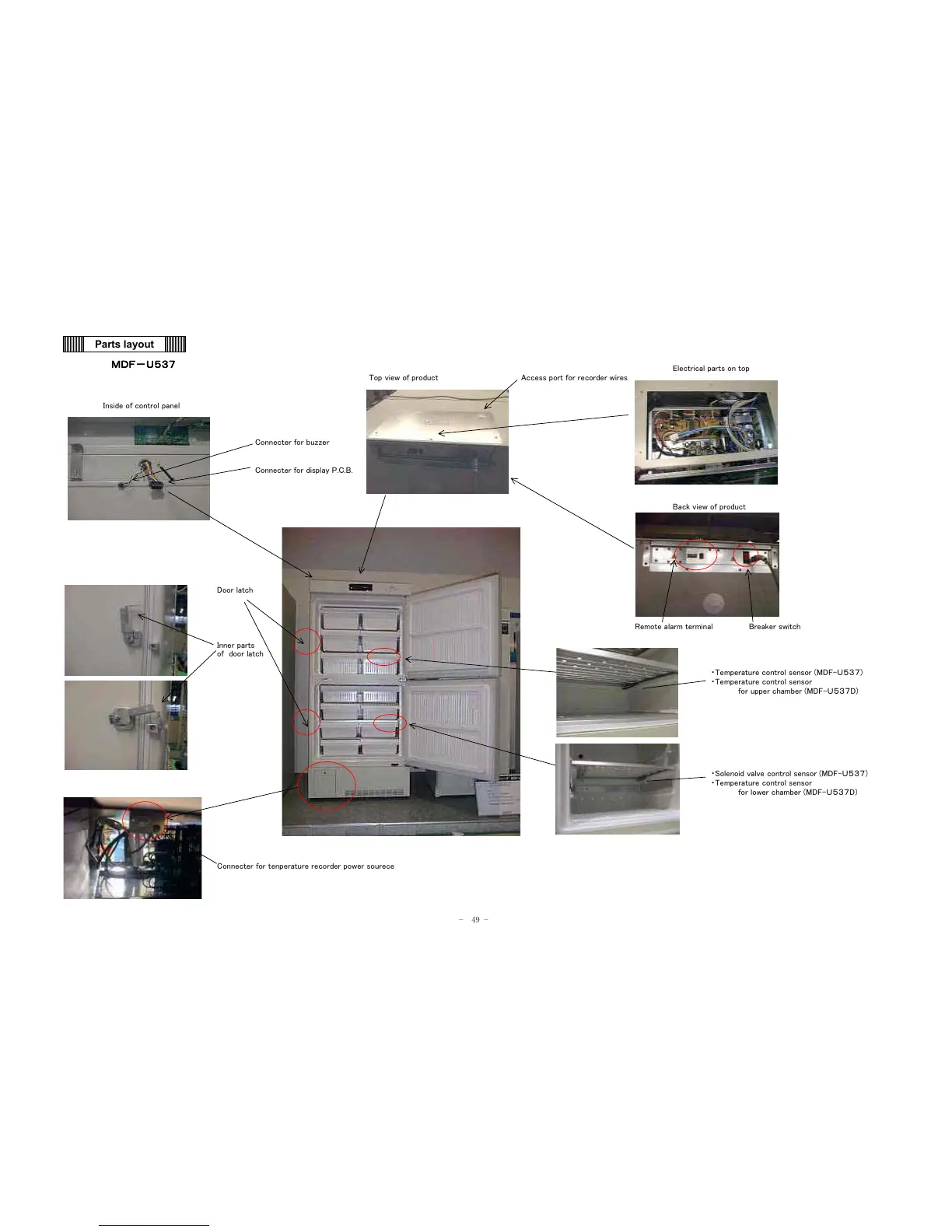

Parts layout
− 49−
