TEMPERATURE RECORDER (OPTION)
WARNING
Always disconnect the power supply to the unit prior to attachment of a temperature recorder in
order to prevent electric shock or injury.
An automatic temperature recorders is available for the freezer as the optional component. The type of
the recorder is MTR-G85 and MTR-4015LH. For the attachment, the mounting kit is necessary.
<MTR-4015LH>

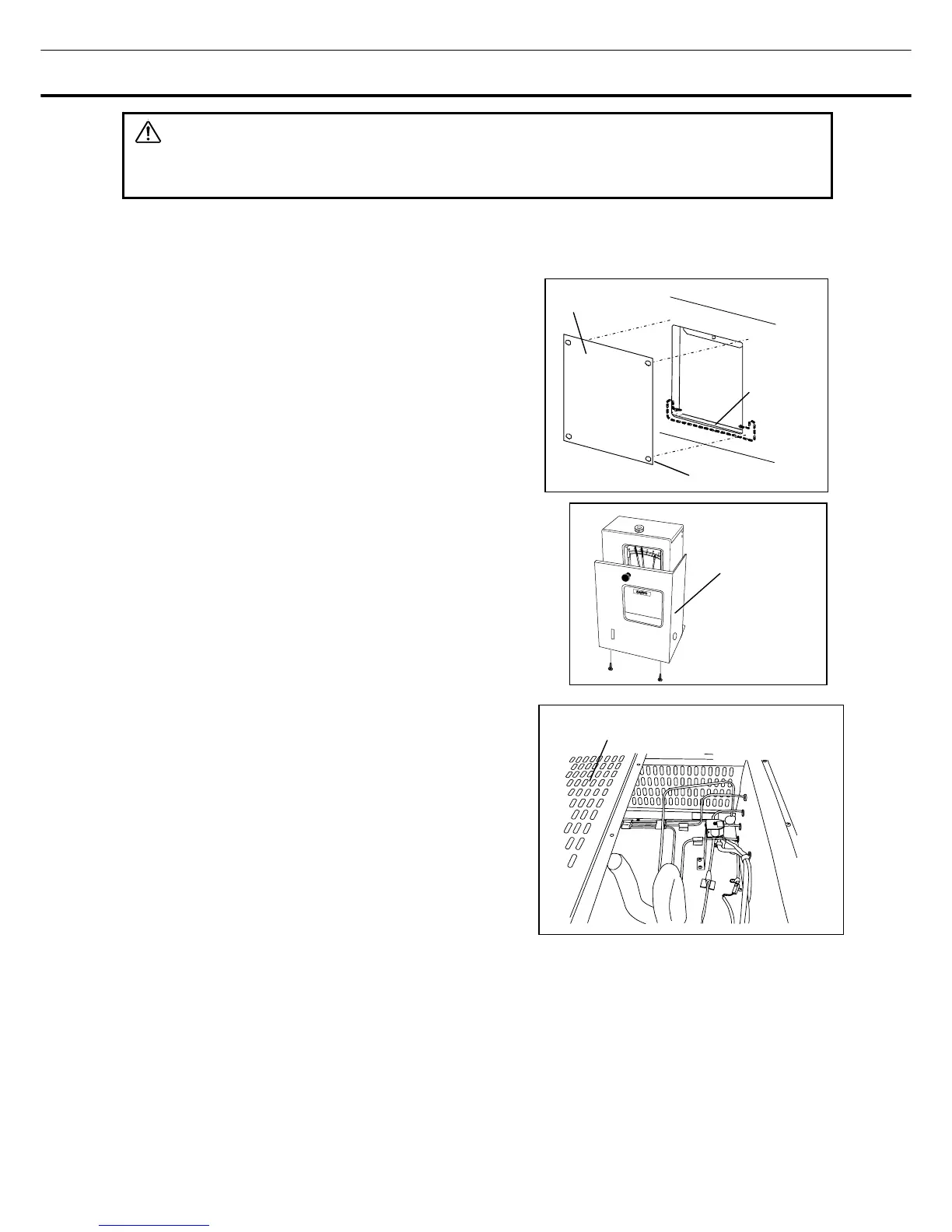

1. Remove the screw on the cover for the recorder space
on the upper front of the freezer. Fig. 1
2. Set the automatic temperature recorder (MTR-4015LH)
to the recorder fixture (MPR-S30:option) referring to a
manual enclosed with the recorder fixture. (Fig.2)
3. Install the recorder in the recorder space.
4. Remove the unit cover of the freezer. See Fig.3
Recorder
fixture
Fig.2
Fig. 1
Shaft
Cover
Screw
Fig. 3
Unit cover
