Sanyo MGP17 - General Remarks

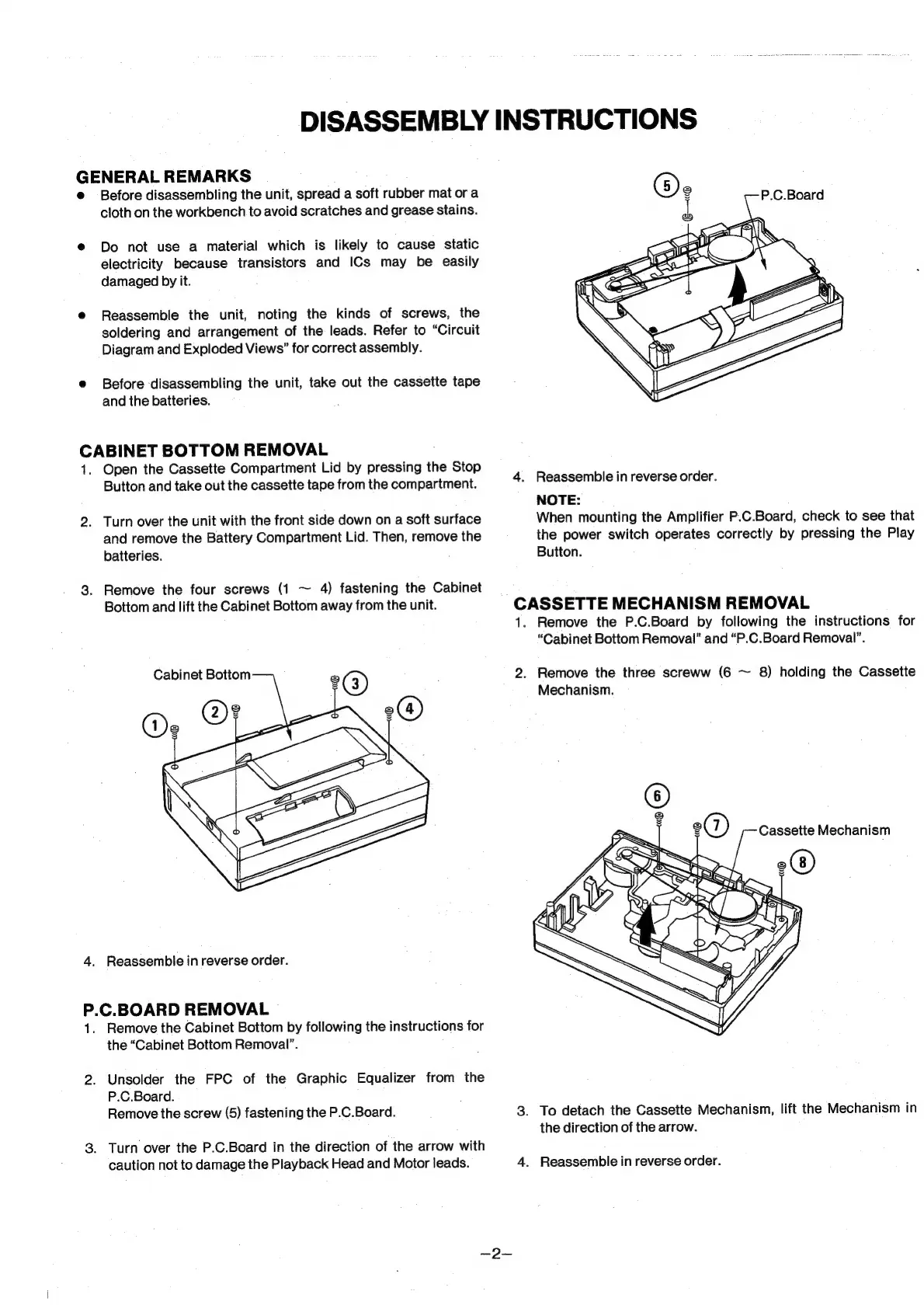

DISASSEMBLY
INSTRUCTIONS
GENERAL REMARKS
@
Before
disassembling
the
unit,
spread
a
soft
rubber
mat
ora
cloth
on the
workbench
to
avoid
scratches
and
grease
stains.
@
Do
not
use
a
material
which
is
likely
to
cause
static
electricity
because
transistors
and
ICs
may
be
easily
damaged
by
it.
Reassemble
the
unit,
noting
the
kinds
of
screws,
the
soldering
and
arrangement
of
the
leads.
Refer
to
“Circuit
Diagram
and
Exploded
Views’
for
correct
assembly.
Before ‘disassembling the unit, take out the cassette tape
and the batteries.
CABINET BOTTOM REMOVAL
1.
Open
the
Cassette
Compartment
Lid
by
pressing
the
Stop
Button
and
take
out
the
cassette
tape
from
the
compartment.
Turn over the unit with the front side down on a soft surface
and remove the Battery Compartment Lid. Then, remove the
batteries.
Remove the four screws (1 ~ 4) fastening the Cabinet
Bottom and lift the Cabinet Bottom away from the unit.
Cabinet Bottom ©
4. Reassembie in reverse order.
P.C.BOARD REMOVAL
1.
Remove the Cabinet Bottom by following the instructions for
the “Cabinet Bottom Removal”.
Unsolder the FPC of the Graphic Equalizer from the
P.C.Board.
Remove the screw (5) fastening the P.C.Board.
Turn over the P.C.Board in the direction of the arrow with
caution not to damage the Playback Head and Motor leads.
ni
. Reassemble in reverse order.
NOTE:
When mounting the Amplifier P.C.Board, check to see that
the power switch operates correctly by pressing the Play
Button.
CASSETTE MECHANISM REMOVAL
. Remove the P.C.Board by following the instructions for
“Cabinet Bottom Removal” and “P.C.Board Removal”.
2. Remove the three screww (6 ~ 8) holding the Cassette
Mechanism.
3.
To
detach
the
Cassette
Mechanism,
lift
the
Mechanism
in
the
direction
of
the
arrow.
4. Reassemble in reverse order.
