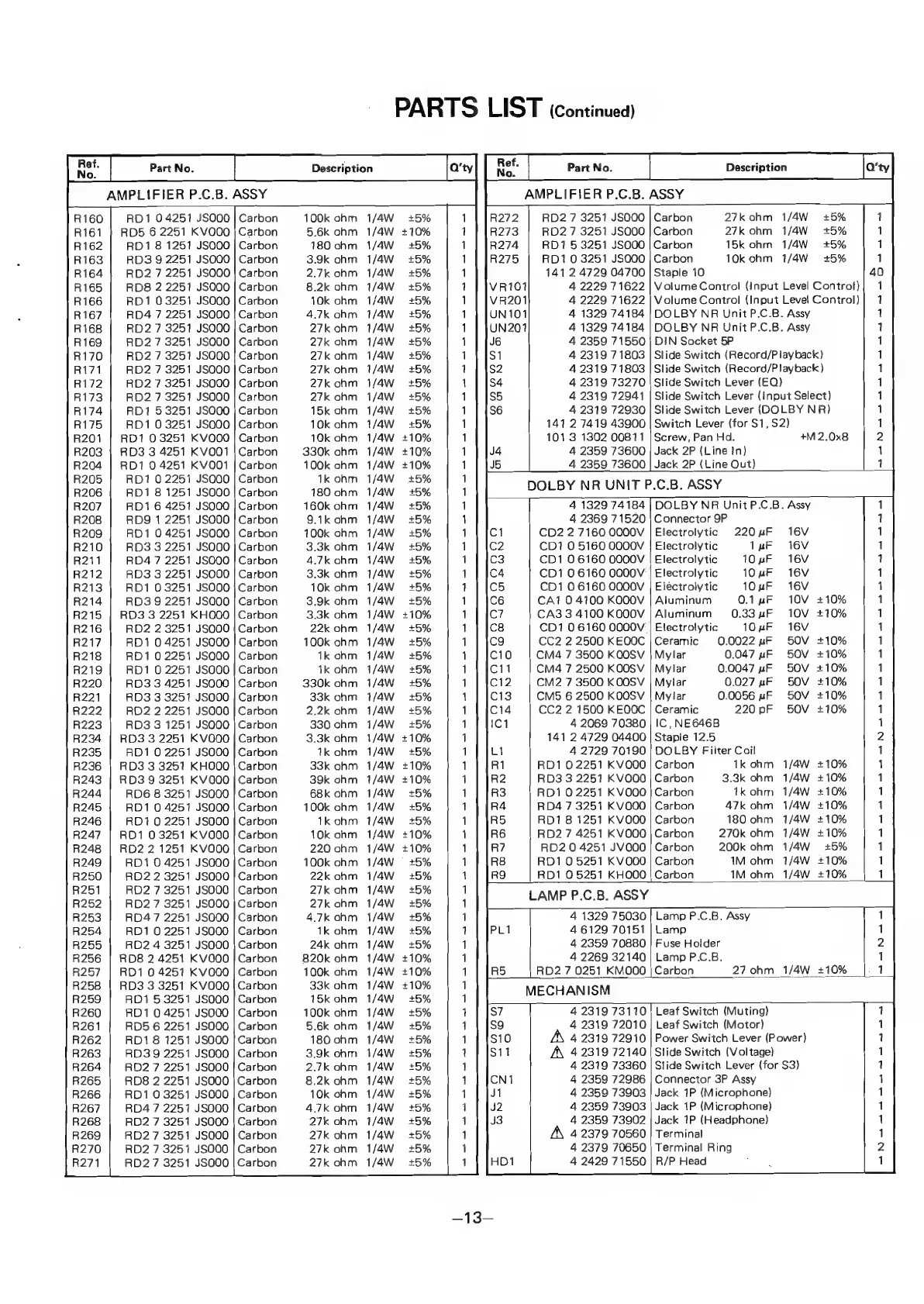

Sanyo RD 30 - Circuit Board and Mechanism Parts; Amplifier P.C.B. Components (Further); Dolby NR Unit P.C.B. Parts; Lamp P.C.B. and Mechanism Parts

PARTS LIST (Continued)
[rene [omen de [|| Cminnen |
AMPLIFIER P.C.B. ASSY AMPLIFIER P.C.B. ASSY
R160 RD1 04251 JSOOO R272 | RD2 7 3251 JSOOO | Carbon 27k ohm 1/4W +5%
R161 } RD5 6 2251 KVOOO | Carbon 5.6k ohm 1/4W +10% R273 RD2 7 3251 JSOOO | Carbon 27k ohm 1/4W +5%
R162 RD1 8 1251 JSOOO | Carbon 180 ohm 1/4W +5% R274 RD1 5 3251 JSOO0 | Carbon 15k ohm 1/4W +£5%
R163 RD3 9 2251 JSO00 | Carbon 3.9k ohm 1/4W +5% R275 RD1 0 3251 JSOQOO | Carbon 10k ohm 1/4W 45%
Carbon 100k ohm
1
1
1
1
R164 RD2 7 2251 JSOOO | Carbon 2.7k ohm 1/4W +5% 141 2 4729 04700 | Staple 10 40
R165 RD8 2 2251 JSOOO | Carbon 8.2k ohm 1/4W +5% VR101 4 2229 71622 | Volume Control (Input Level Controt)| 1
R166 RD1 03251 JSOGO | Carbon 10k ohm 1/4W +5% VR201 4 2229 71622 | Volume Control (Input Level Control)| 1
R167 RD4 7 2251 JSOOO | Carbon 4.7k ohm 1/4W +5% UN101 4 1329 74184 | DOLBY NR Unit P.C.B. Assy 1
R168 RD2 7 3251 JSO00 | Carbon 27k ohm 1/4W +5% UN201 4 1329 74184 | DOLBY NR Unit P.C.B. Assy 1
R169 RD2 7 3251 JSOQO | Carbon 27k ohm 1/4W +5% J6 4 2359 71550 | DIN Socket 5P 1
R170 RD2 7 3251 JSOQO | Carbon 27k ohm 1/4W +5% $1 4 2319 71803 | Slide Switch (Record/Playback) 1
R171 RD2 7 3251 JSOOO | Carbon 27k ohm 1/4W +5% $2 4 2319 71803 | Slide Switch (Record/Playback) 1
R172 RD2 7 3251 JSOOO | Carbon 27k ohm 1/4W +5% S4 4 2319 73270 | Slide Switch Lever (EQ) 1
R173 RD2 7 3251 JSOOO | Carbon 27k ohm 1/4W +5% $5 4 2319 72941 | Slide Switch Lever (input Select) 1
R174 RD1 5 3251 JSOOO } Carbon 15k ohm 1/4W +5% $6 4 2319 72930 | Slide Switch Lever (DOLBY NR) 1
R175 RD1 0 3251 JSOOO | Carbon 10k ohm 1/4W +5% 141 2 7419 43900 | Switch Lever (for S$1,S2) 1
R201 | RD1 0 3251 KVOQO0 | Carbon 10k ohm 1/4W +10% 101 3 1302 00811 | Screw, Pan Hd. +M2.0x8 2
R203 | RD3 3 4251 KV001 | Carbon 330k ohm 1/4W +10% J4 4 2359 73600 | Jack 2P (Line !n) 1
R204 | RD1 0 4251 KV001 | Carbon 100k ohm 1/4W +10% J5 4 2359 73600 | Jack 2P (Line Out) 1
R205 RD1 0 2251 JSO00 | Carbon 1k ohm 1/4W +5%
R206 RD1 8 1251 JSOOO | Carbon 180 ohm 1/4W 45%
R207 RD1 6 4251 JSOOO | Carbon 160k ohm 1/4W +5%
R208 RD9 1 2251 JSOOO | Carbon 9.1k ohm 1/4W +5%
R209 RD1 0 4251 JSOOO | Carbon 100k ohm 1/4W +5%
R210 RD3 3 2251 JSOOO | Carbon 3.3k ohm 1/4W +5%
R211 RD4 7 2251 JSOOO | Carbon 4.7k ohm 1/4W +5%
R212 RD3 3 2251 JSOO0 | Carbon 3.3k ohm 1/4W 145%
R213 RD1 0 3251 JSOOO | Carbon 10k ohm 1/4W +5%
R214 RD3 9 2251 JSQOO | Carbon 3.9k ohm 1/4W +5%
R215 | RD3 3 2251 KHOQOO | Carbon 3.3k ohm 1/4W +10%
R216 RD2 2 3251 JSOOO | Carbon 22k ohm 1/4W +5%
R217 RD1 0 4251 JSO00 |} Carbon 100k ohm 1/4W +5%
R218 RD1 0 2251 JSOQO | Carbon 1k ohm 1/4W +5%
R219 RD1 0 2251 JSOOO | Carbon 1k ohm 1/4W +5%
R220 RD3 3 4251 JSOOO | Carbon 330k ohm 1/4W +5%
DOLBY NR UNIT P.C.B. ASSY
4 1329 74184 | DOLBY NR Unit P.C.B. Assy
4 2369 71520 | Connector 9P
C1 CD2 2 7160 OO00V | Electrolytic 220uF 16V
c2 CD1 0 5160 OO00V | Electrolytic 1uF 16V
c3 CD1 06160 OO0O0V | Electrolytic 10ynF 16V
C4 CD1 0 6160 OODOV | Electrolytic 10uF 16V
C5 CD1 0 6160 OOO0O0V | Electrolytic 10uF 16V
C6 CA1 0 4100 KOOOV | Aluminum 0.1 uF 10V +10%
C7 CA3 3 4100 KOOOV | Aluminum 0.33 uF 10V +10%
C8 CD1 06160 OOO0V | Electrolytic 10uF 16V
cg CC2 2 2500 KEOOC |Ceramic 0.0022 uF 50V +10%
C10 CM4 7 3500 KQOSV } Mylar 0.047 uF 50V +10%
C11 CM4 7 2500 KOOSV | Mylar 0.0047 uF 50V +10%
C12 CM2 7 3500 KOOSV | Mylar 0.027 nF =50V +10%
R221 RD3 3 3251 JSOOO | Carbon 33k ohm 1/4W +5% C13 CM5 6 2500 KOOSV | Mylar 0.0056 uF 50V +10%
R222 RD2 2 2251 JSOOO | Carbon 2.2k ohm 1/4W +5% C14 CC2 2 1500 KEOQOC | Ceramic 220pF SOV +10%
R223 RD3 3 1251 JSOOO | Carbon 330 ohm 1/4W +5% 1C1 4 2069 70380 | IC, NE646B
R234 | RD3 3 2251 KVO0QO | Carbon 3.3k ohm 1/4W +10% 141 2 4729 04400 | Staple 12.5
R235 RD1 0 2251 JSOO00 | Carbon Tk ohm 1/4W +5% L1 4 2729 70190 | DOLBY Filter Coil
R236 | RD3 3 3251 KHOOO | Carbon 33k ohm 1/4W +10% R1 RD1 0 2251 KVO00 | Carbon 1k ohm 1/4W +10%
R243 | RD3 9 3251 KVQO0 | Carbon 39k ohm 1/4W +10% R2 RD3 3 2251 KV000 | Carbon 3.3k ohm 1/4W +10%
R244 RD6 8 3251 JSOOO | Carbon 68k ohm 1/4W +5% R3 RD1 0 2251 KVOOO | Carbon Tk ohm 1/4W +10%
R4 RD4 7 3251 KV000 | Carbon 47k ohm 1/4W +10%
R5 RD1 8 1251 KVO0O0 | Carbon 180 ohm 1/4W +10%
R6 RD2 7 4251 KV000 | Carbon 270k ohm 1/4W +10%
R? RD2 0 4251 JV000 | Carbon 200k ohm 1/4W = +5%
R8 ROD1 0 5251 KV000 | Carbon 1M chm 1/4W +10%
RQ RD1 0 5251 KHOOO | Carbon 1M ohm 1/4W_ +10%
LAMP P.C.B. ASSY
4 1329 75030 | Lamp P.C.B. Assy
PL1 4 6129 70151 | Lamp
4 2359 70880 | Fuse Holder
4 2269 32140 | Lamp P.C.B.
RD2 7 0251 KMOOO | Carbon
MECHANISM
7 OU 4 2319 73110 | Leaf Switch (Muting)
Sg 4 2319 72010 | Leaf Switch (Motor)
$10 A 4 2319 72910 | Power Switch Lever (Power)
S11 A\ 42319 72140 | Slide Switch (Voltage)
R245 RD1 0 4251 JSOOO | Carbon 100k ohm 1/4W +5%
R246 RD1 0 2251 JSOO0 | Carbon Tkohm 1/4W +5%
R247 | RD1 03251 KVOOO | Carbon 10k ohm 1/4W +£10%
R248 | RD2 2 1251 KVO00 | Carbon 220 ohm 1/4W +10%
R249 RD1 0 4251 JSOO0 | Carbon 100k ohm 1/4W = +5%
R250 RD2 2 3251 JSO0O | Carbon 22k ohm 1/4W +5%
R251 RD2 7 3251 JSOOO | Carbon 27k ohm 1/4W +5%
R252 RD2 7 3251 JSOOO | Carbon 27k ohm 1/4W +5%
R253 RD4 7 2251 JSOOO | Carbon 4.7k ohm 1/4W +5%
R254 RD1 0 2251 JSOOO | Carbon 1k ohm 1/4W +5%
R255 RD2 4 3251 JSOOO | Carbon 24k ohm 1/4W +5%
R256 | RD8 2 4251 KV000 | Carbon 820k ohm 1/4W +10%
R257 | RD1 0 4251 KV000 | Carbon 100k ohm 1/4W +10%
R258 | RD3 3 3251 KVOOO | Carbon 33k ohm 1/4W +10%
R259 RD1 5 3251 JSOO0O | Carbon 15k ohm 1/4W +5%
R260 RD1 0 4251 JSOQ0 | Carbon 100k ohm 1/4W +5%
R261 RD5 6 2251 JSOOO | Carbon 5.6k ohm 1/4W 25%
R262 RD1 8 1251 JSOOO | Carbon 180 ohm 1/4W +5%
R263 RD3 9 2251 JSO00 | Carbon 3.9k ohm 1/4W +5%
Sn
~onyno =
27 ohm
R264 | RD27 2251 JSO0O | Carbon 27k ohm 1/4W +5% 4 2319 73360 | Slide Switch Lever (for $3)
R265 RD8 2 2251 JSOOO | Carbon 8.2k ohm 1/4W +5% CN1 4 2359 72986 | Connector 3P Assy
R266 | RD103251 JSOOO | Carbon 10k ohm 1/4W +5% J1 4 2359 73903 | Jack 1P (Microphone)
R267 RD4 7 2251 JSOOO | Carbon 47k ohm 1/4W +5% J2 4 2359 73903 | Jack 1P (Microphone)
R268 | RD27 3251 JSOOO | Carbon 27k ohm 1/4W +5% J3 4 2359 73902 | Jack 1P (Headphone)
4 2379 70560 | Terminal
4 2379 70650 | Terminal Ring
HD1 4 2429 71550 | R/P Head
R269 RD2 7 3251 JSO00 | Carbon 27k ohm 1/4W +5%
R270 RD2 7 3251 JSOOO | Carbon 27k ohm 1/4W +5%
RD2 7 3251 JSOOO | Carbon 27k ohm
