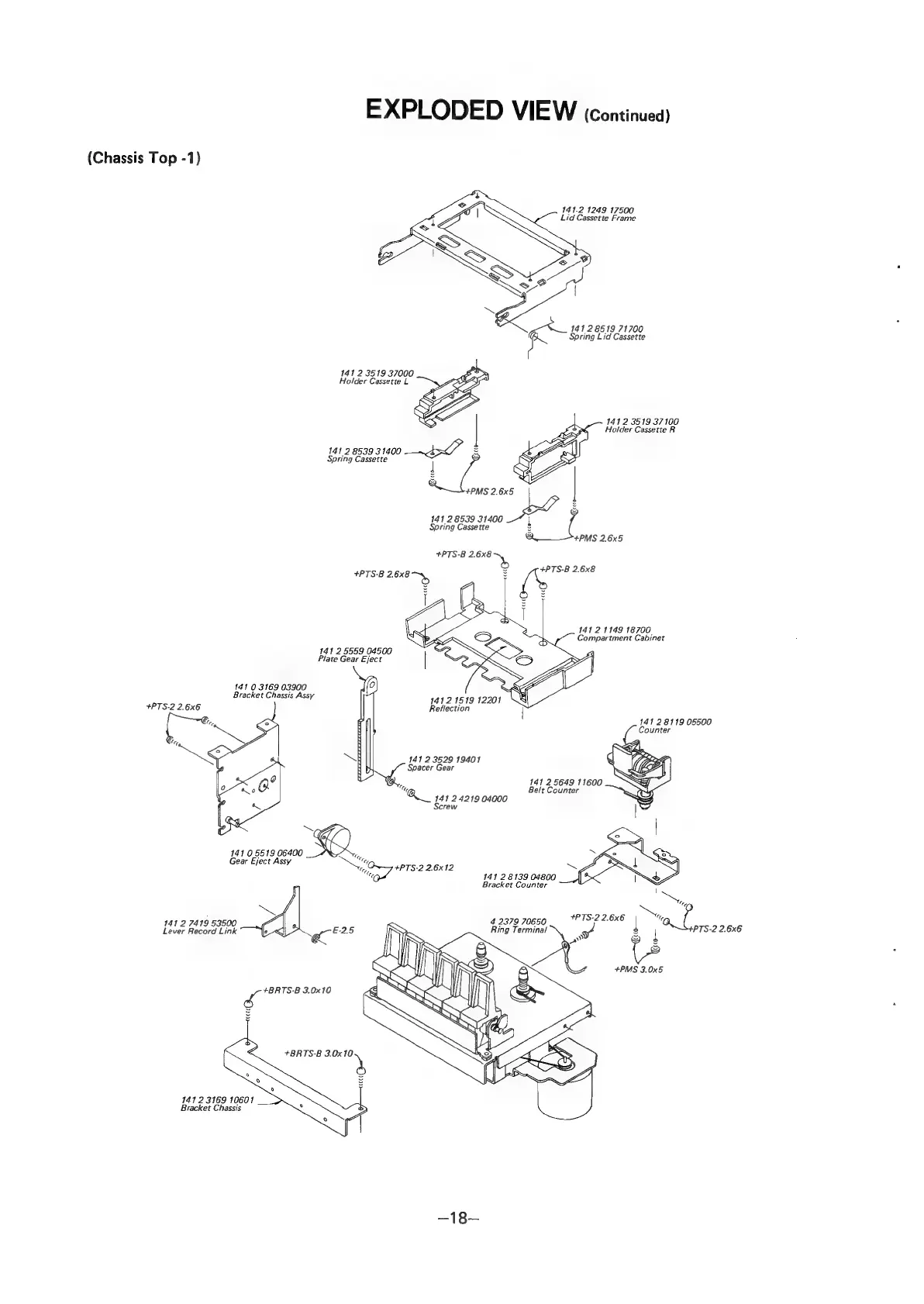

Sanyo RD 30 - Exploded View - Chassis Top Assembly

EXPLODED
VIEW
(Continued)
(Chassis Top -1)
141.2 1249 17500
Lid Cassette Frame
141 28519 71700
Spring Lid Cassette
141 2 3819 37100
Holder Cassette R
4
141 2 3519 37000
Holder Cassette L
141 2 853931400
Spring Cassette
c¢-____—_
141 2 8539 31400 |
Spring Cassette 7
© +PMS 2.6x5
+PTS-B 2.6x8 a
141 2 1149 18700.
Compartment Cabinet
141 25559 04500
Plate Gear Eject
141 0.3169 03900
Bracket
Chassis
Assy
1412
1519
12201
+PTS-2 2.6x6 Reflection
141 28119 05500
Counter
141 23529 19401
Spacer Gear
7 JA! 2.5649 11600
7, eft Counter
Q__ 14124219 04000
Screw
: ™~
™
141 05519 06400 ;
Gearblect Assy ee 4PTS-2 2.6x12
ce yay 2 & Ae 04800
- racket Counter
4 2379 70650
Ring Terminal
141 2 7419 53500
Lever Record Link
¢ | +PTS-2 2.6x6
+BRTS-B 3.0x10
141 23169 10601
Bracket Chassis
