Sanyo RD 30 - Exploded View - Chassis Bottom Assembly

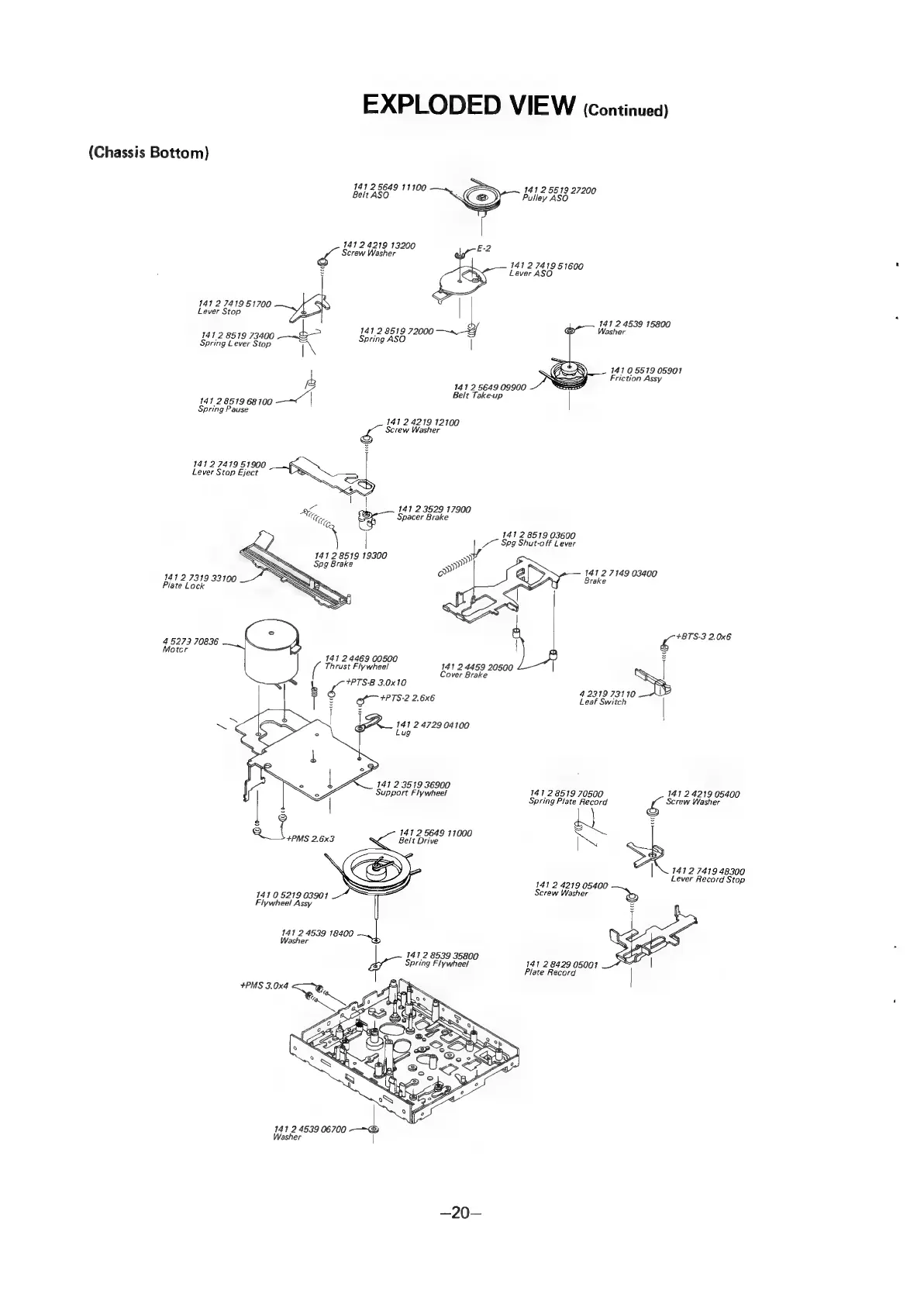

EXPLODED VIEW (Continued)
(Chassis Bottom)
141 2 5649 11100
Belt ASO
141 2.4219 13200
De Screw Washer
1412741951700
Lever Stop
do 141 2 8519 72000
141
2
8519
73400
—~G
Spring
ASO
Spring Lever Stop
ie
ad
141 2.8519 68100 ee
Spring Pause
141 24219 12100
4 Screw Washer
1412 7419 51900
Lever Stop Eject
141 28519 19300
Spg Brake
141 2 7319 33100
Plate Lock
4 5273 70836
loter
141 24469 00500
Thrust Flywheel
Lo +PTS-B 3.0x10
|
Of FPTS:2 2.6x6
GA. 1412472904100
Lug
147 23519 36900
Support Flywheel
141 2 5649 11000
Belt Drive
14105219 03901
Flywheel Assy
141 2 4539 18400
Washer
—b
Pe 141 2 8539 35800
Spring Flywheel
141 2 4539 06700 _t
We
flasher |
—~20—
141 2 5649 09900
Beit Take-up
|
a | 141 23529 17900
Ng,
or
Spacer
Brake
.
141 2 4459 20500
Cover Brake
141 2 5519 27200
Pulley ASO
141 2 7419 51600
Lever ASO
141 2 4539 15800
Washer
14105519 05901
Friction Assy
141 2 8519 03600
/. Spg Shut-off Lever
14127149 03400
Brake
& +BTS-3 2.0x6
| Sy
4 231973110
Leaf Switch |
141 28519 70500
141 24219 05400
Spring Plate Record b Screw Washer
ie
1412 7419 48300
Lever Record Stop
141 2 4219 05400
Screw Washer %®
141 28429 05001
Plate Record
