Sanyo SGP-E70J2GU2 - Page 14

Outdoor Unit
B - 9
Product number

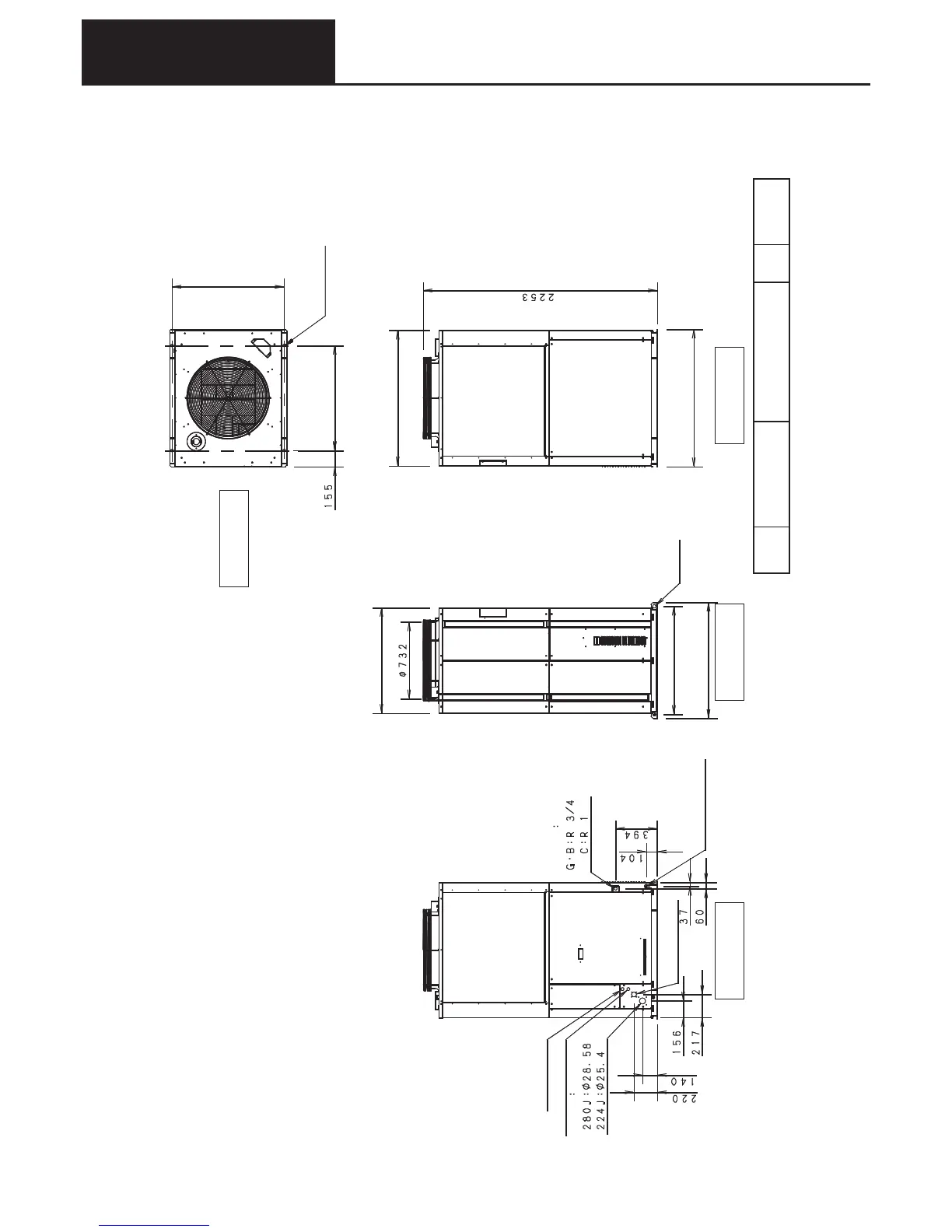

External dimensions drawing Scale
SGP-E70J2GU2 SGP-E90J2GU2
Free
Rear View Left View
Top View
4-φ24 (for anchors)
1000 (anchor pitch)
1060 (anchor pitch)
1310 (frame width)
1290 (external cladding)
1030 (suspension holes)
1106 (frame width)
4-φ30 (suspension holes)
1000 (external cladding)
Inter-unit cable port (φ28)
Electrical power supply port (φ28)
Exhaust gas drain hose (φ27 rubber hose)
Liquid refrigerant pipe : φ12.7
Gas refrigerant pipe
Fuel gas port
Front View
(1)70, 90 Type
3. External dimension drawings
