Separately sold parts
F - 5
Leg support fitting
Blow out
extension duct
Exhaust gas top opening
set on the fan side (rear side)
Adaptor for
exhaust gas extension
● Cautions when using an anti-vibration platform
1) Exhaust gas extension is also possible when an anti-vibration platform is used.
2) If the exhaust gas pipe extension is 500m or less, and installed vertically, then securing is not necessary.
3) For other cases the exhaust gas extension must be secured, using installation fittings, bolts/screws of the
top plate of the unit, etc.
4) For an example, see Figure 7.
●Cautions regarding installing the blow out extension duct
1) If a blow out extension duct is installed, there are occasions when it is difficult to use installation fittings,
etc., because of the shape to the duct. On those occasions, use wire or other suitable means to secure the
duct, as well as bolts and screws of the unit top plate.
2) For an example using support legs, refer to Figure 10.

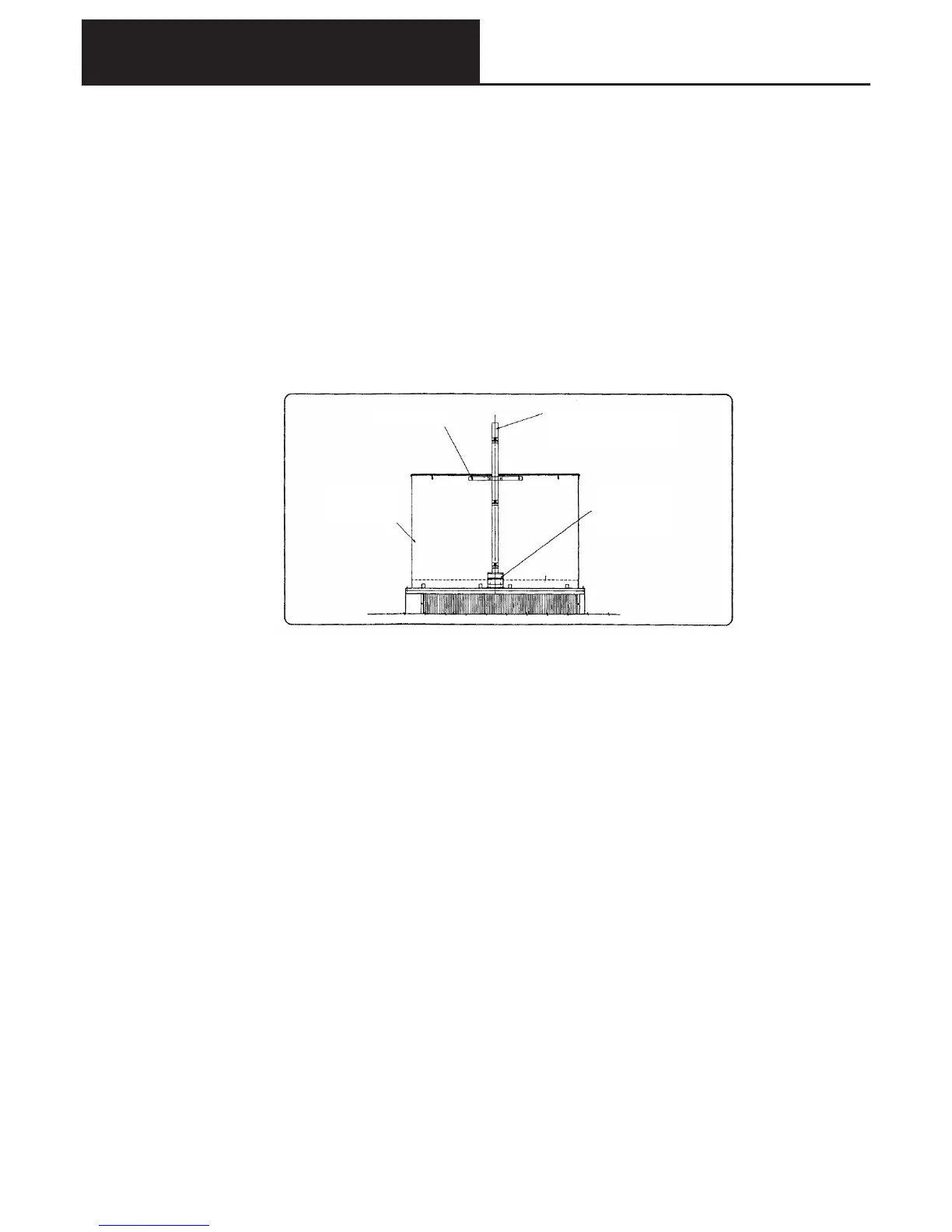

Figure 10
