9-6. Removing Indoor Fan Motor

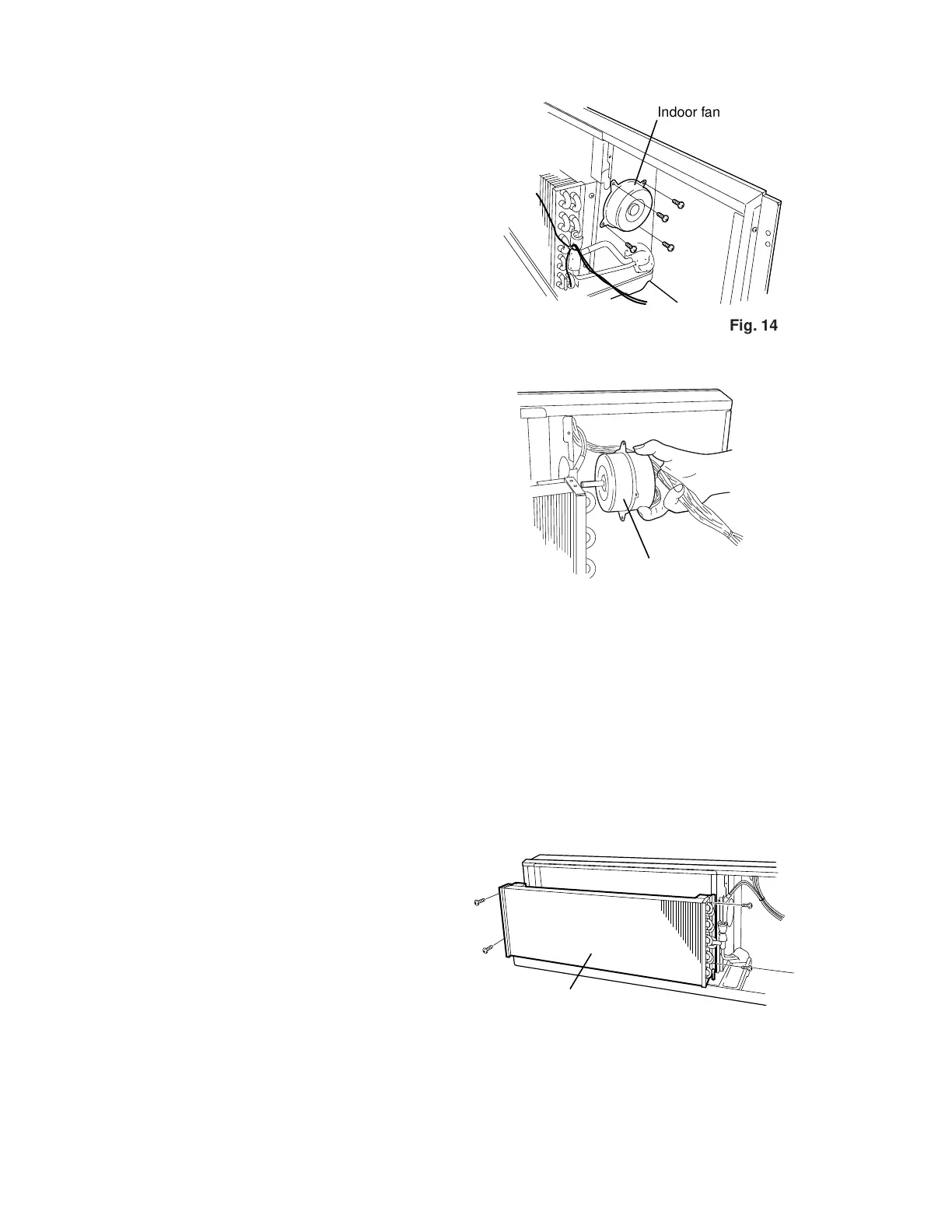

(1) Remove the 4 screws holding the indoor fan motor.
(Fig. 14)
(2) Slide the motor out of the indoor fan hub. (Fig. 15)
9-7. Removing Evaporator
(1) Remove the air outlet frame ass'y. (Fig. 7)
Refer to “9-4. Removing Electric Heater.”
(2) Remove the screws holding the evaporator.
(Fig. 16)
