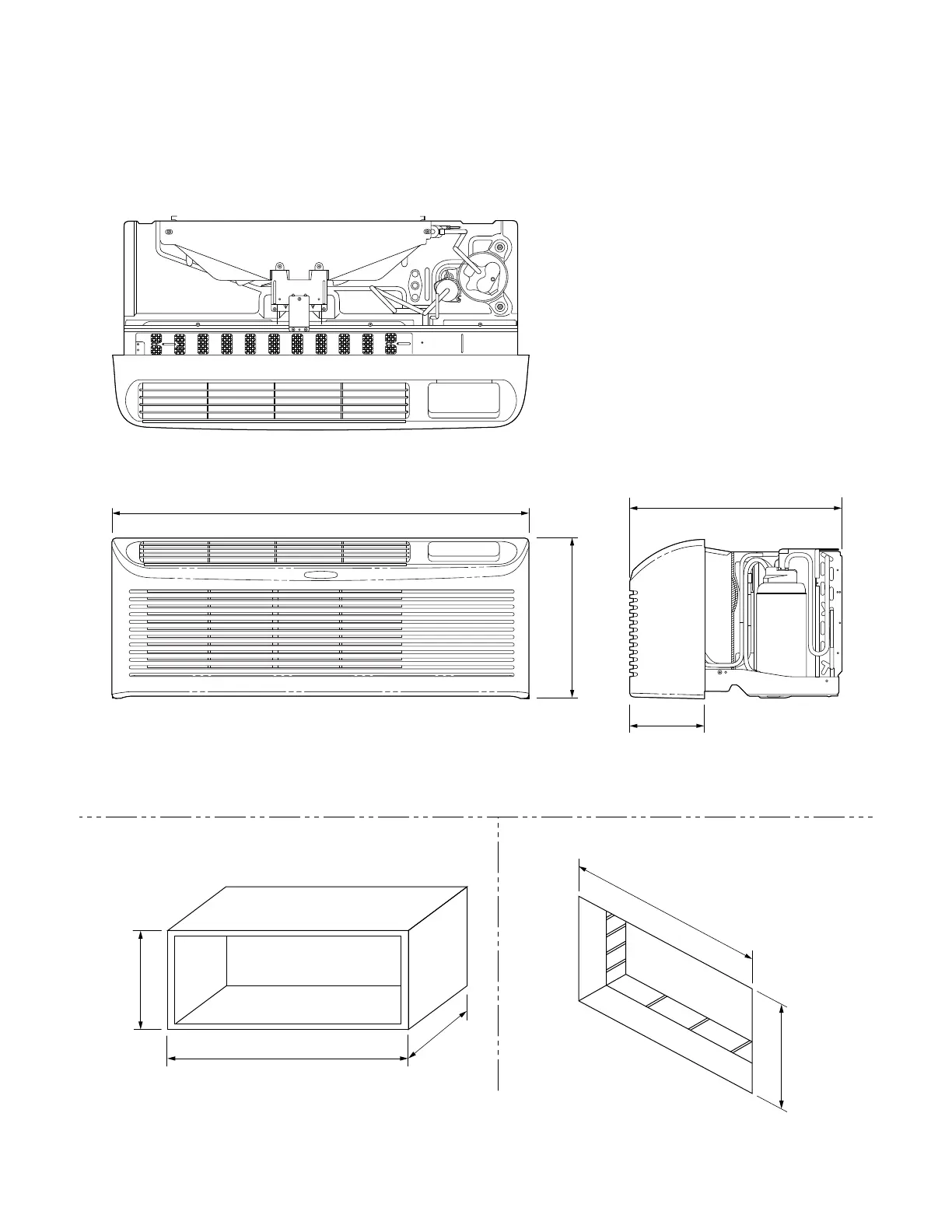

3. DIMENSIONAL DATA
Models STW * * * * C2
Models STW * * * * H2
■ Wall Sleeve Dimensions ■ Dimensions of Wall Opening
■ Unit Dimensions
Minimum wall
sleeve opening
Wall opening of
42-1/4
" x 16-1/4 "
is required
41-1/8 "
15-15/16
"
7-1/2 "
21-1/2 "
Top view
Front view Side view
42
1
/ 4 "
16
1
/ 4 "
13-
3
/ 4 "
42"
16"
Unit: inch
Unit: inch
