Depending on the conditions of use,
installation and environment, please be
sure to make the appropriate settings and
adjustments. If you need help with
installation and/or settings, please consult
your dealer.
CONTENTS
PRECAUTIONS...................................................2
PARTS NAMES...................................................3
MOUNTING THE LENS ......................................5
CONNECTIONS..................................................7
SETTINGS...........................................................8
TROUBLESHOOTING.......................................12
SPECIFICATIONS .............................................13

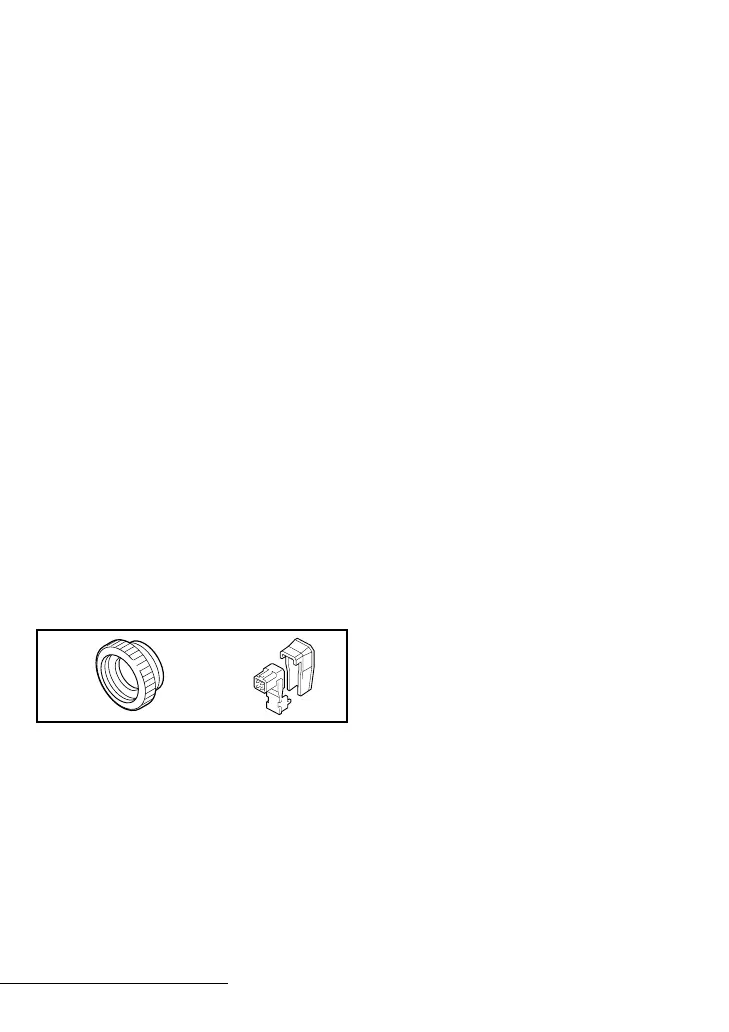

ACCESSORIES
1 C mount adaptor (5 mm)................ 1 pc.
The C mount adaptor must be used to
be able to install a C mount lens on the
camera.
2 Lens iris plug (4-pin) ........................1 pc.
12
FEATURES
• Built-in interline transfer method 1/3"
CCD
– Model VCB-3100P approx. 320,000
picture elements
– Model VCB-3170P approx. 470,000
picture elements
• Low smear, anti-blooming, low lag, no
burning and no geometric distortion
using the CCD solid state image device.
• 100% solid state components giving
excellent immunity to shock and
vibration
• Not subject to interference from
magnetic or electrostatic fields
• High sensitivity, minimum required
illumination of 0,1 lux with F1.2 lens
• Horizontal resolution
– Model VCB-3100P more than 400 TV
lines
– Model VCB-3170P more than 560 TV
lines
• Built-in high speed electronic shutter
(with selectable speed setting by
internal switches)
• New backlight compensation function
(Model VCB-3170P: active when using
an auto-iris lens)
• Externally adjustable flange back
(mechanical focus)
• Low power consumption and quick start
L73M5, N5/XE GB 1996, 10, 31
English 1
