MOUNTING THE LENS
If using Sanyo (DC type) auto-iris lens
• VCL-CS8LY: Standard angle, f= 8 mm
• VCL-CS4LY: Wide angle, f= 4 mm
• VCL-CS2LY: Ultra-wide angle, f= 2.8 mm
If using a VIDEO type auto-iris lens
• Set the ALC and LEVEL controls on the lens to adjust the
iris. Normally the ALC volume should be turned all the
way to Av (Average).
• Depending on the type of lens used, the lens may not
perform properly. In such a case, adjust the LEVEL
volume on the lens casing to correct.
Compatible auto-iris lenses
• f= 9 mm (Standard angle), f= 12 mm (Telephoto), f= 16
mm (More telephoto)
(A)
1
2
(Video signal connections)
: VIDEO IN
: VIDEO OUT
CONNECTIONS

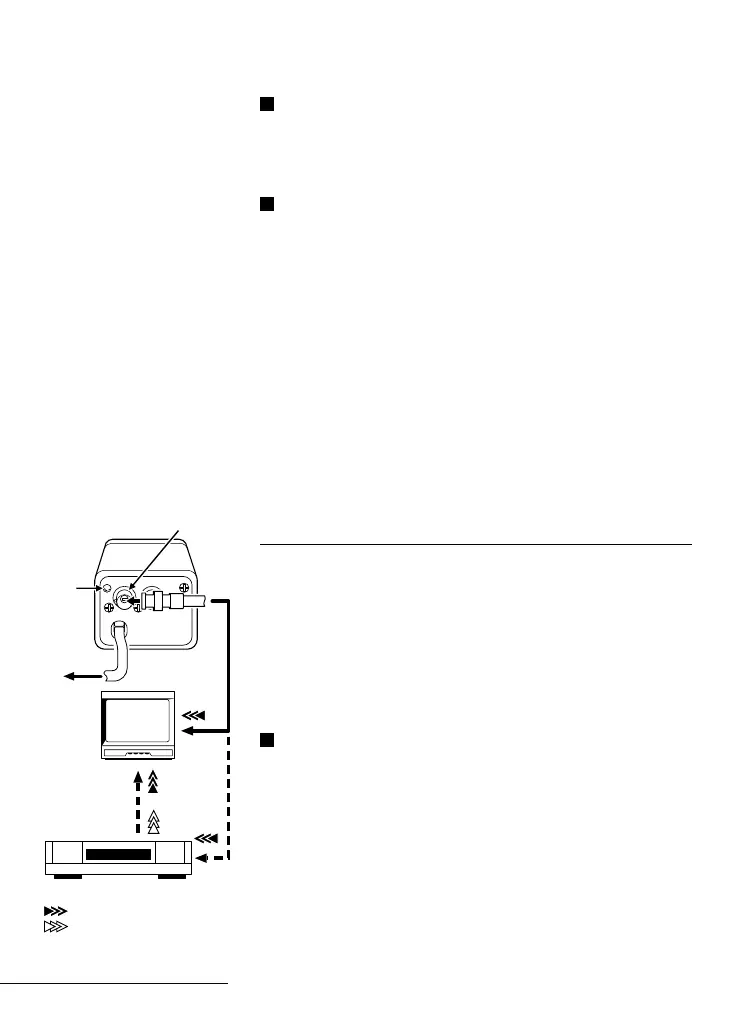

Basic connection for monitoring or recording
The peripheral devices (VCR, monitor, lens, etc.) and
cables are sold separately.
1 Make the video signal connection between the camera
and the monitor or time lapse VCR.
2 Insert the plug of this power cord into a wall outlet.
The POWER indicator (A) will light. Adjust the picture on
the monitor using the Brightness and Contrast controls.
Coaxial cable type and maximum length
• Cable type RG-59U (3C-2V), 250 m maximum.
• Cable type RG-6U (5C-2V), 500 m maximum.
• Cable type RG-11U (7C-2V), 600 m maximum.
CAUTION:
• The RG-59U type cable should not be run through
electrical conduits or through the air.
• Using CCTV/Video-grade coaxial cable.
L73M5, N5/XE GB 1996, 10, 31
English 7
