Sanyo VCb-3100P - Lens Iris Output Connector; Camera Setup Section; Mounting the Lens; Lens Mount Check

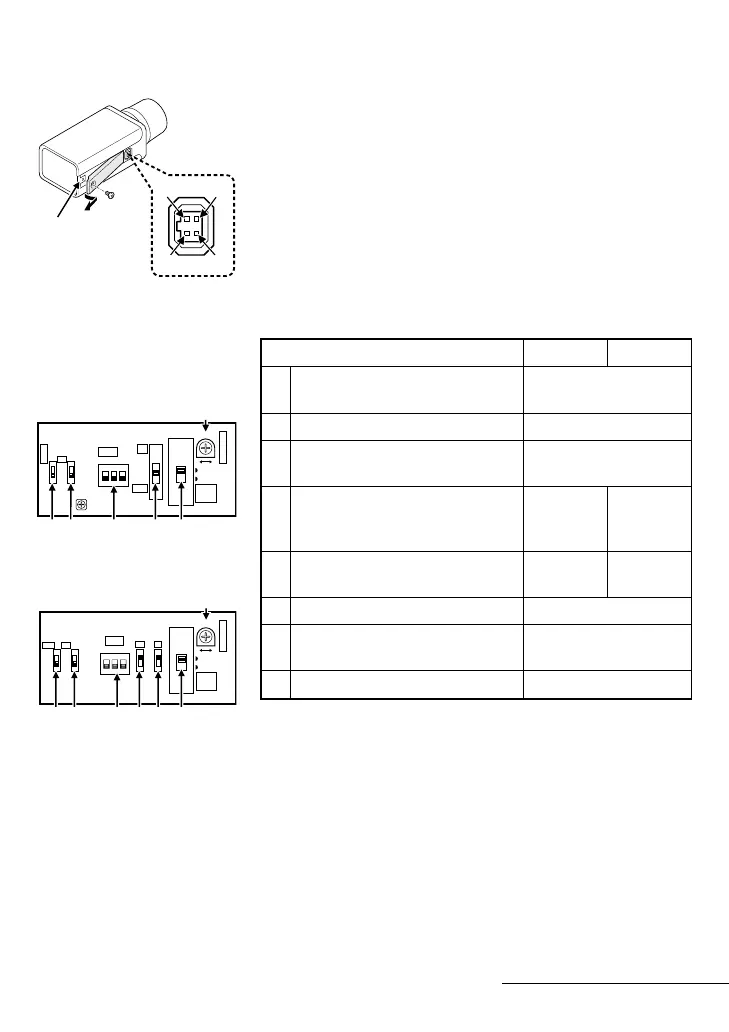

8 Lens iris output connector (4 pin)
This 4-pin connector is used to send the DC control signal
and power supply to an auto-iris type lens.
9 Camera setup section (under the cover)
This unit factory settings are as indicated below. These
settings are for when using a 1/3 inch CS mount DC
(without EE internal amplifier) type lens. However, if due to
installation conditions or environment the settings may need
to be modified for best results (see page 8 "SETTINGS"). To
access the controls, remove the cover fixing screw, then
remove the cover.
Control name VCB-3170P VCB-3100P
a
Internal/Line lock switch
(SYNC)
INT
b
Auto gain control switch (AGC)
ON
c
High speed electronic shutter
switches (E.S.)
All OFF: 1/50 sec
d
Electronic iris (EI)/
Backlight compensation (BLC)
switch
OFF
–
e
Backlight compensation
switch (BLC)
–
OFF
f
Electronic iris switch (EI) –
g
Auto-iris lens switch
(A.I. LENS)
DC
h
Lens iris level volume (LEVEL)
about centre
Note:
• The EI/BLC switch d is used for an auto-iris lens,
therefore the two settings cannot be used simultaneously.
• When using a 1/2 or 2/3 inch C mount VIDEO (with EE
internal amplifier) auto-iris type lens, set the A.I. LENS
switch to the VIDEO position.
9
4
1
2
3
8
ON
OFF
ON
E. S.
BLC
L
E
V
E
L
DC
VIDEO
A. I.
LENS
LH
VR301
ON
123
EI
OFF
ON
SYNC
L-L
INT
VR302
AGC
h
[VCB-3170P]
ab c d g
E. S.
L
E
V
E
L
DC
VIDEO
A. I.
LENS
LH
VR301
ON
123
OFF
ON
L-L
INT
AGCSYNC
ON
OFF
BLC EI
h
ab c f ge
[VCB-3100P]
L73M5, N5/XE GB 1996, 10, 31
4 English
