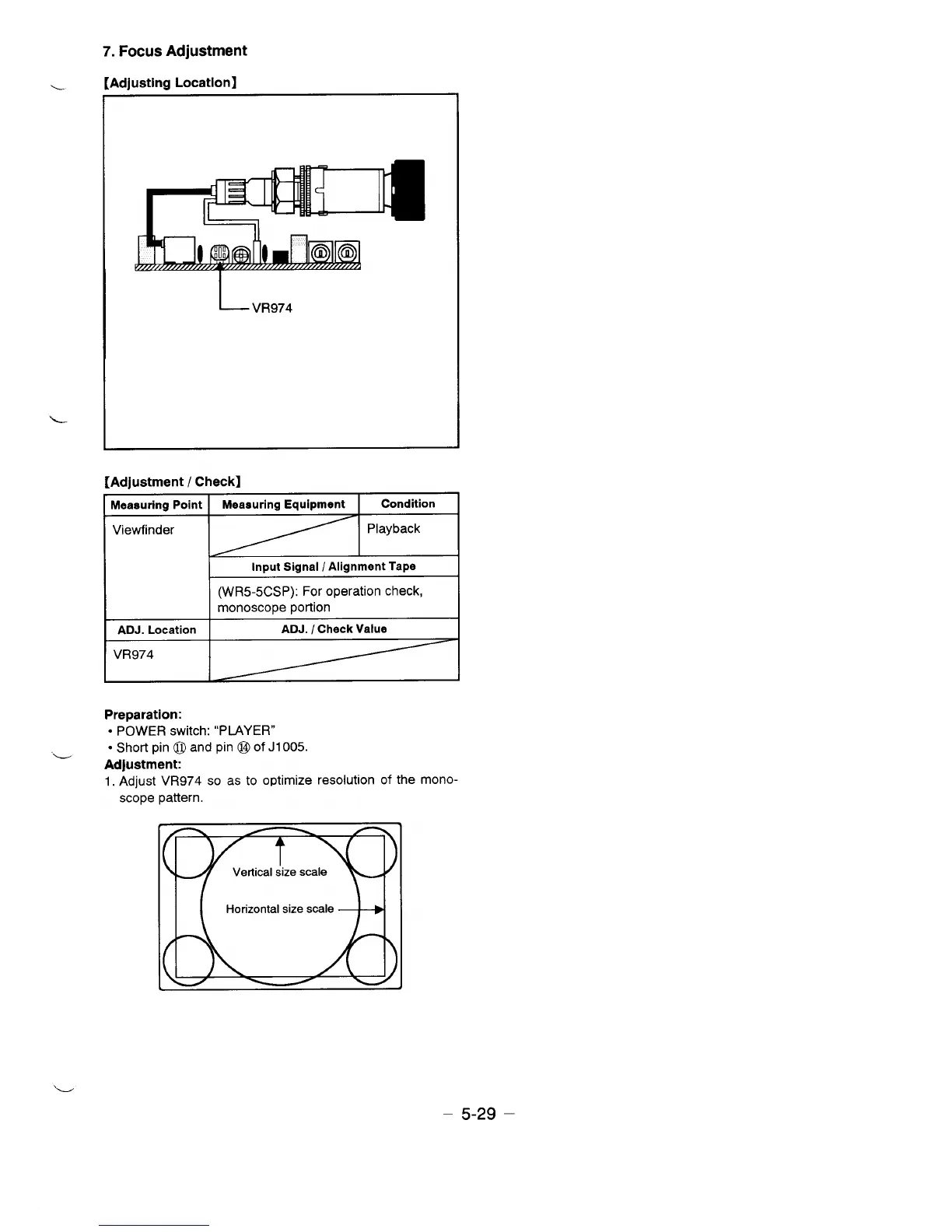

7. Focus Adjustment
.
[Adjusting Location]
—
L
L VR974
1
[Adjustment / Check]
Meaauring Point
Meaauring Equipment
Condition
Viewfinder
Playback
Input Signal / Alignment Tape
(WR5-5CSP): For operation check,
monoscope portion
ADJ. Location
ADJ. / Check Value
VR974
Preparation:
● POWER switch: “PLAYER”
● Short pin @ and pin @ of J1OO5.
Adjustment:
1. Adjust VR974 so as to optimize resolution of the mono-
scope pattern.
‘---
– 5-29 –
