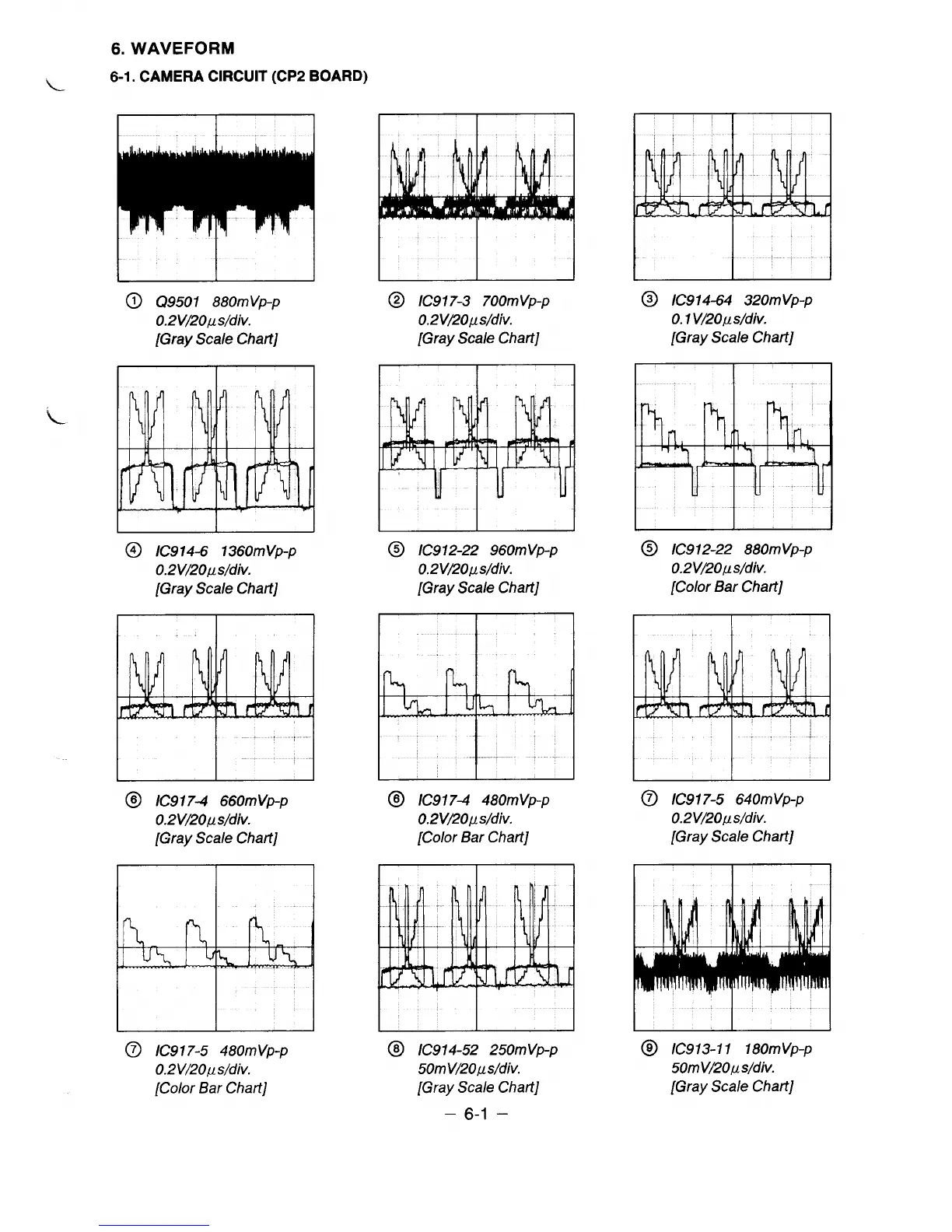

6. WAVEFORM
6-1. CAMERA CIRCUIT (CP2 BOARD)
@ Q9501 880mVp-p
0.2V/20ws/div.
[Gray Scale Chart]
@ IC914-6 1360mVp-p
0.2 V,20ps/div.
/Gray Scale Chart]
@ IC917-4 660mVpp
0.2V/20ps/div.
[Gray Scale Chart]
u
~ IC917-5 480mVp-p
0.2 V/20p s/div.
[Color Bar Chart]
I
@ IC917-3 700mVp-p
0.2V/20ps/div.
[Gray Scale Chart]
I
I
I
I
I
I
@ IC912-22 960mVp-p
0.2 V/20ps/div.
[Gray Scale Chart]
@ IC9174 480mVp-p
0.2V/20ps/div.
[Color Bar Chart]
@ IC914-52 250mVp-p
50mV/20p s/div.
[Gray Scale Chart]
–
6-1 –
@ IC914-64 320mVp-p
0.1 V/20p s/div.
[Gray Scale Chart]
@ IC912-22 880mVp-p
0.2V/20ps/div.
/Color Bar Chart]
~ IC917-5 640mVp-p
0.2V/20@div.
[Gray Scale Chart]
@ IC913-I 1 180mVp-p
50mV/20ps/div.
(Gray Scale Chart]
