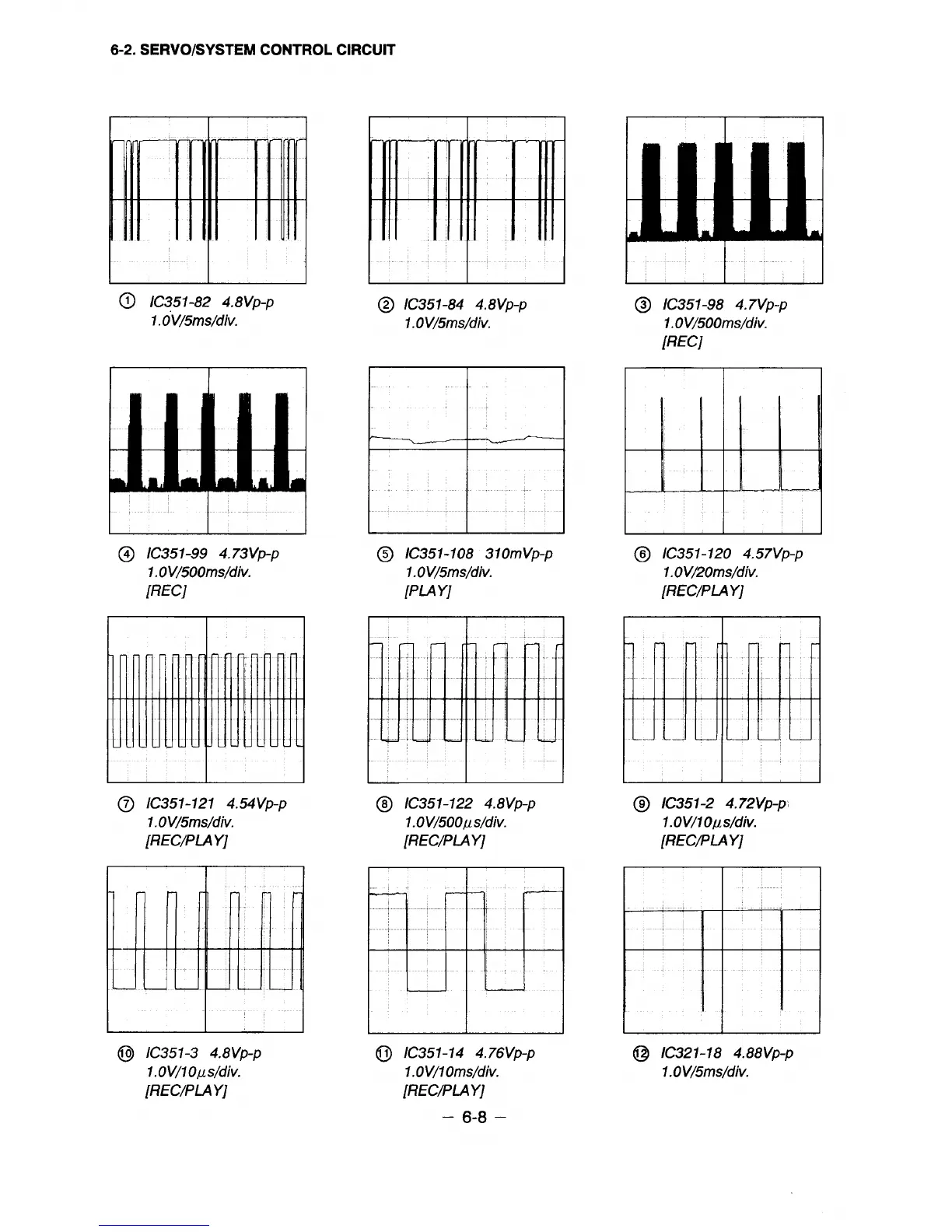

Sanyo VM-EX220P - Servo;System Control Circuit Waveforms

I
I
I
@ IC351-82 4.8Vp-p
1.OV/5ms/div.
@) IC351-99 4.73vpp
1.OV/500ms/div.
[REC]
~ IC351-121 4.54Vp-p
1.OV/5ms/div.
[REC/PLAY]
@ IC351-84 4.8VP-p
1.OV/5ms/div.
====4=4
@ IC351-108 310mVp-p
1.OV/5ms/div.
[PLAY]
I
I
~
IC351-122 4.8VW
1.OV/500ps/div.
[REC/PLAY]
@ IC351-98 4.7Vp-p
1.OV/500ms/div.
[REC]
@ IC351-120 4.57Vpp
1.OV/20ms/div.
[REC/PLAY]
@ IC351-2 4.72Vp-p
l. OV/10ps/div.
[REC/PLAY]
@ IC351-3 4.8Vp-p
l. OV/10@div.
[REC/PLAY]
I@ IC351-14 4.76VP+
l. OV/10ms/div.
[REC/PLAY]
– 6-8 –
@ IC321-18 4.88VP-P
1.OV/5ms/div.
