Sanyo VM-EX220P User Manual

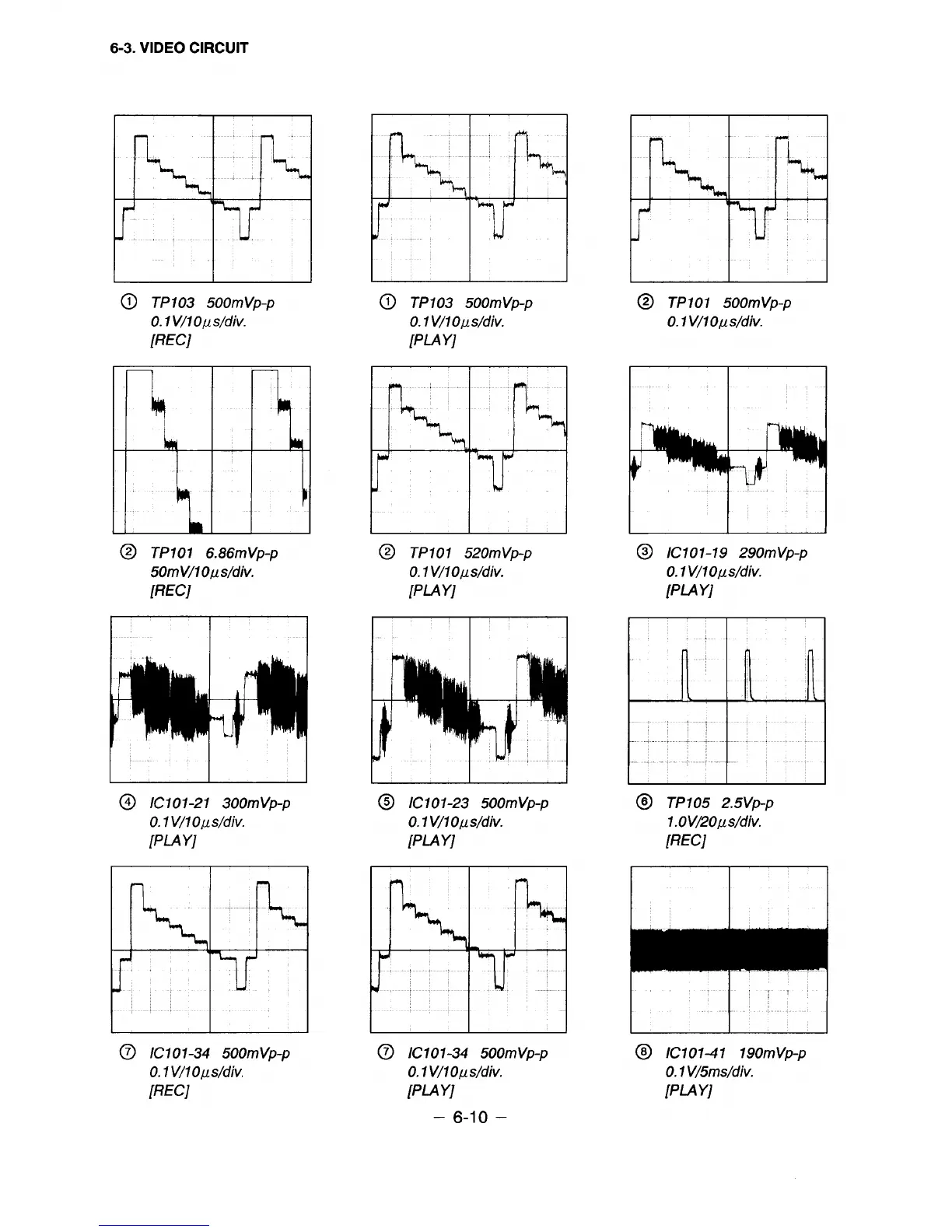

6-3. VIDEO CIRCUIT
Ih
!
,,
@) TP103 500mVp-p
0.1 V/10p s/div.
[REC)
+
P
#u
H
1
m
@ TP101 6.86mVp-p
50mV/10@div.
[REC]
@ IC101-21 300mVp-p
0.1 V/10@/div.
[PLAY]
~ IC1OI-34 500mVp-p
0.1 V/10ps/div,
[REC]
@ TP103 500mVp-p
0.1 V/10~s/div.
[PLAY]
I
I
@ TP101 520mVpp
0.1 V/10p s/div.
[PLAY]
@ TP101 500mVp-p
0.1 V/10ps/div.
@ IC1OI-19 290mVp-p
0.1 V/10,us/div.
[PLAY]
@ ICIOI-23 500rnVP-P
0.1 V/10ps/div.
[PLAY]
@ TP105 2.5VP-P
1.OV/20ps/div.
[REC]
.,,
~ IC101-34 500mVp-p
0.1 V/10@div.
[PLAY]
– 6-10 –
L_L-J
@ IC10141 190mVp-p
0.1 V/5ms/div.
[PLAY]
