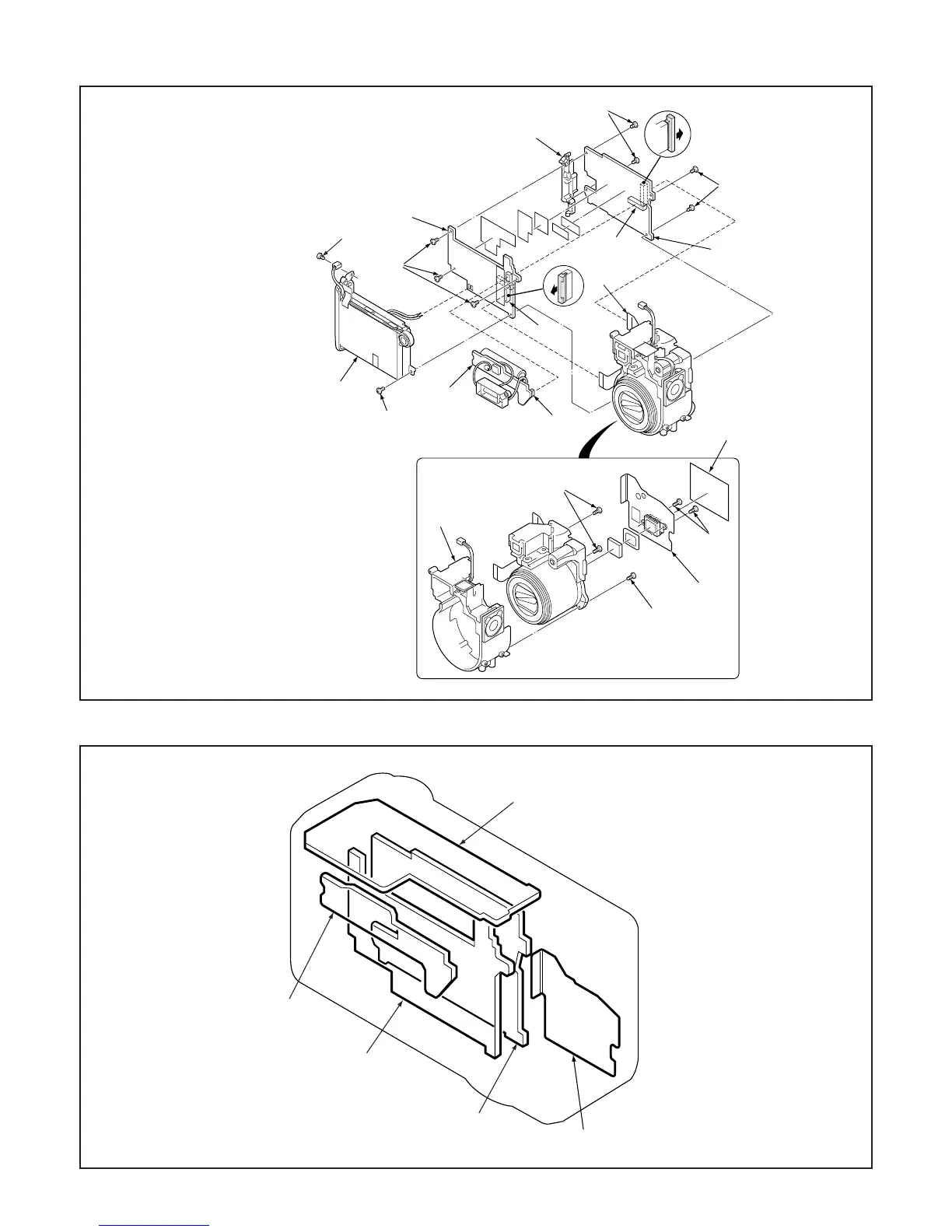

2-3. REMOVAL OF PW1 BOARD, CA2 BOARD, ST1 BOARD AND CA1 BOARD
2-4. BOARD LOCATION
1. FPC
2. Screw 1.7 x 3
3. Screw 1.7 x 4
4. Holder battery
5. Connector
6. ST1 board
7. Three screws 1.7 x 3
8. FPC
9. Connector
10. PW1 board
11. Four screws 1.7 x 3
12. Holder terminal
13. CA2 board
14. Spacer CA1
15. Two screws 1.4 x 3.5
16. CA1 board
17. Three screws 1.7 x 4
18. Holder lens
2
1
3
4
6
5
7
8
9
10
11
11
12
13
14
15
16
18
17
17
SY1 board
ST1 board
PW1 board
CA2 board
CA1 board
