7-2. LCD Gain Adjustment
Adjusting method:
1. Adjust LCD “RGB Gain” so that the amplitude of the CL136
waveform is 1.55 V ± 0.1 Vp-p.
Note:
7-1. LCD RGB Offset adjustment should always be carried
out first.

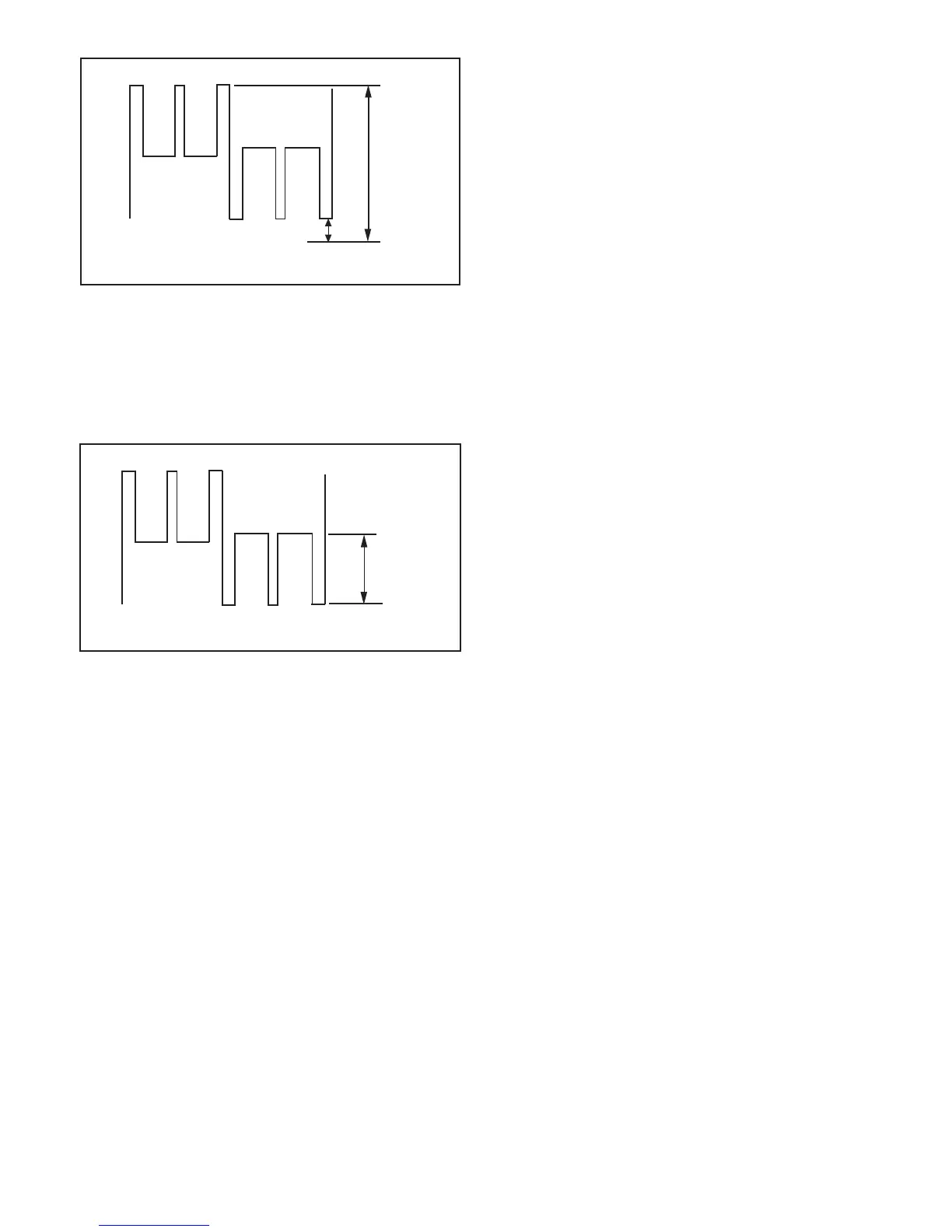

CL136 waveform
1.55 V
± 0.1 Vp-p
CL136 waveform
4.55 ±
0.05 V
0.95 ± 0.05 V
