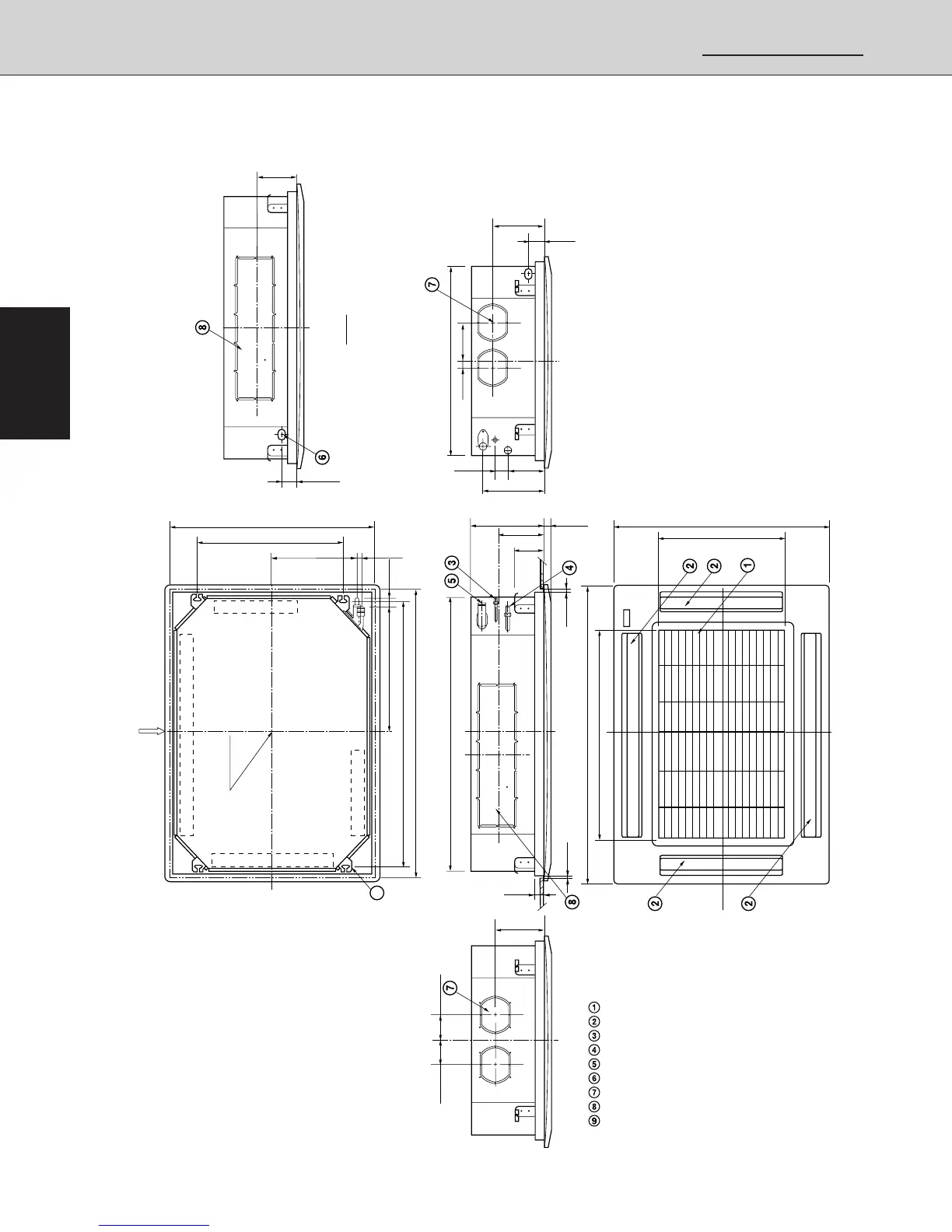

1-4 Dimensional Data
(A) Indoor Unit: XHS3632
45-9/32
41-11/32
31-3/32
19-11/16
12-29/32
1-3/16
8-19/32
4-29/32
33-27/32
43-11/16 (Ceiling opening)
32-9/32 (Ceiling opening)
2-13/32
40-5/32 (Suspention bolt pitch)
Panel center
23-7/32 (Suspention bolt pitch)
19-9/32 1-9/16
Air intake grille
Air outlet
Refrigerant liquid line (ø3/8")
Refrigerant gas line (ø3/4")
Drain connection
Power supply entry
For discharge duct
Humidifier (option) mounting hole
Suspension bolt mounting
X-view
1346_X_S
8-19/32
5-23/321-3/8
8-9/32
2-3/8
29-29/32
2-3/4
6-1/2
11-7/32
8-9/32
3-15/16 3-15/16
9
13-15/32 19/32
15/32
1-7/8
15/32
Dimension : inch
