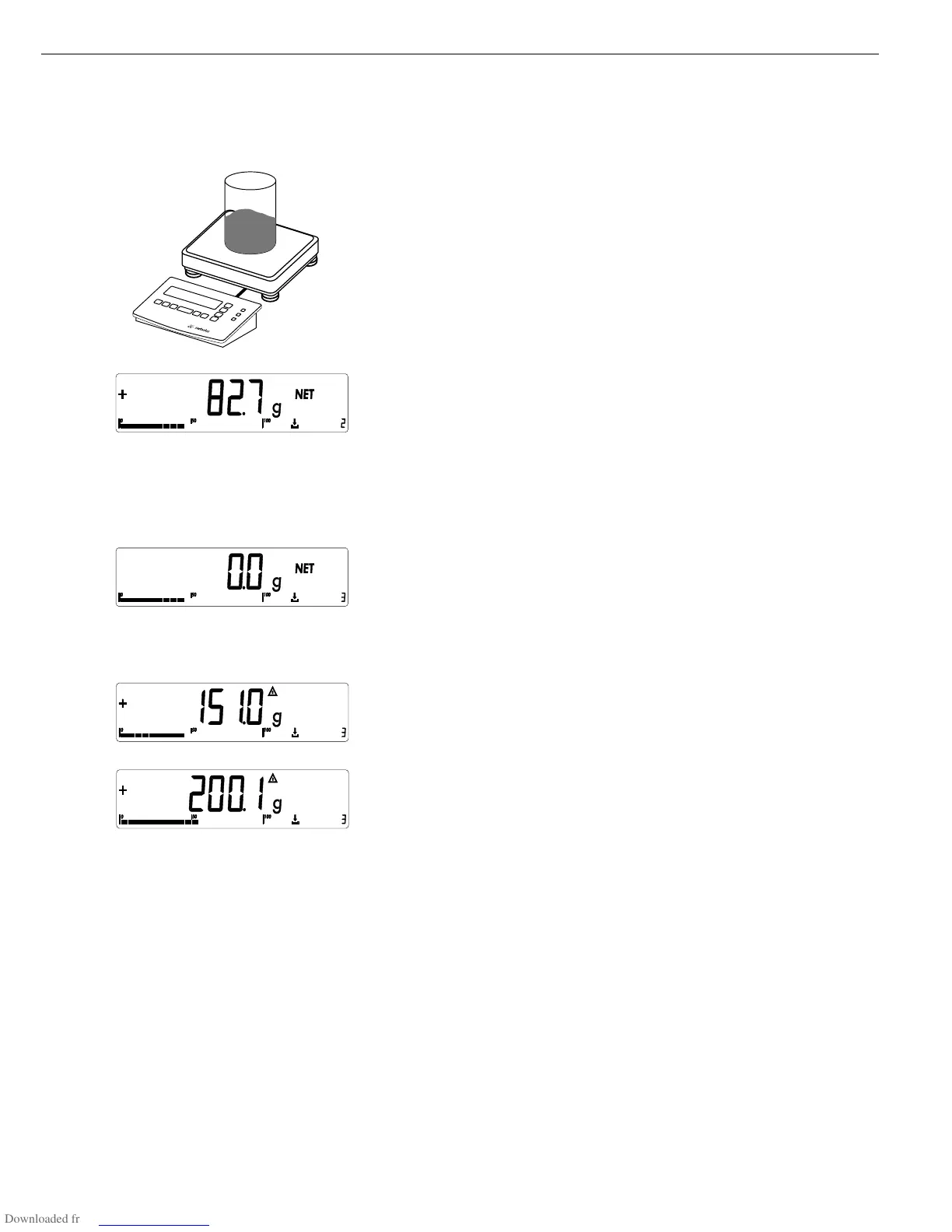

Add the second component (in this example, 82.7 g)
The weight of the second component is displayed
O Store the weight of the second component
Cmp002 82.7 g Component weight is printed
The weighing instrument is tared automatically and the component counter value
is increased by one (prompting the next component)
w Toggle to the Additive mode
The value displayed equals the weight of all components added up to now plus
the current weight
Add the third component (bringing the total to the desired target)
O Store the weight of the third component
Cmp003 49.1 g Component weight is printed
c End the weighing-in operation
Total data record is printed, as configured under 7.9. or 7.10.
Ser.no 12345678 Serial number of the weighing instrument
n3Number of components
S-Comp+ 200.1 g Content of component memory
Cont.T+ 50.0 g Content of tare memory (container weight)
-------------------- Dotted line
49
