10

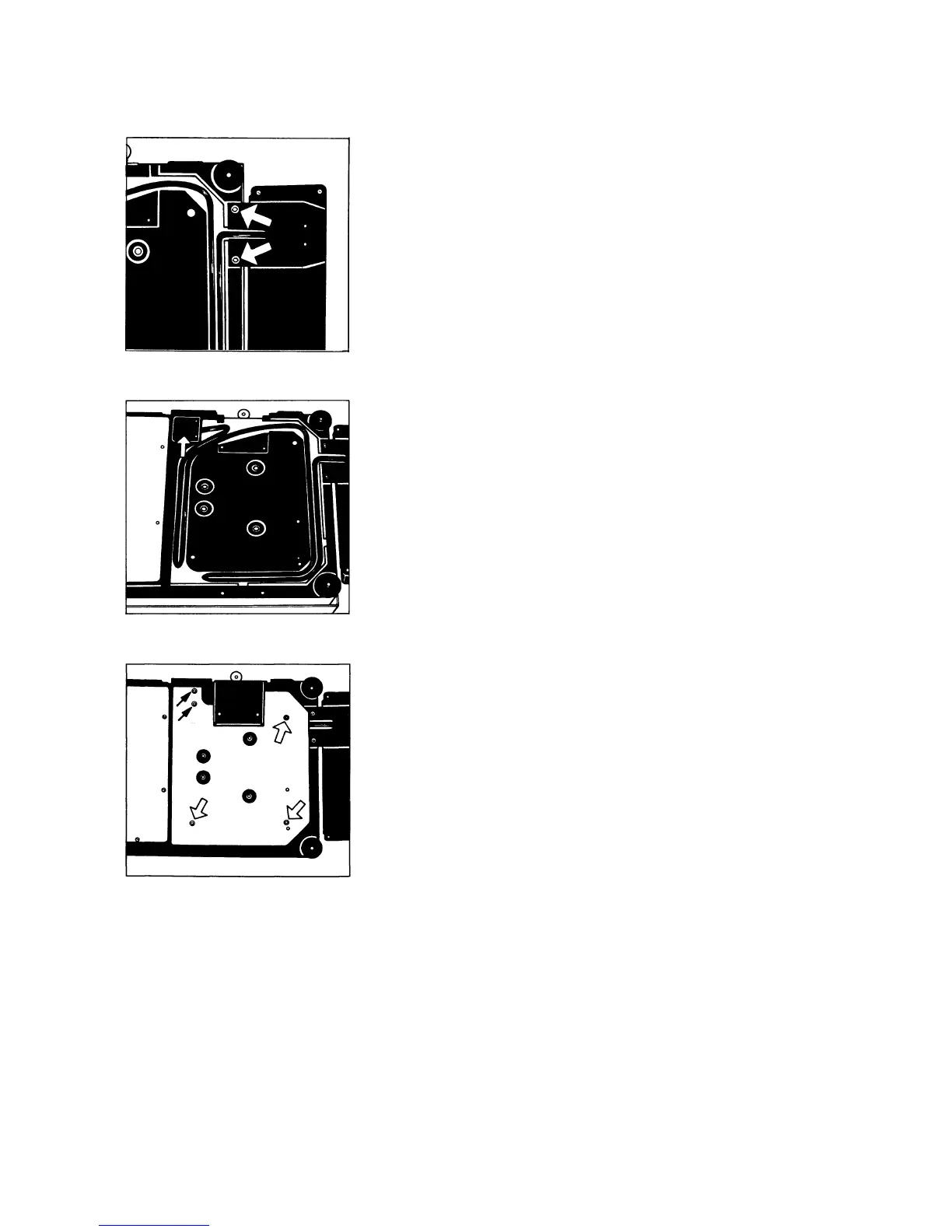

Attach the display unit to the short side of the scale base by tightening
the two screws.
Insert the cable in the raceway as shown in the diagram on the left.
Make sure that the rubber seal (see arrow) is not damaged.
Reposition the base plate and fasten it in place by tightening the three
M3x8 screws (see the large arrows) and the two M3x10 screws (see
the small arrows).
Afterwards, fasten the angular cover plate in place by tightening the
screws.
