Installation
Wall mount (on wall, dose – socket)

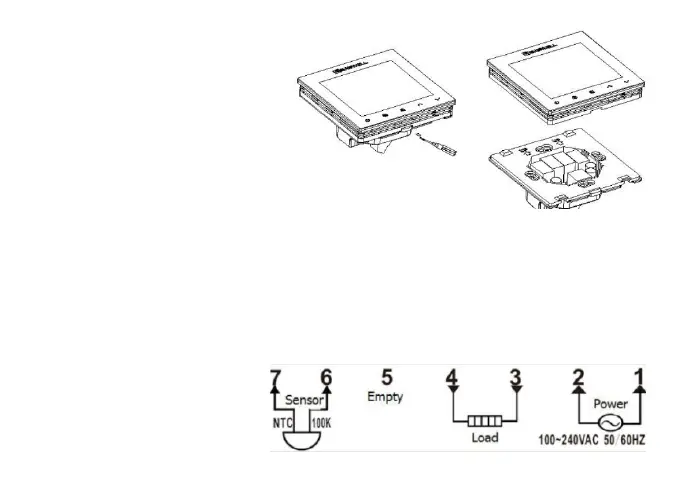

First, remove the back of the thermostat.
Do that by using a straight screwdriver
and carefully rise the front cover from
the bottom up. While doing that you will
notice a small flex cable attached to the
back and the front of the case. Be
careful not tearing it.
You must remove the cable from the
front part of the case. Do it carefully.
Now, the thermostat should be separated on two parts – front
(screen) and back (electrical connection…).
When the parts are separated, take the back part and make the electrical wiring.
Once again, the assembly should be carried out by a qualified person and read all safety instructions
and warnings before assembly. Keep main power off all the time!
Use the electrical contact scheme
on the right side for help.
