Satel GSM-X Quick Installation Guide

2 GSM-X SATEL
The module can also be installed in SATEL’s OPU-4 P enclosure. It is recommended
that you use this enclosure, if you are planning to install the GSM-X-ETH Ethernet
module on the electronics board or the module is to be supplied from a power supply
unit connected to the APS connector (e.g. APS-412). If the module is installed in the
OPU-4 P enclosure, skip the description below and follow instructions contained in the
enclosure manual.
1. Loosen the screws locking the enclosure cover and remove the cover (Fig. 1).
2. Put the enclosure against the wall and mark the position of mounting holes.
3. Drill holes for wall plugs (screw anchors) in the wall.
4. Make an opening or openings in the enclosure base for lead-in cables.
5. Run the cables into the enclosure.
6. Using wall plugs (screw anchors) and screws, fasten the enclosure base to the wall.
Select wall plugs and screws specifically intended for the mounting surface (different for
concrete or brick wall, different for plaster wall, etc.).
1.2.1 Elements inside the enclosure

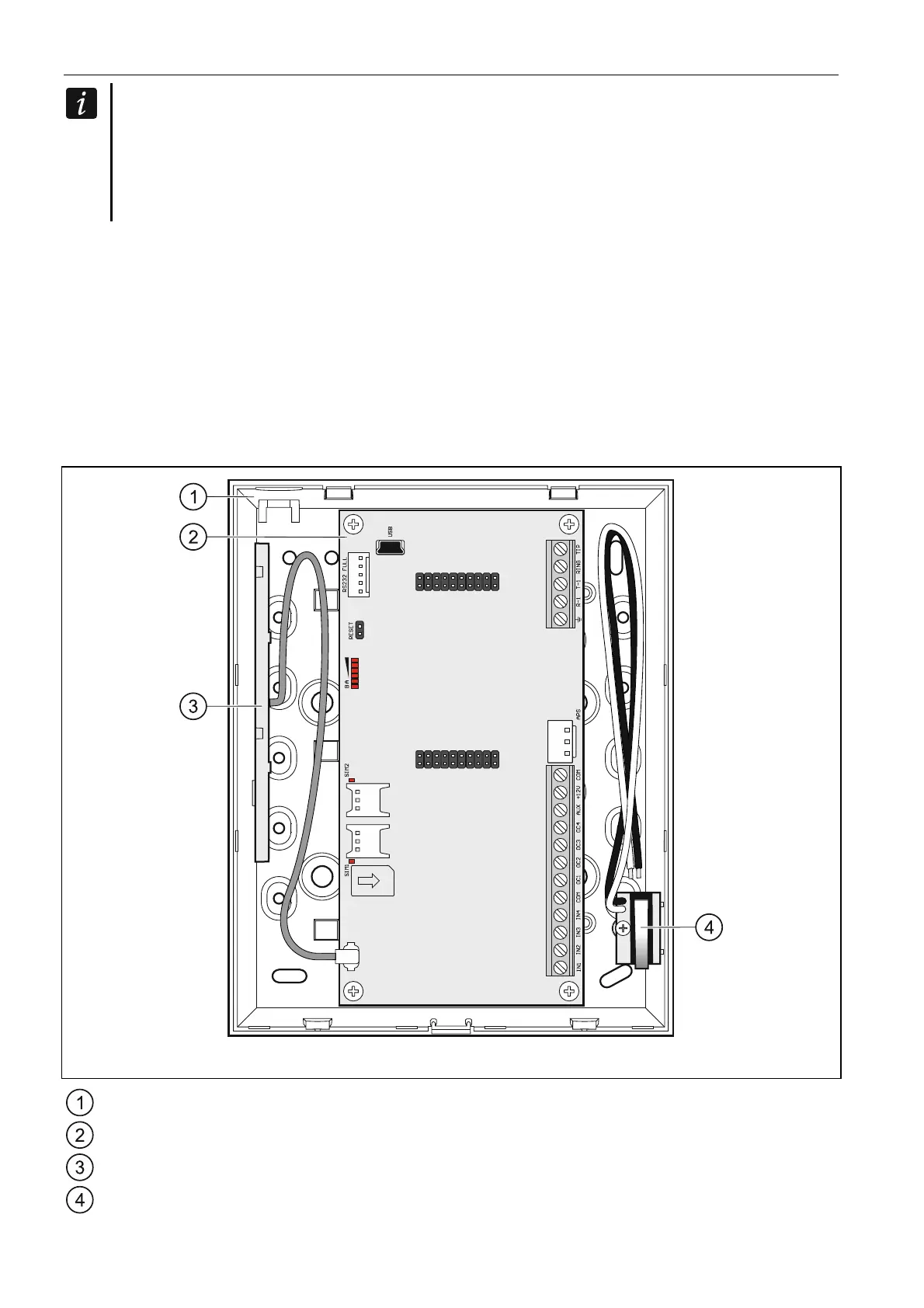

Fig. 2. GSM-X module in OPU-2B enclosure.
enclosure base.
electronics board.
antenna.
tamper switch that can be connected to one of the module inputs.
