SatKing PRO MAX - Installation Equipment List; Mounting Plate Installation

SatKing PRO MAX User manual - 16
Silicone
Receiver cables
Spanner
Controller bracket
Controller cable
Controller
Friction tape
M4x20 (11), M8 Flanged nut (4), Washer (4)
Mounting plate
Power input cable
Cleaner
Power drill
2mm drill bit, over 20mm drill bit
Cable holder & gland

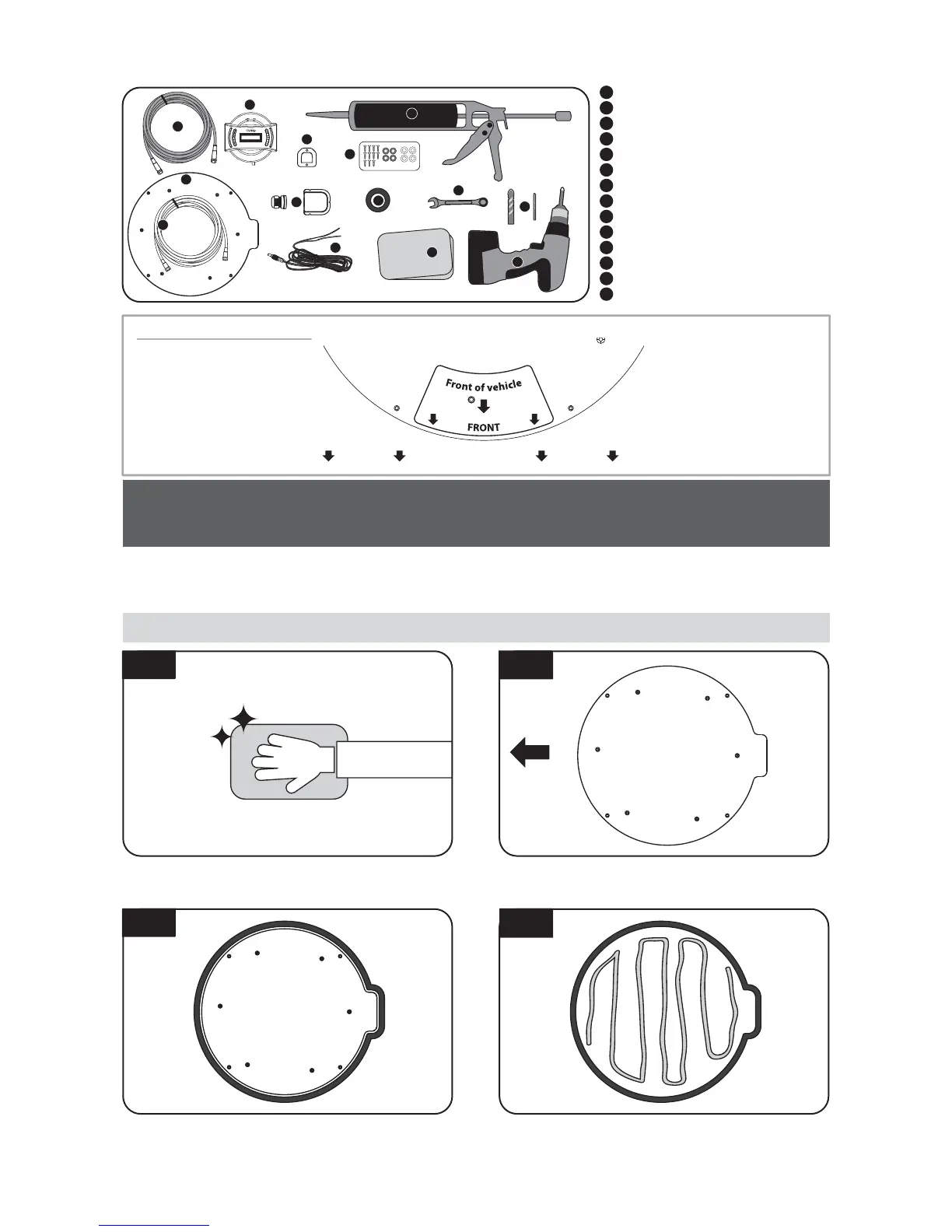

8-2. Equipment for installation
8-3. Installation
A. Mounting plate installation on a vehicle roof
1
3
2
4
6
5
7
9
10
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
8
12
13
14
Put aside the mounting plate to apply silicone
within the attached tape line but leave 2cm
inward gap from the line
Attach friction tape outside of the mounting
plate by 5mm away from the plate edges
A-4
A-2
FRONT
Clean the surface with cleaner
A-3
A-1
Locate mounting plate in the centre of the
vehicle roof
Driving direction
※ Mounting plate direction
Note: Assemble of the PRO MAX and the mounting plate takes place separately.
Once the antenna is mounted you can then use the supplied washers and nuts to
secure the antenna to the base plate.
