Freyja GNSS RTK System User Manual
www.satlab.com.se 5

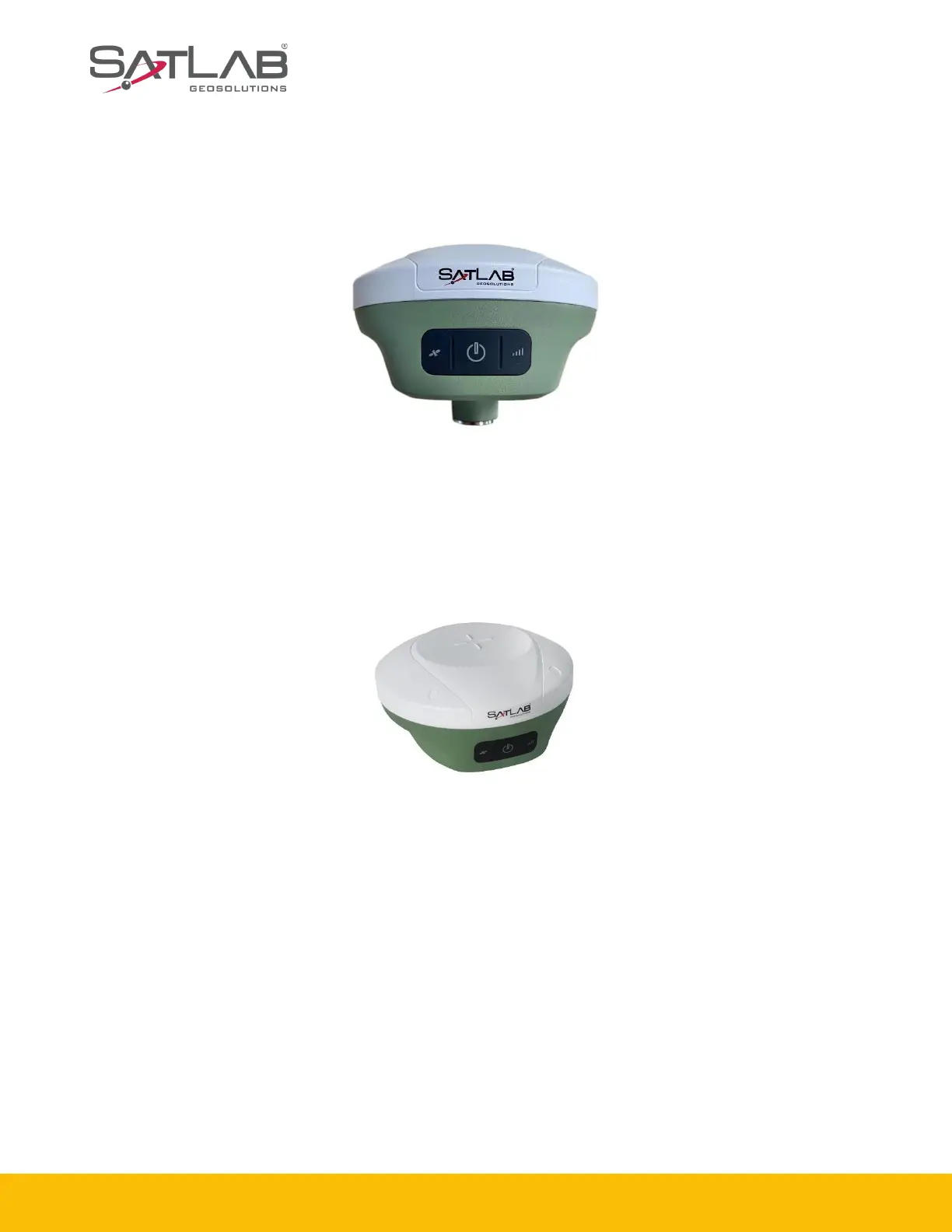

2.1 Overall appearance
The product’s appearance is divided into three parts, including the upper cover, bottom cover and control
panel.
Figure 2-1-1
2.1.1 Upper cover
Figure 2-1-2
2.1.2 Bottom cover
The bottom cover includes the SMA antenna interface, Type-C USB interface.
