LCD TV or set-top-box.
It can be used in series with other modulator so the number
of channels in the coaxial cable no the SMATV system can be
increased as desired.

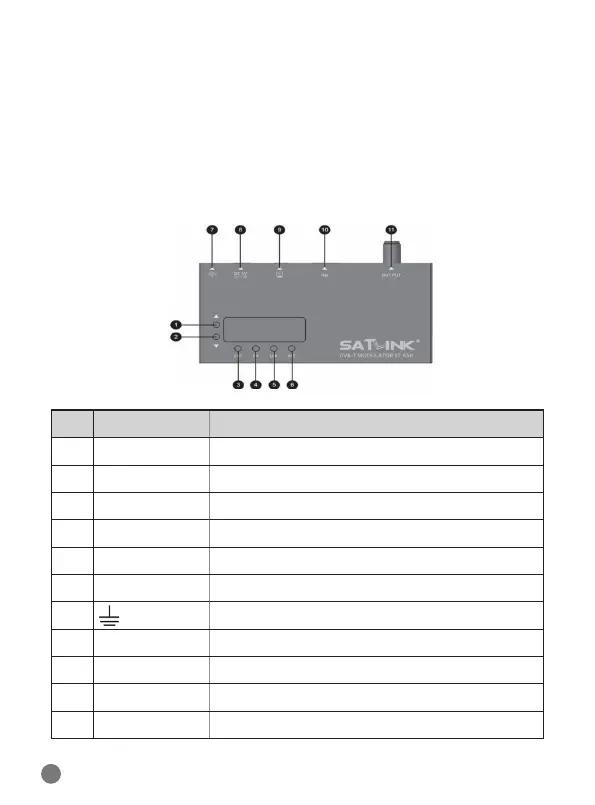

1.3 PRODUCT OVERVIEW & ILLUSTRATION
No Description Function
1
Y
Switch options
2
Z
Switch options
3 CNT Switch to Country option
4 CH Switch to Channel option
5 LCN Switch to LCN option
6 ATT Switch to Attenuation option
7 Ground
8 DC 5V Connect to adaptor input
9 PC Connect to PC for upgrading
10 HD HD signal input port
11 OUTPUT RF output port
