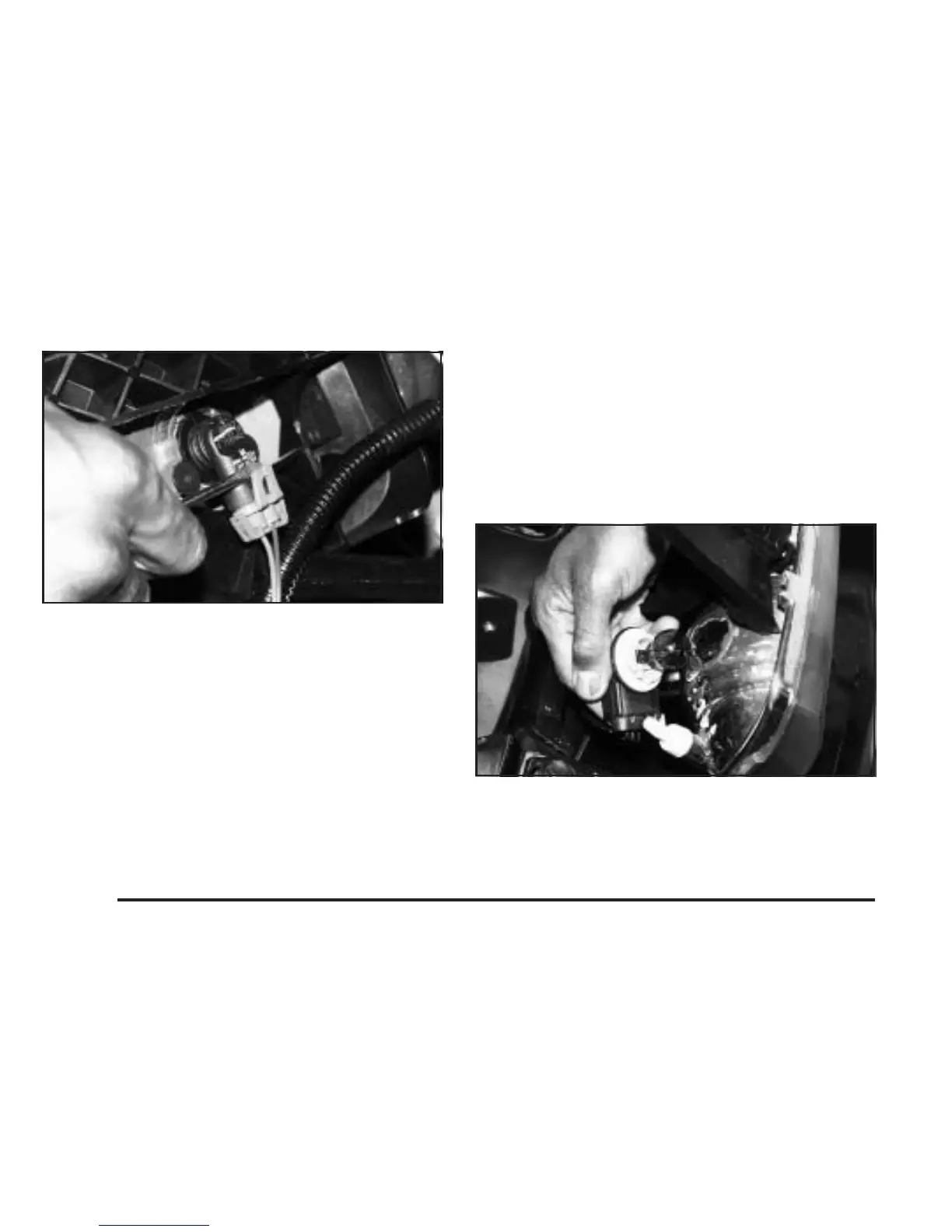

10. Disconnect the electrical connector from the
bulb assembly.
11. Rotate the bulb assembly counterclockwise to
remove it from the housing.
12. Connect the electrical connector to headlamp
bulb assembly.
13. Insert headlamp bulb assembly into headlamp
housing, and rotate clockwise until seated.
14. Lower headlamp into position.
15. Install headlamp assembly fasteners.
Front Turn Signal and
Parking Lamps
1. Follow steps 1 through 9 of the Headlamp bulb
replacement procedure.
2. Rotate the bulb to be replaced counterclockwise to
remove it from the headlamp housing.
3. Pull the bulb out of the bulb socket assembly.
4. Push the new bulb into the bulb socket assembly.
5. Insert the bulb assembly into the headlamp housing.
6. Rotate the bulb assembly clockwise until seated.
5-56
