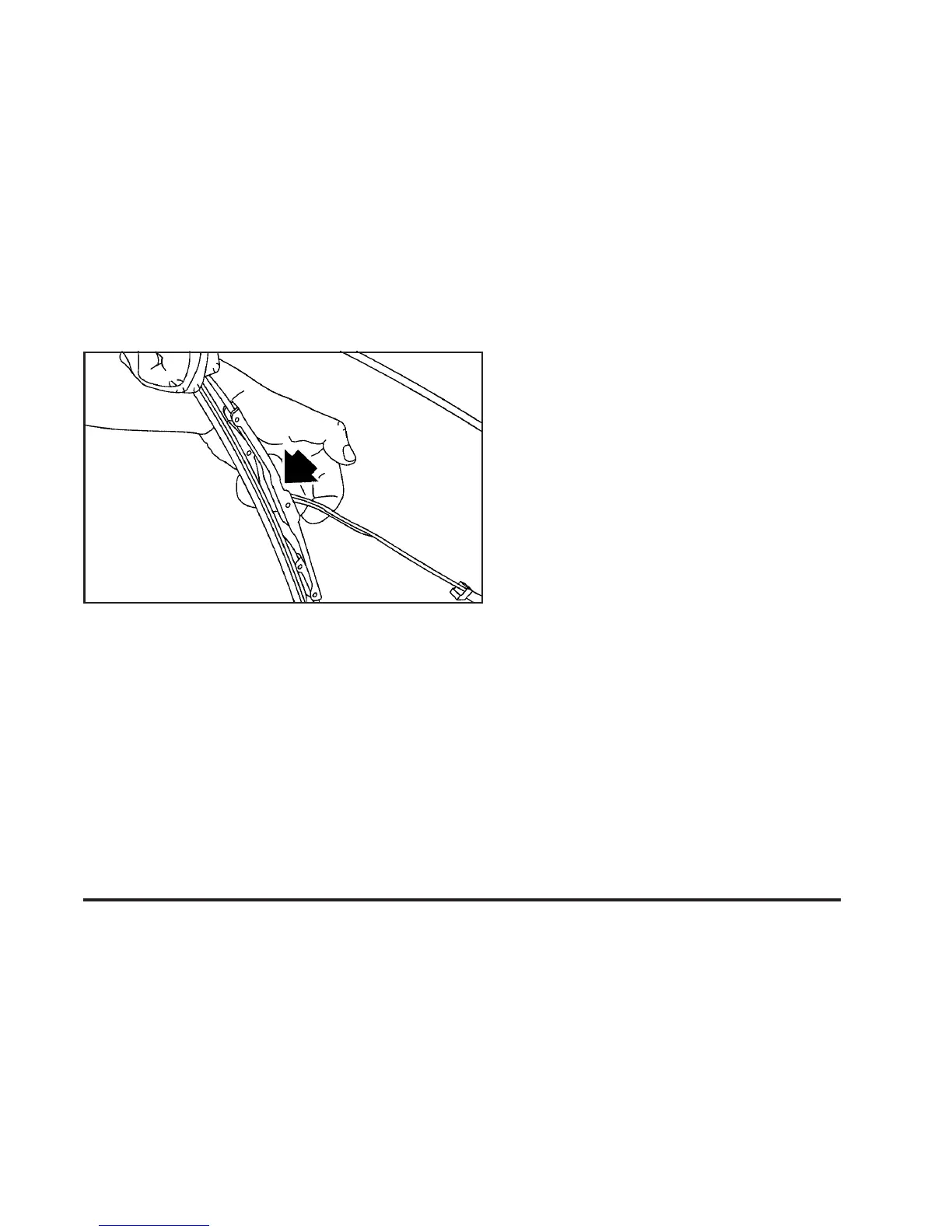

4. Pull up the release clip, located at the connecting
point of the blade and the arm. Then, pull the
blade assembly down toward the glass to remove it
from the wiper arm.
5. Push the new wiper blade securely on the
wiper arm until you hear the release clip “click”
into place.
6. Push the release clip, from Step 4, down to secure
the wiper blade into place.
To replace the backglass mounted wiper blade, do the
following:
1. Turn the rear wiper off.
2. Pull the wiper away from the backglass.
3. Pull up the release clip, located at the connecting
point of the blade and the arm. Then, pull the
blade assembly down toward the glass to remove it
from the wiper arm.
4. Push the new wiper blade securely on the
wiper arm until you hear the release clip “click”
into place.
5. Push the release clip, from Step 3, down to secure
the wiper blade into place.
5-61
