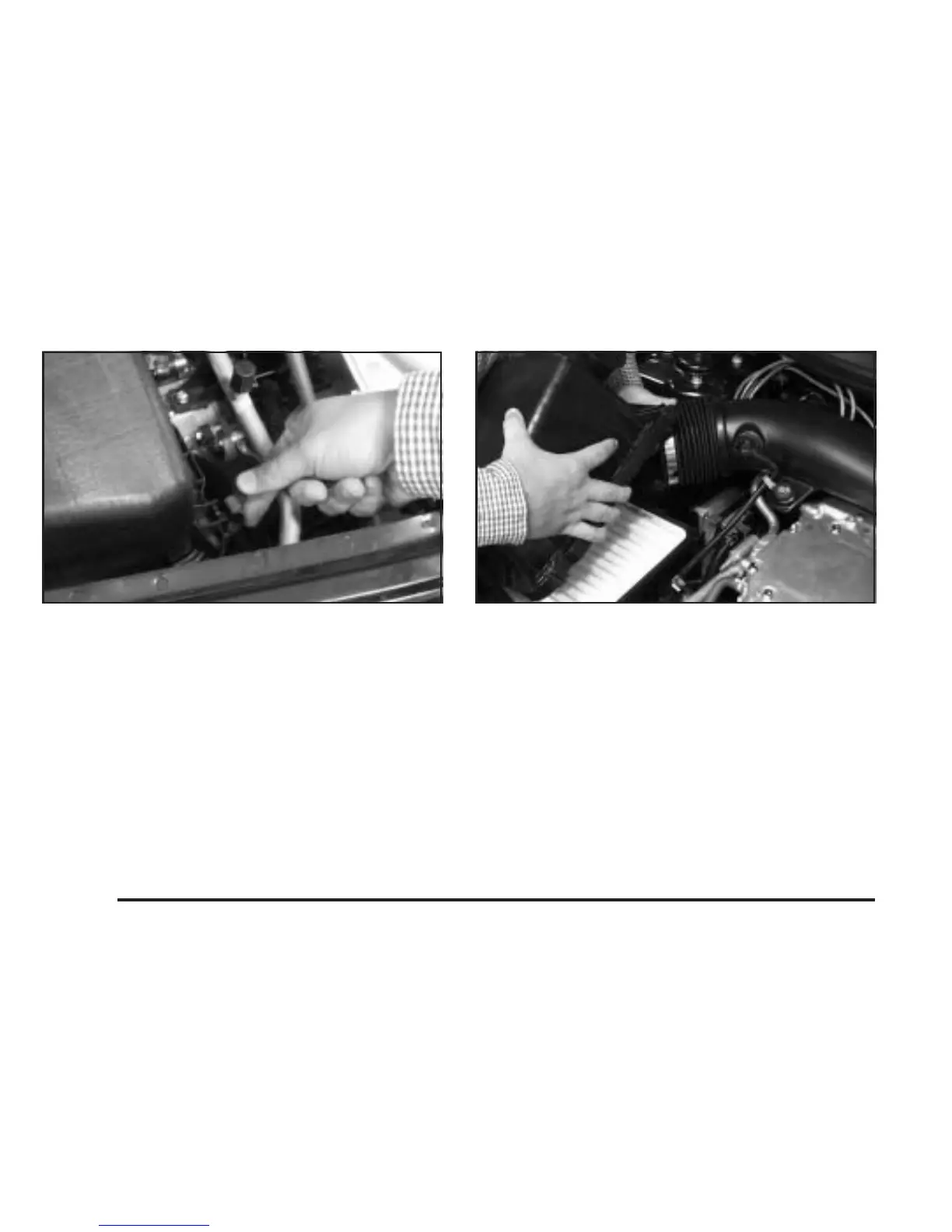

3. Release the clamps on the side of the air cleaner
assembly.
4. Rotate the cover upward to disengage the cover
hinges.
5. Remove the air cleaner cover assembly and air
filter element.
6. Inspect or replace the air filter element.
If the air filter element is dirty, you should replace it.
If it is only dusty, it may be cleaned by blowing
compressed air through it from the clean side.
Make sure you are away from the engine
compartment when cleaning the air filter with
compressed air.
Wipe all dust from inside of the housing and inspect
the air cleaner and air outlet duct for cracks, cuts
and deterioration. The air outlet duct must be
replaced if damaged.
5-22
