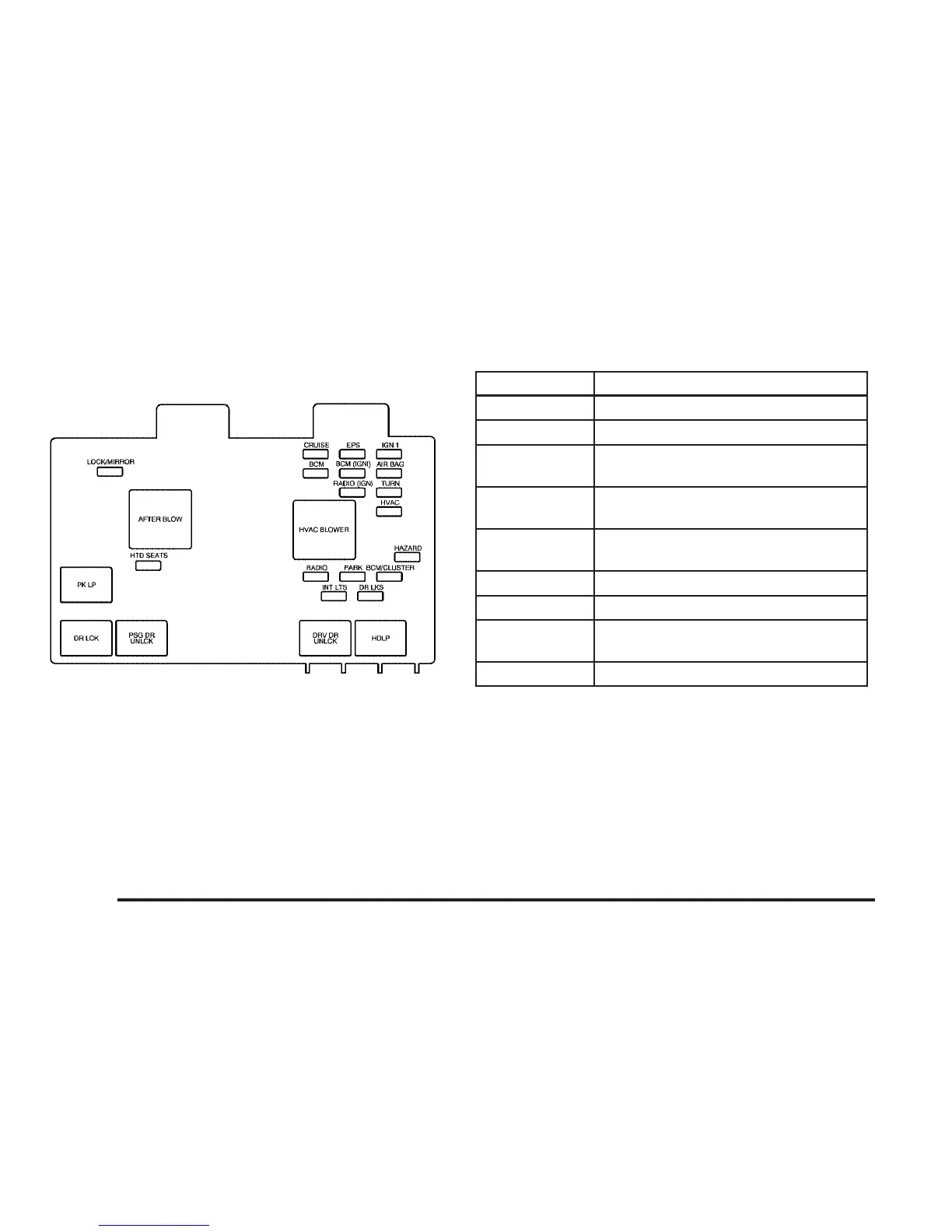

Instrument Panel Fuse Block
The instrument panel fuse block is located on the
passenger’s side of the lower console.
Fuses Usage
CRUISE Cruise Control Switch, Brake Switch
EPS Electronic Power Steering
IGN 1
Instrument Cluster, BTSI Solenoid,
Traction Switch, Fog Lamp Switch
LOCK/MIRROR
Power Door Locks, Power Mirror,
Entry Control
BCM
Body Control Module, Front Wipers,
Windows, Sunroof
BCM (IGN 1) Body Control Module
AIR BAG SDM Module
RADIO (IGN)
Radio, Power Mirror, Premium
Radio Amplifier
TURN Turn Lamps
5-94
