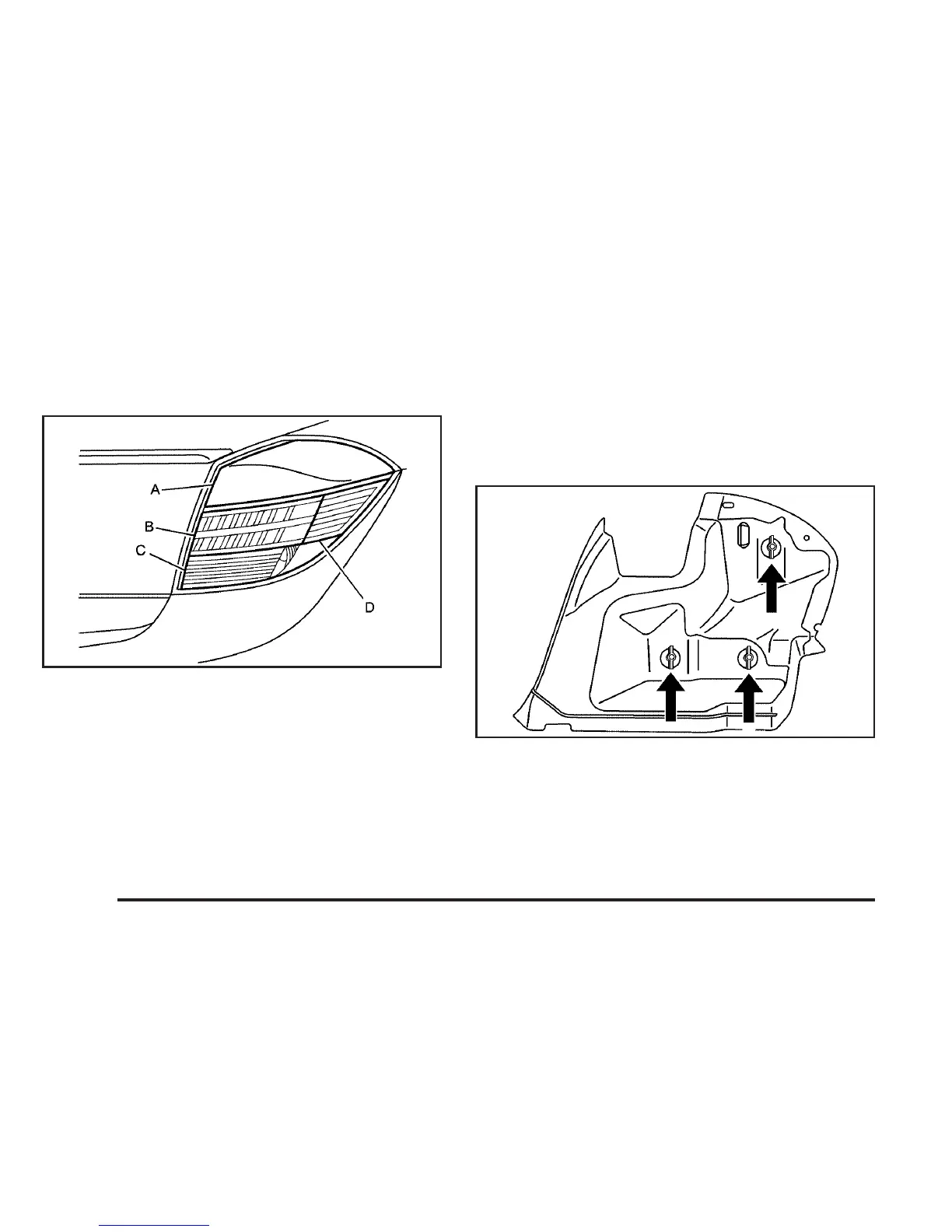

Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps
A. Turn Signal Lamp
B. Stoplamp/Taillamp
C. Backup Lamp
D. Sidemarker Lamp
If a stoplamp or a taillamp needs to be replaced, see
your dealer/retailer.
To replace a sidemarker lamp, turn signal lamp, or a
back-up lamp:
1. Open the trunk. See Trunk on page 2-12.
2. Remove the convenience net.
3. Remove the wing nuts holding the trunk trim and
pull the trunk trim straight back.
4. Turn the three wing nuts counterclockwise that hold
the taillamp assembly counterclockwise.
5-48
